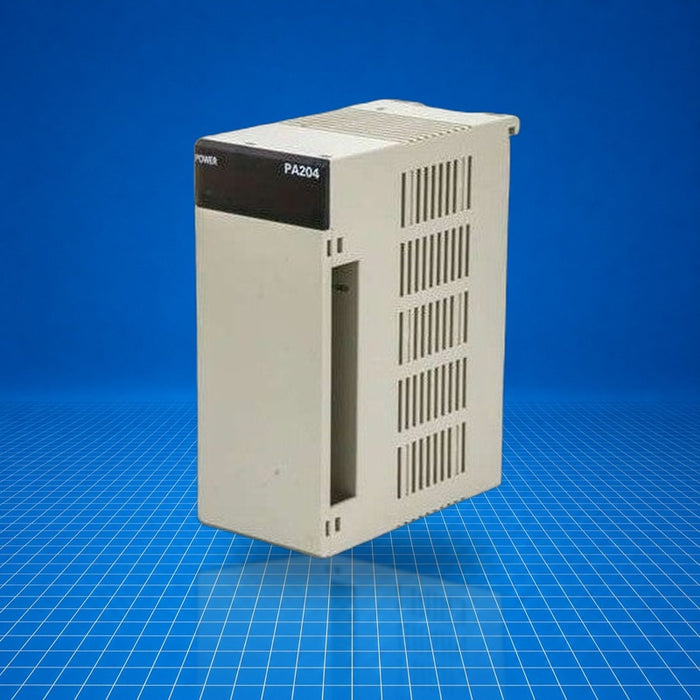

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

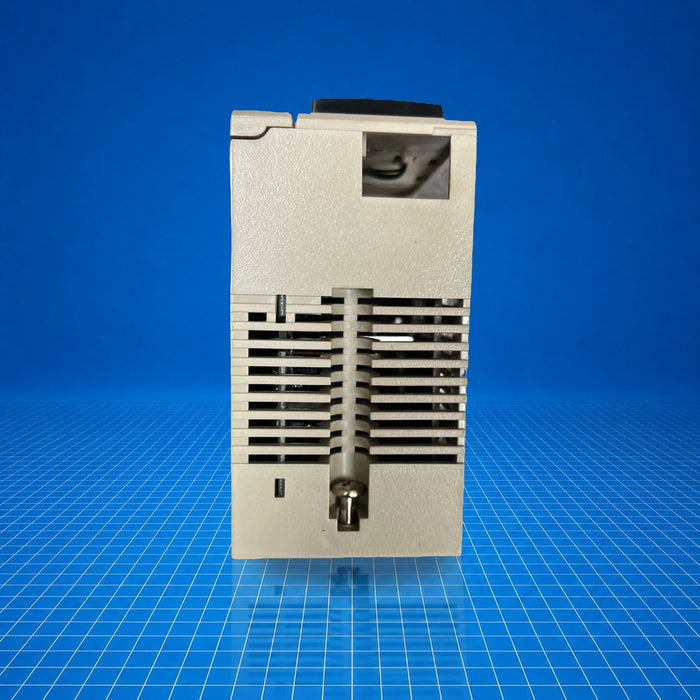

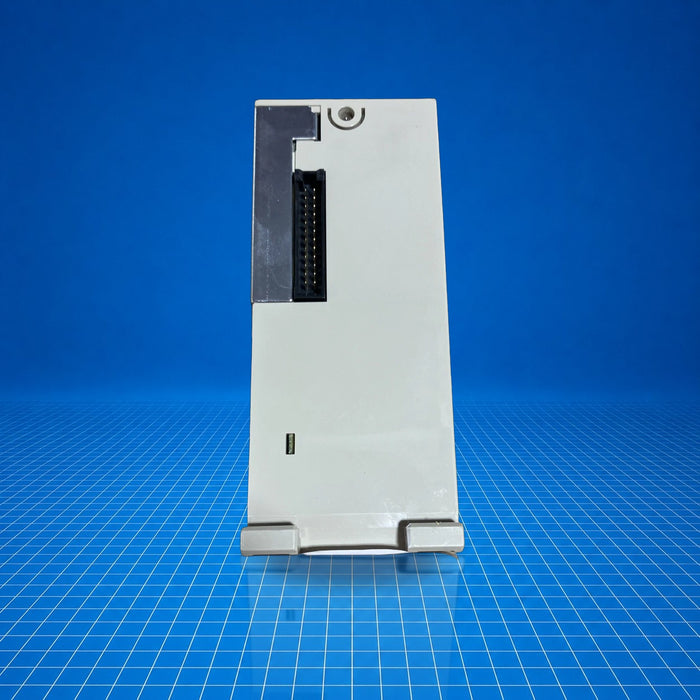

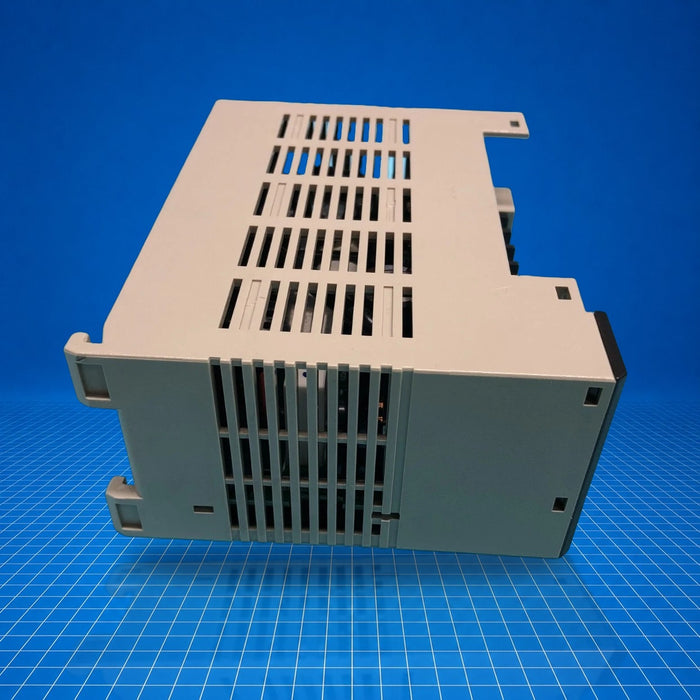

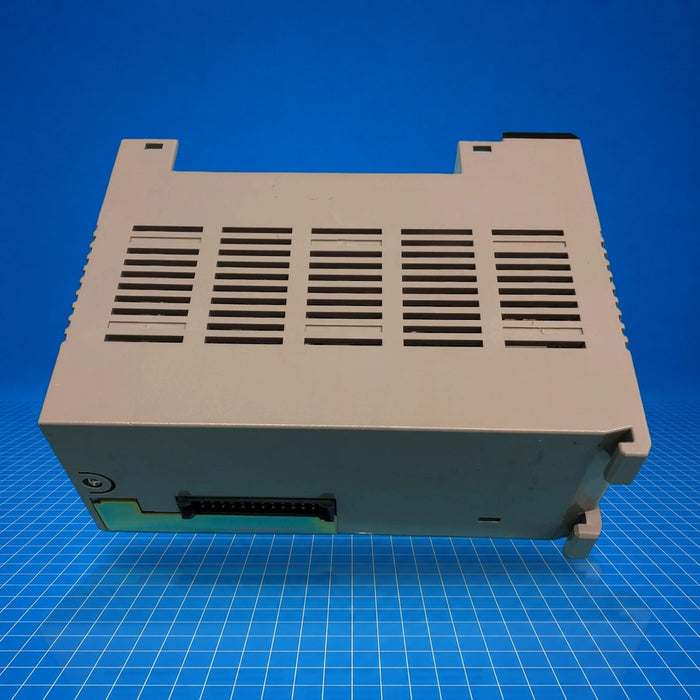

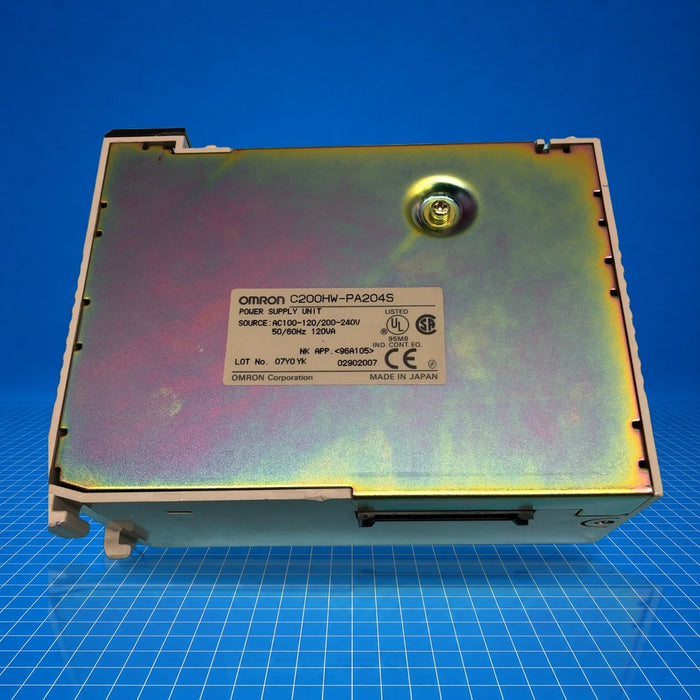

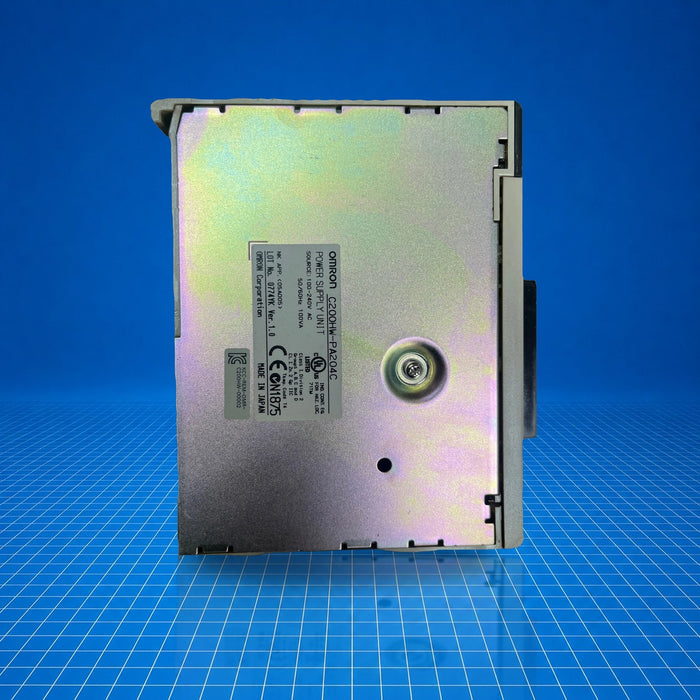

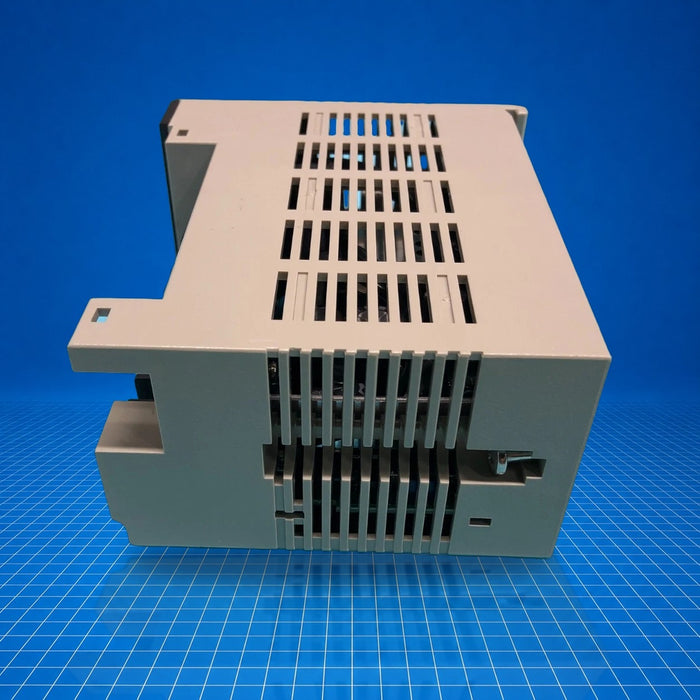

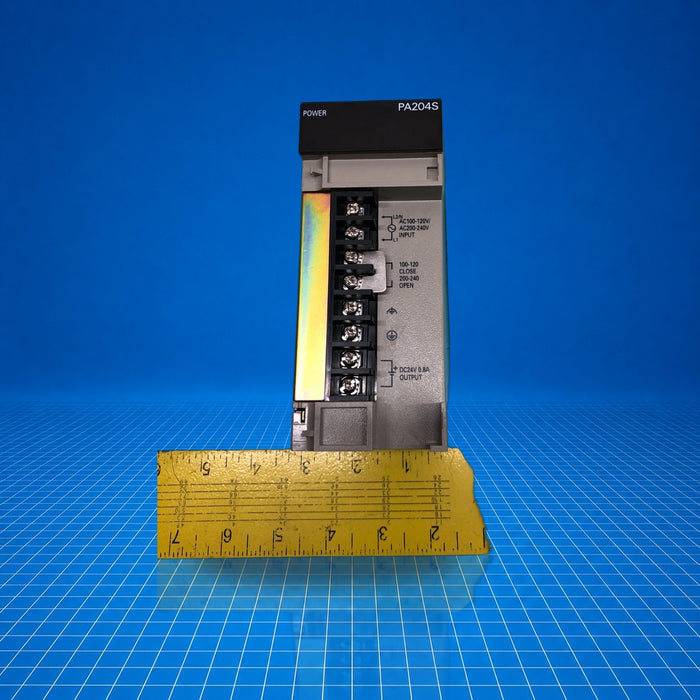

C200HW-PA204 Omron
Original price
$333.00
-
Original price
$400.00
Original price
$400.00
$333.00
-
$400.00
Current price
$400.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The C200HW-PA204 is a power supply unit from the Omron CS1/C200H programmable controller family. Positioned as a rack-mounted backplane module, it converts 100-240 VAC to low-voltage DC to power internal logic and I/O modules. It supports both 100-120 VAC and 200-240 VAC inputs with an extended operating range (85-264 VAC), features peak inrush current protection, insulation safeguards, and complies with industrial safety standards. The C200HW-PA204 ensures stable power delivery to CS-series PLC systems.
Best Suited For
- CS1 or C200H CPU/expansion rack installations
- Systems requiring wide AC input voltage tolerance
- Mid-sized PLC configurations up to 30 W internal load
- Applications needing standard industrial safety certifications
Input voltage range
100-240 VAC (operating 85-264 VAC)
Max power consumption
120 VA
Max output current (5 V)
4.6 A
Max total output power
30 W
Operating temperature
0 to 55 °C
Technical Specifications
I/O & Electrical
Input voltage
100-240 VAC
Operating voltage range
85-264 VAC
Power consumption
120 VA max.
Output current (5 V)
4.6 A
Max total output power
30 W
Inrush current
15 A (100-120 VAC)/30 A (200-240 VAC) at 8 ms (cold start)
Insulation resistance
20 MΩ min. at 500 VDC
Physical & Environmental
Operating temperature
0 to 55 °C
Storage temperature
-20 to 75 °C (excluding battery)
Ambient humidity
10% to 90% (no condensation)
Weight
6 kg max. per rack
Dimensions (2-slot rack)
198.5 × 157 × 123 mm (W × H × D)
Enclosure/mounting
Panel-mounted rack, IP30
Certifications
ULCSAcULusNKLloyd'sCEEN61131-2
Complies with UL, CSA, cULus, NK, Lloyd's, and EC Directives; self-declared EN61131-2.
