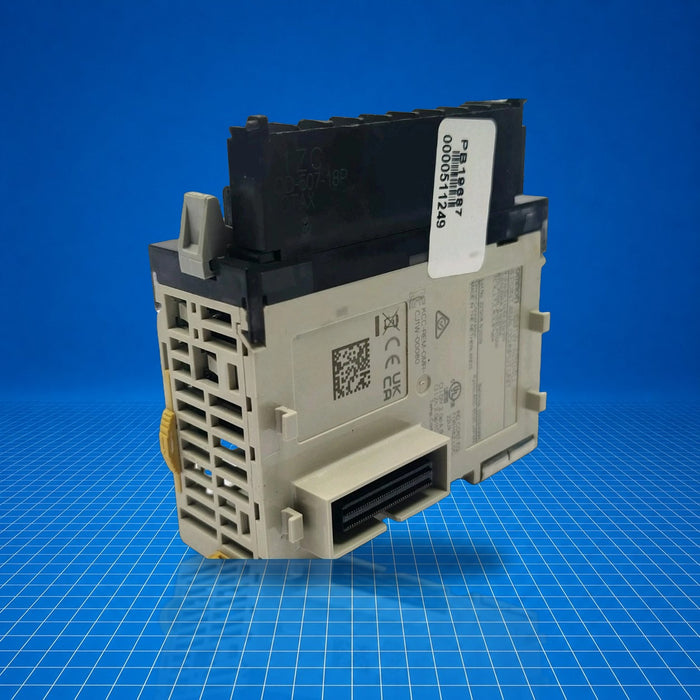

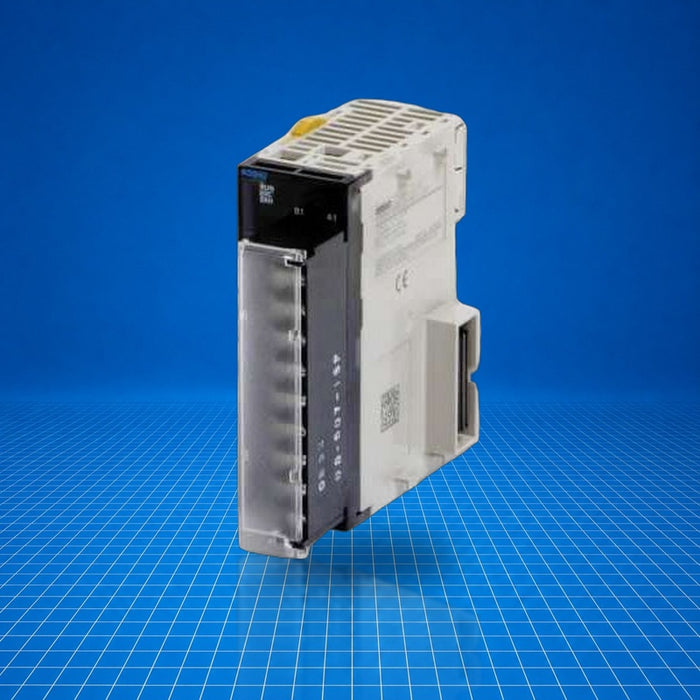

CJ1W-AD04U Omron
Original price
$1,237.50
-
Original price
$1,639.50
Original price
$1,639.50
$1,237.50
-
$1,639.50
Current price
$1,639.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CJ1W-AD04U, part of the Omron CJ-series Special I/O units, is an isolated-type universal analog input module designed for CJ/NJ PLC systems. It provides four independently configurable analog channels-handling platinum resistance thermometers, thermocouples, current, or voltage inputs-and offers process value alarms, error detection, and scaling functions. The module supports isolated input channels and communicates with the CPU via dedicated Special I/O areas. CJ1W-AD04U is used for processing diverse field signals in industrial automation control and monitoring systems.
Best Suited For
- Analog process variable acquisition (temperature, current, voltage)
- Universal input requirements in CJ-series racks
- Signal conditioning with built-in alarms and scaling
- Stacked CPU or expansion rack installations
Input channels
4
Input types
Resistance thermometer, thermocouple, voltage, current
Isolation
Yes (between inputs and controller, and between inputs)
Current consumption
320 mA at 5 V DC
Weight
150 g max.
Technical Specifications
I/O & Electrical
Number of inputs
4
Input types supported
Pt100/Pt1000/JPt100 (3-wire); thermocouples K,J,T,L,R,S,B; 4-20 mA, 0-20 mA; 1-5 V, 0-5 V, 0-10 V
Maximum rated input
Voltage ±15 V; Current ±30 mA
Input impedance
Temperature ≥10 kΩ; Voltage ≥1 MΩ; Current 250 Ω
Resolution (voltage/current)
1/12 000
Accuracy at 25 °C
Voltage/current ±0.3 % FS ±1 digit; Pt RTD ±(0.3 % of PV or ±0.8 °C) ±1 digit; Thermocouple ±(0.3 % of PV or ±1.5 °C) ±1 digit
Temperature coefficient
±100 ppm/°C (full scale)
Conversion time
250 ms/4 inputs
Warm-up time
30 min
Communication & Power
CIO words (operation data)
10 words per unit
DM words (settings)
100 words per unit
Unit number range
0 to 95
Max units per system
40 (within power/current limits)
Current consumption
320 mA at 5 V DC
Physical & Environmental
Dimensions (W×H×D)
31 × 90 × 65 mm
Weight
150 g max.
Mounting
CPU rack or expansion rack; terminal block detachable
Isolation test
Insulation resistance 20 MΩ at 500 V DC; Dielectric strength 500 V AC, 1 min, ≤1 mA leakage
