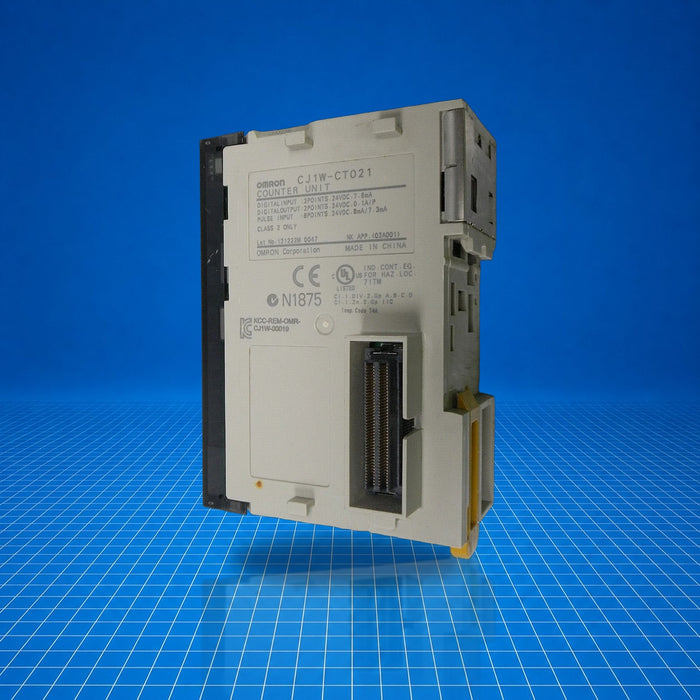

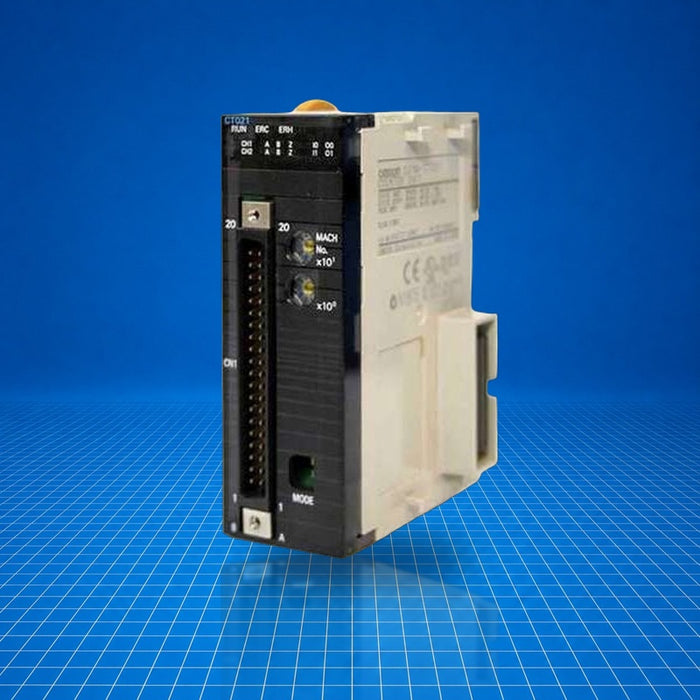

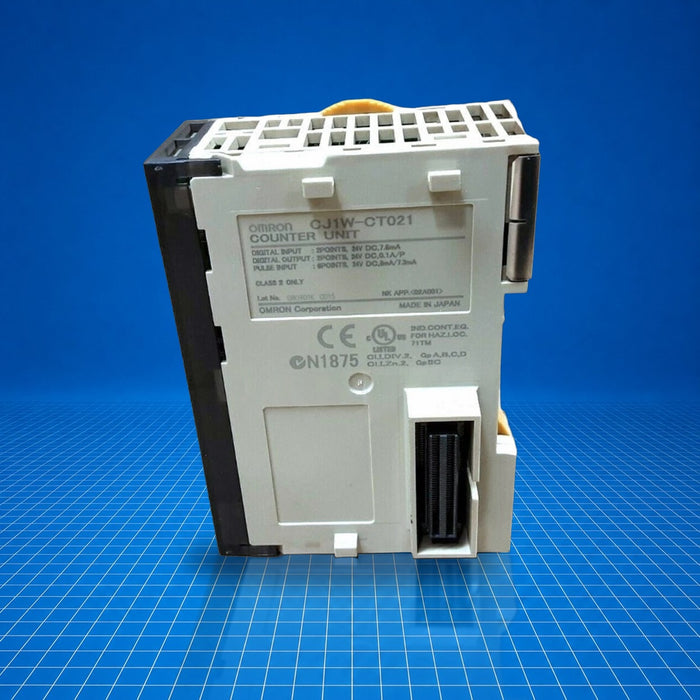

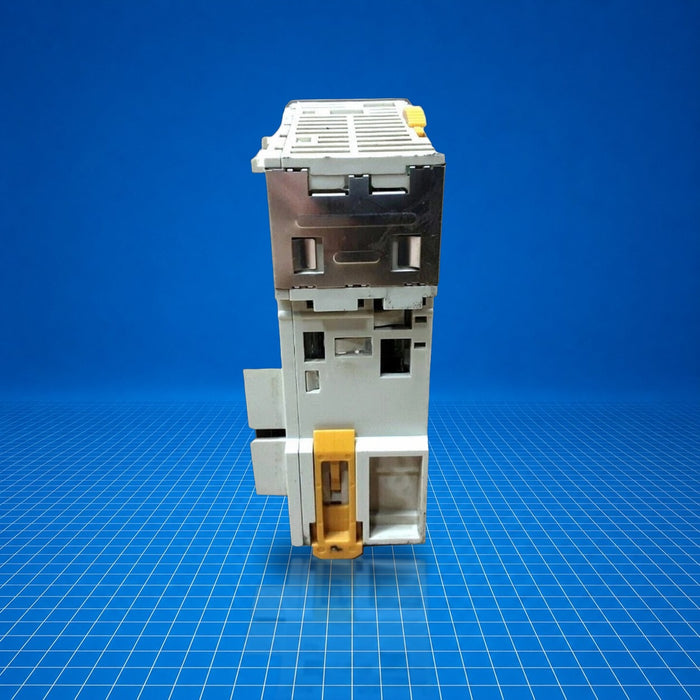

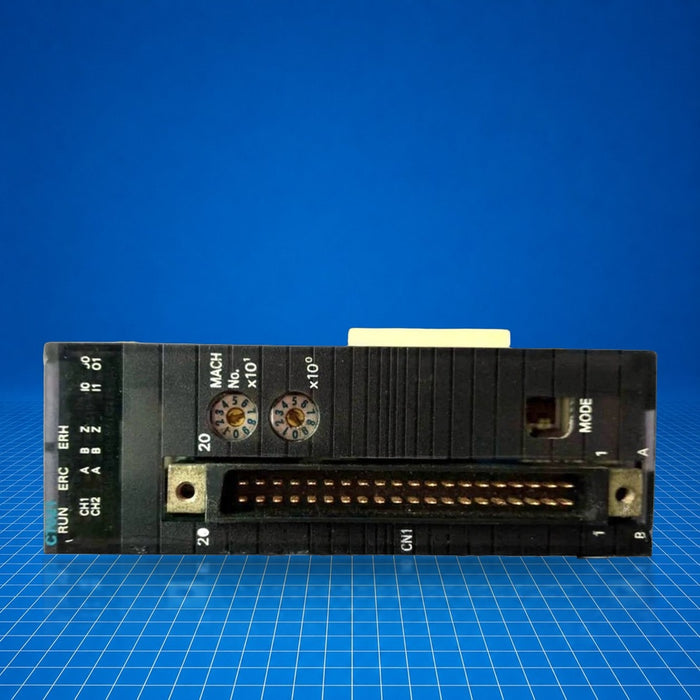

CJ1W-CT021 Omron

Name: CJ1W-CT021 Omron
Brand: Omron
SKU: CJ1W-CT021
Price: 559.96 USD
Availability: InStock

$559.96 - $1,182.50

$559.96

$559.96 - $1,182.50

$559.96

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (4) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Omron distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The CJ1W-CT021 is an Omron CJ-series special I/O unit that adds two independent high-speed counters to a CJ- or NJ-series programmable controller rack. It supports multiple counter modes (simple, circular, linear), phase A/B/Z inputs, and configurable digital inputs/outputs. The unit enables pulse counting, rate measurement, output gating, and interrupt functions, suitable for motion feedback and position monitoring applications within industrial control systems. CJ1W-CT021 integrates directly into the PLC rack and communicates with the CPU over the I/O bus.

Best Suited For

High-speed pulse counting from rotary encoders
Motion feedback in positioning or indexing systems
Edge or phase-based event detection
Rate measurement and logging for speed monitoring

Counters

2

Max input frequency

500 kHz

Digital outputs

2 + 30 soft outputs

Current consumption

280 mA @ 5 V

Technical Specifications

I/O & Electrical

Counter input voltage

24 V DC (19.6-26.4 V), 12 V DC (9.8-13.2 V), 5 V DC (4.5-5.5 V); RS-422 line driver

Counter input current (typical)

8 mA (24 V), 7.6 mA (RS-422)

Digital input voltage

24 V DC (19.6-26.4 V), 12 V DC (9.8-13.2 V), 5 V DC (4.5-5.5 V), RS-422 line driver

Digital input current (typical)

8 mA (24 V), 7 mA (12 V), 11 mA (line driver)

Digital outputs

Open collector NPN/PNP selectable

Output voltage range

10.2-26.4 V

Maximum switching current

46 mA @ 10.2 V to 100 mA @ 26.4 V (200 mA max/common)

Communication & Power

Data exchange areas

CIO-bits 200000-255915, CIO-words 2000-2959; DM-words 20000-29599 (400 DM-words)

Physical & Environmental

Operating temperature

0 to 55 °C

Storage temperature

-20 to 75 °C

Operating humidity

10% to 90% without condensation

Dimensions (W×H×D)

31×90×65 mm

Weight

100 g

Certifications

Certified to UL, cULus (as indicated by UC1), NK and Lloyd, and meets CE directives. Specific conditions may apply per region.
