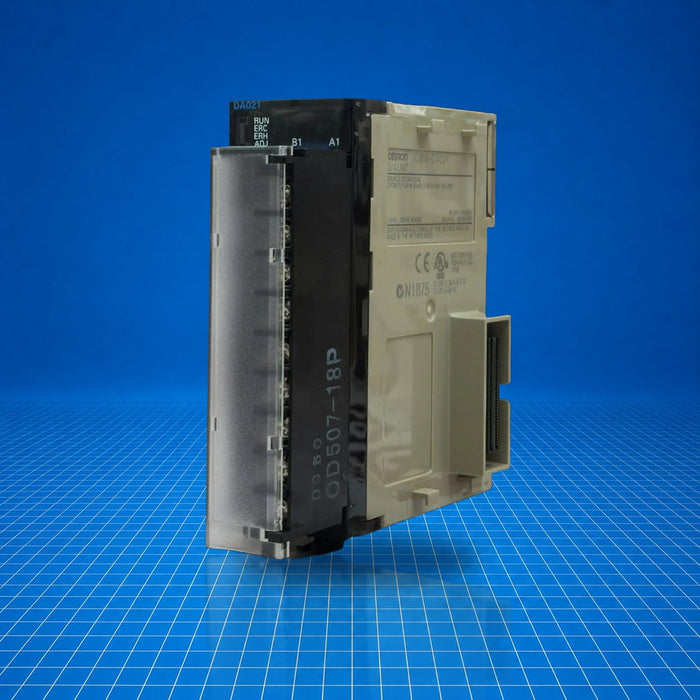

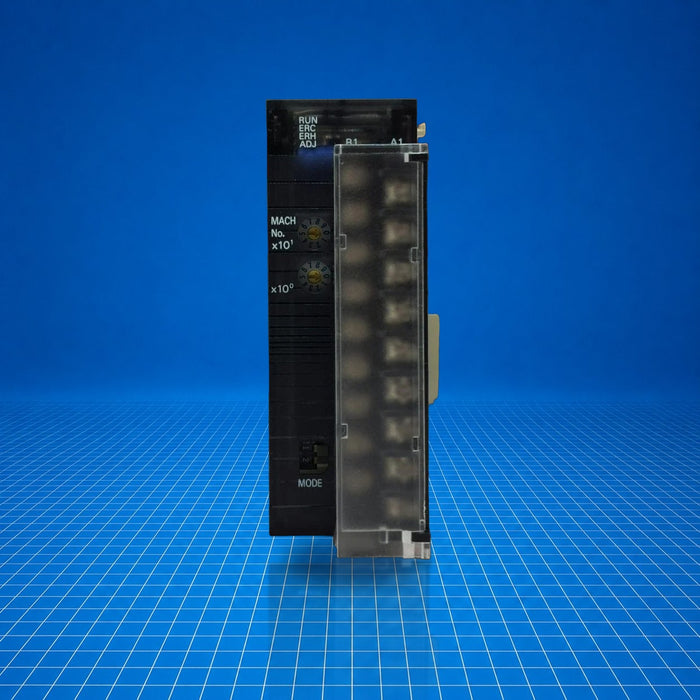

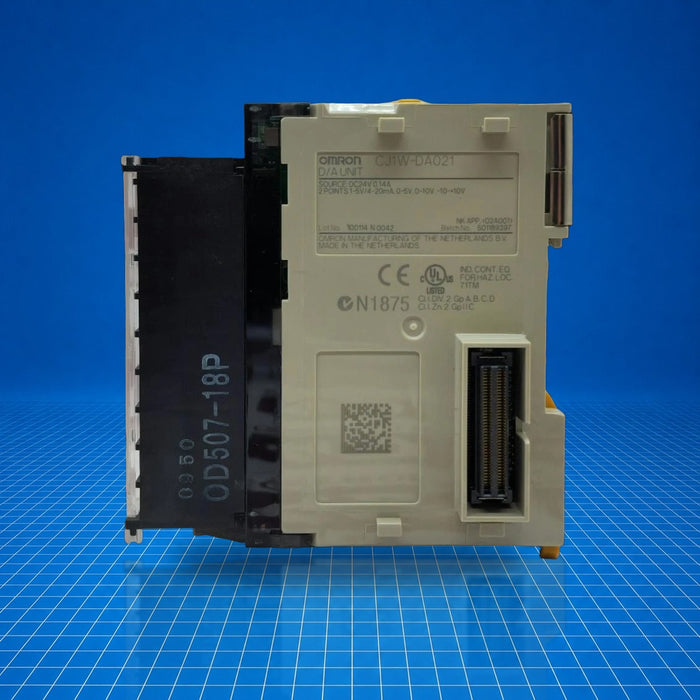

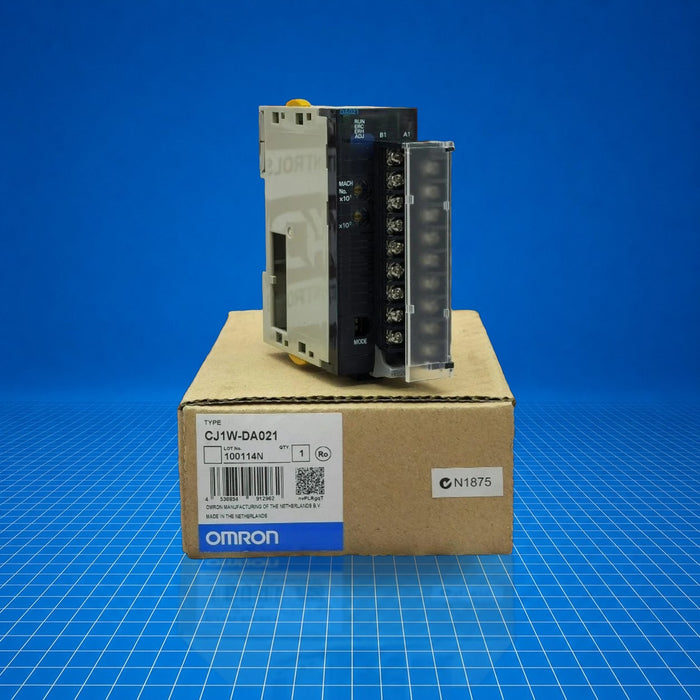

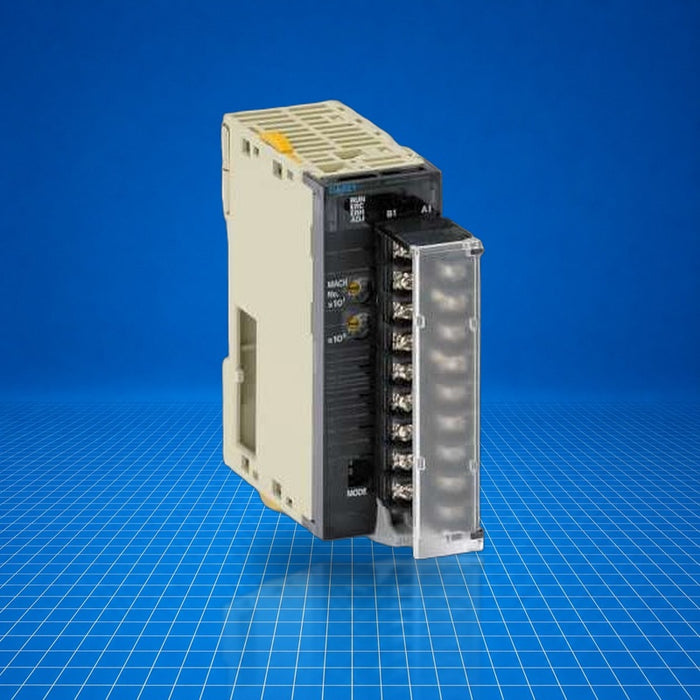

CJ1W-DA021 Omron

Name: CJ1W-DA021 Omron
Brand: Omron
SKU: CJ1W-DA021
Price: 2176.21 USD
Availability: InStock

$1,179.75 - $2,176.21

$2,176.21

$1,179.75 - $2,176.21

$2,176.21

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Omron distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The CJ1W-DA021 is an Omron CJ-series analog output special I/O unit intended for CJ-series PLC systems. It provides two analog outputs and interfaces via a removable terminal block in a compact form factor. In control systems, it enables precise analog signal generation for process control, actuation, or signaling and is typically deployed in manufacturing process lines, motion control systems, and instrumentation loops. The CJ1W-DA021 accepts digital set values from the CPU and converts them into analog voltage or current signals.

Best Suited For

Precise analog signal generation in process control
Machine I/O requiring dual analog outputs
Actuator or analog instrument control
Integration in CJ-series PLC racks

Analog outputs

2

Output ranges

-10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 4 to 20 mA

Resolution

4,000 (full scale)

D/A conversion period

1 ms/point

Technical Specifications

I/O & Electrical

Number of analog outputs

2

Output signal ranges

-10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 4 to 20 mA

Output impedance (voltage)

0.5 Ω max.

Max output current (voltage)

12 mA per point

Maximum load resistance (current)

600 Ω

Communication & Power

Power consumption

5 V DC, 120 mA max.

External power supply

24 V DC +10 % / -15 % (inrush: 20 A max, pulse width ≥ 1 ms)

Physical & Environmental

Dimensions (W × H × D)

31 × 90 × 65 mm

Weight

150 g max.

Isolation

Photocoupler between I/O and Controller (no isolation between I/O signals)

Certifications

ULcULusCE

Conforms to general specifications for CJ-series. Standards include UL, cULus, CE; consult Omron for details.
