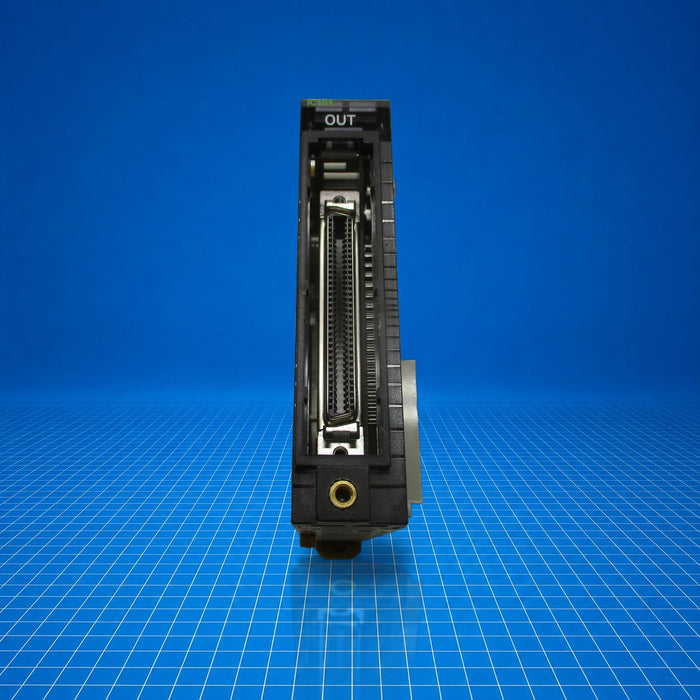

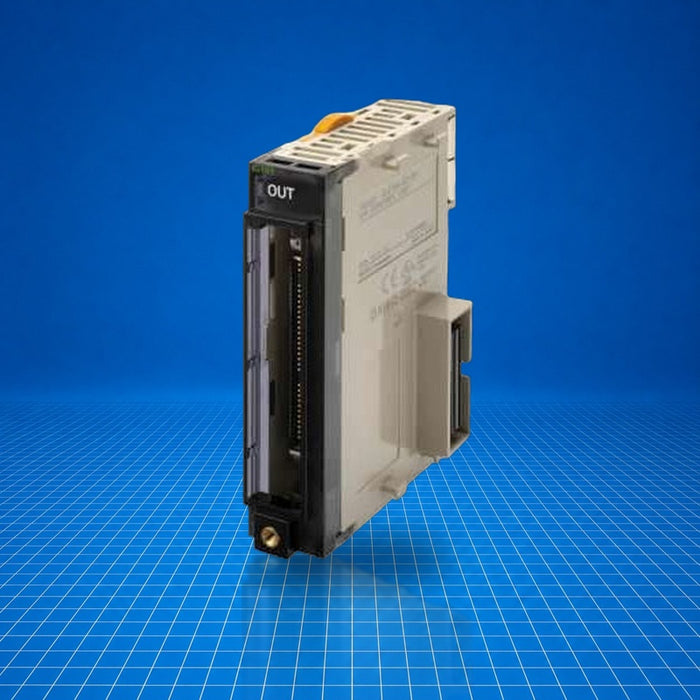

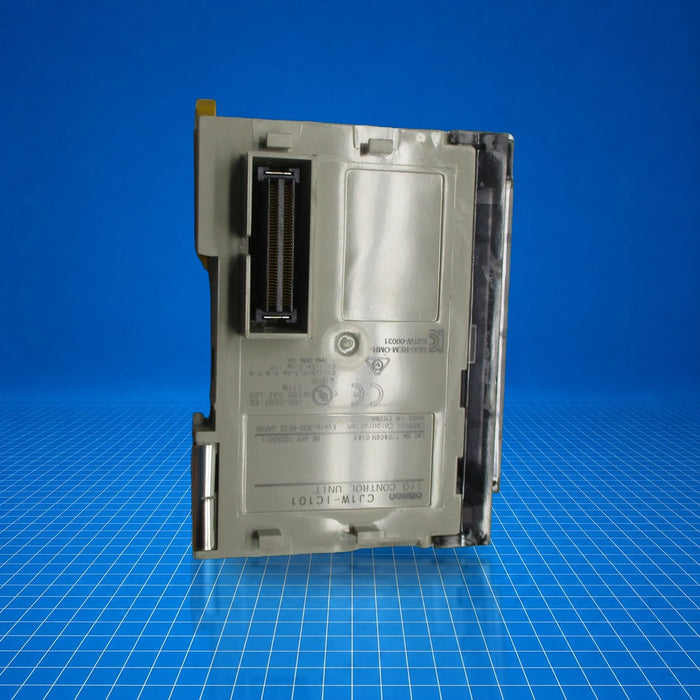

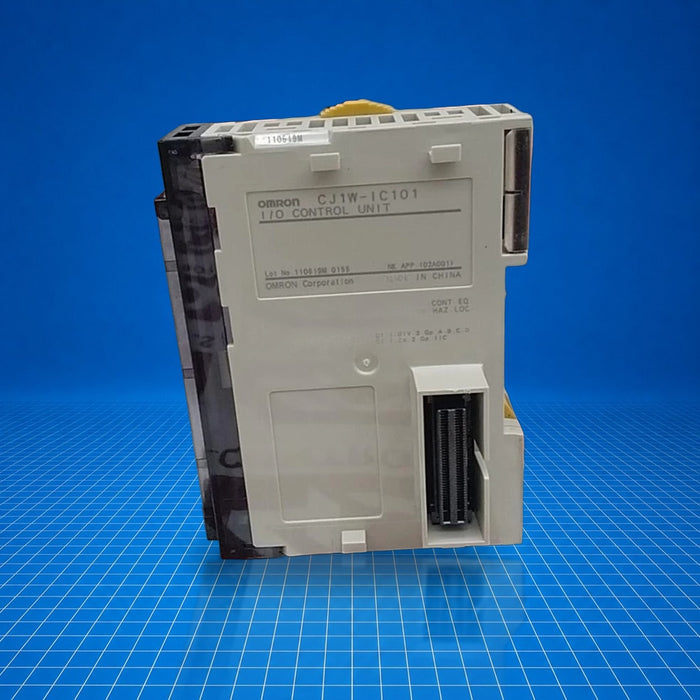

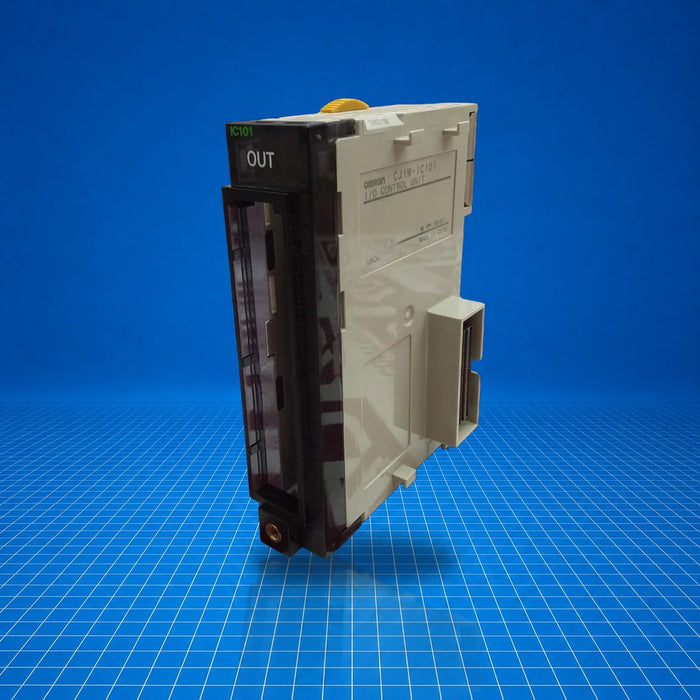

CJ1W-IC101 Omron
Original price
$450.00
-
Original price
$456.00
Original price
$450.00
$450.00
-
$456.00
Current price
$450.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CJ1W-IC101 is an I/O Control Unit in Omron's CJ1/CJ-Series programmable controller platform. It serves as the interface between the CPU rack and one or more I/O expansion racks, enabling modular system expansion. The unit mounts directly to the right of the CPU unit when expansion racks are used, and it requires a matching I/O Interface Unit (CJ1W-II101) on each expansion rack. CJ1W-IC101 supports system scalability in distributed I/O architectures.
Best Suited For
- Expansion rack connection on CJ1 CPU rack
- Distributed I/O configurations
- NJ-Series CPU racks when expanding I/O
Mounting width
20 mm
Weight
70 g max
Current consumption (5 V)
0.020 A
Standards
UC1, N, L, CE
Technical Specifications
I/O & Electrical
Input voltage for control logic
5 V DC (supplied via CPU rack)
Communication & Power
Current consumption
0.020 A at 5 V DC
Physical & Environmental
Mounting location
Right of CPU Unit on CPU rack when expansion racks are used
Mounting width
20 mm
Weight
70 g max
Certifications
cULus (Class I Div 2)NKLloyd'sCE
Conforms to Omron-specified standards: UC1 (cULus Class I Division 2), N (NK), L (Lloyd), CE. Contact Omron for details on hazard approvals.
