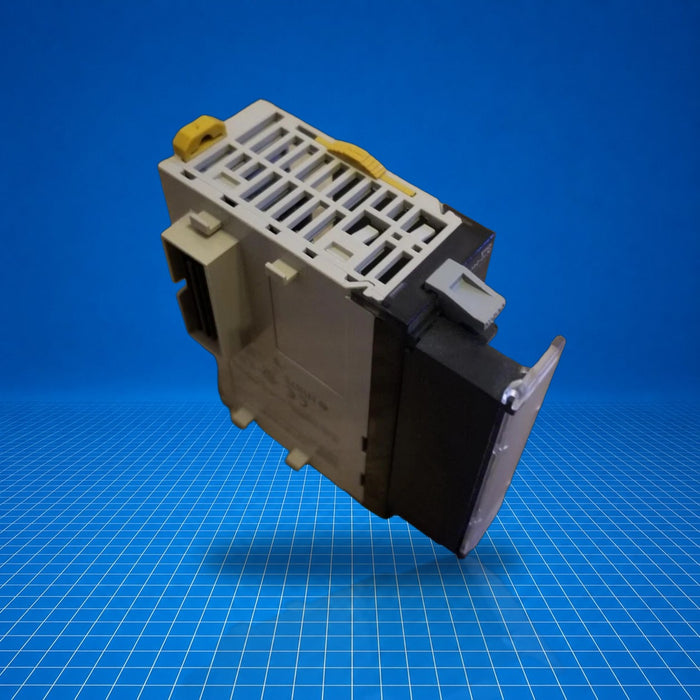

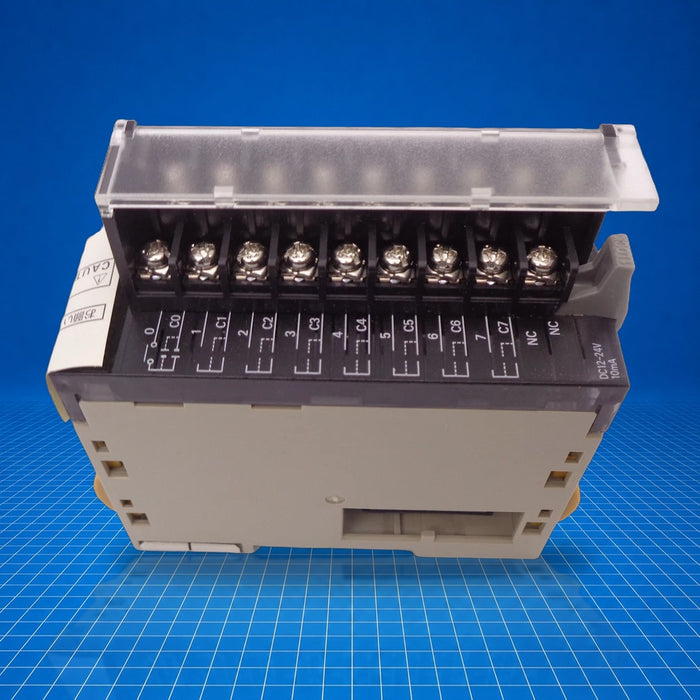

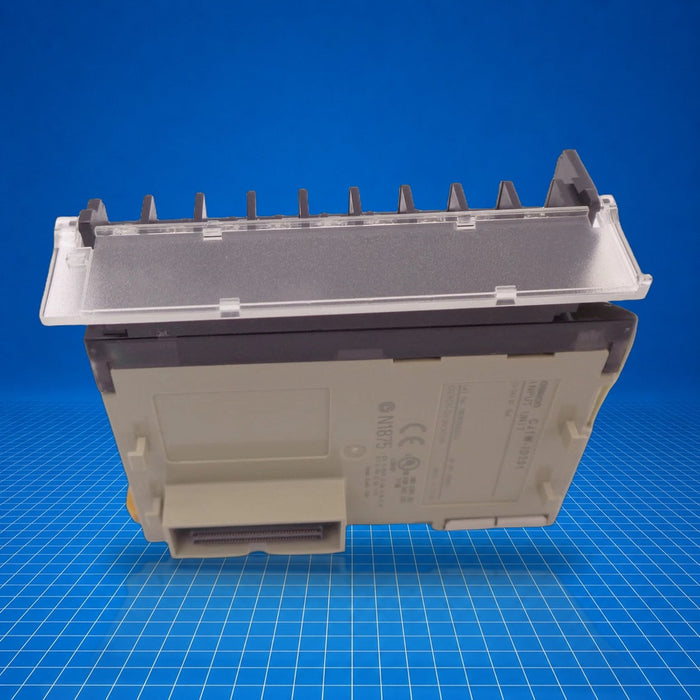

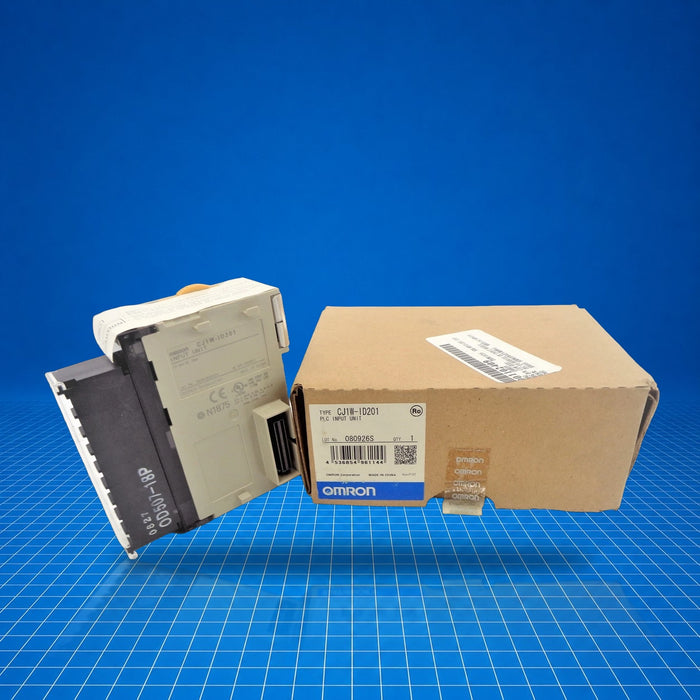

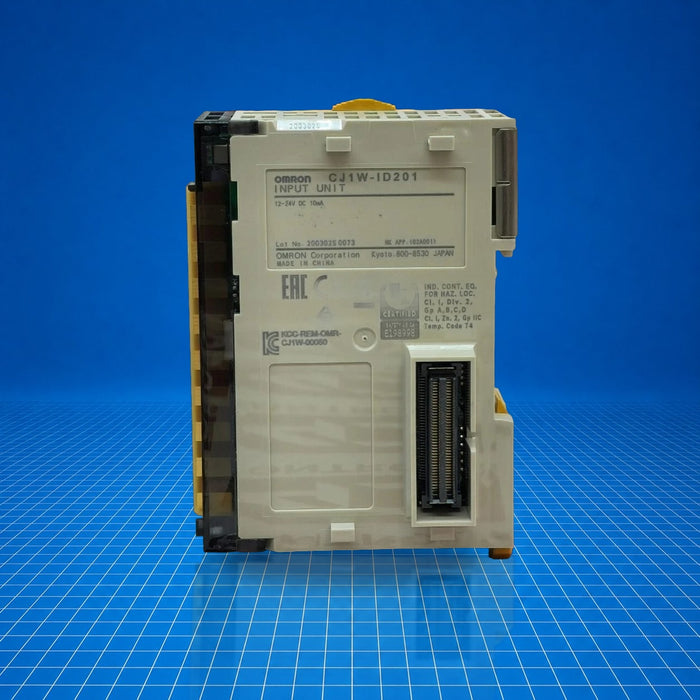

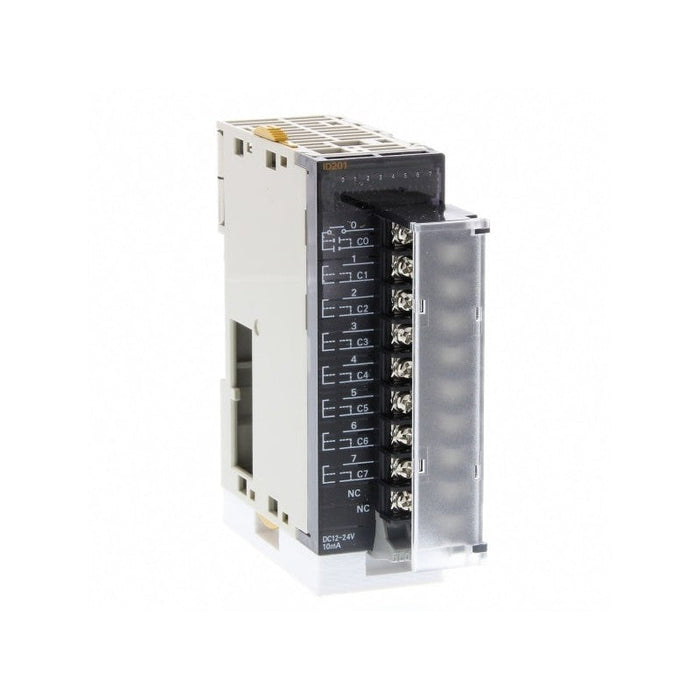

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
CJ1W-ID201 Omron
Original price
$450.00
-
Original price
$756.25
Original price
$756.25
$450.00
-
$756.25
Current price
$756.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CJ1W-ID201 is an 8-point DC input unit in the Omron CJ1 series of modular I/O, intended for use with CJ/NJ programmable controllers. It reads eight independent DC input signals (12-24 V DC) via removable terminal block and relays them to the PLC system. Typical uses include machine control, signal monitoring, and expanding digital input capacity in industrial automation systems.
Best Suited For
- Expansion of CJ/NJ controller digital inputs
- Machine-level signal acquisition
- Use in 12-24 V DC input environments
- Independent-circuit input monitoring
Input points
8
Voltage range
10.2-26.4 V DC
Response time
8.0 ms (max)
Current consumption
80 mA (max)
Weight
110 g (max)
Technical Specifications
I/O & Electrical
Rated input voltage
12-24 V DC
Input voltage range
10.2-26.4 V DC
Input impedance
2.4 kΩ
Input current (typical)
10 mA (at 24 V DC)
ON voltage / ON current
≥ 8.8 V DC / ≥ 3 mA
OFF voltage / OFF current
≤ 3 V DC / ≤ 1 mA
ON response time
8.0 ms max (configurable 0-32 ms)
OFF response time
8.0 ms max (configurable 0-32 ms)
Communication & Power
Internal current consumption
80 mA max
Physical & Environmental
Insulation resistance
≥ 20 MΩ (100 V DC)
Dielectric strength
1,000 VAC for 1 min (≤ 10 mA leakage)
Weight
110 g max
Certifications
UL Division 2cULusNKLloyd'sCE
Standards: UL (Division 2)/cULus (Class I Division 2), NK, Lloyd's, CE (per Omron lineup information).
