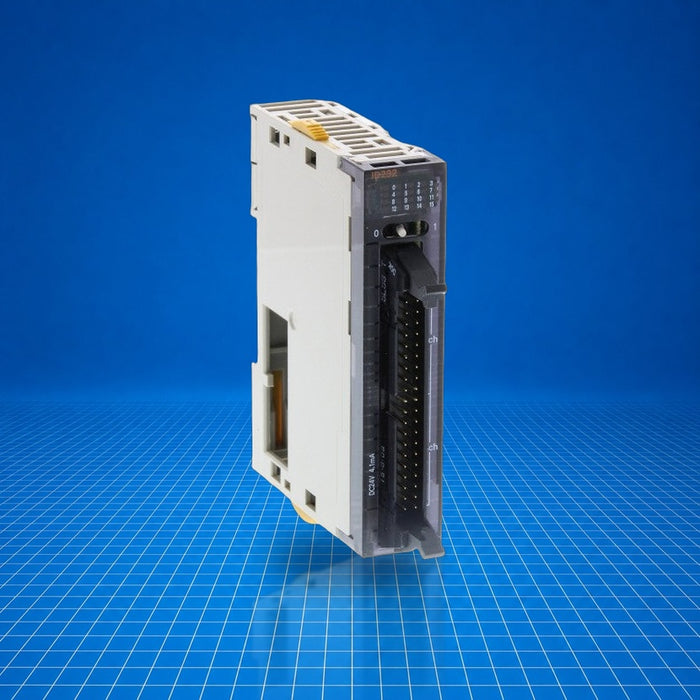

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

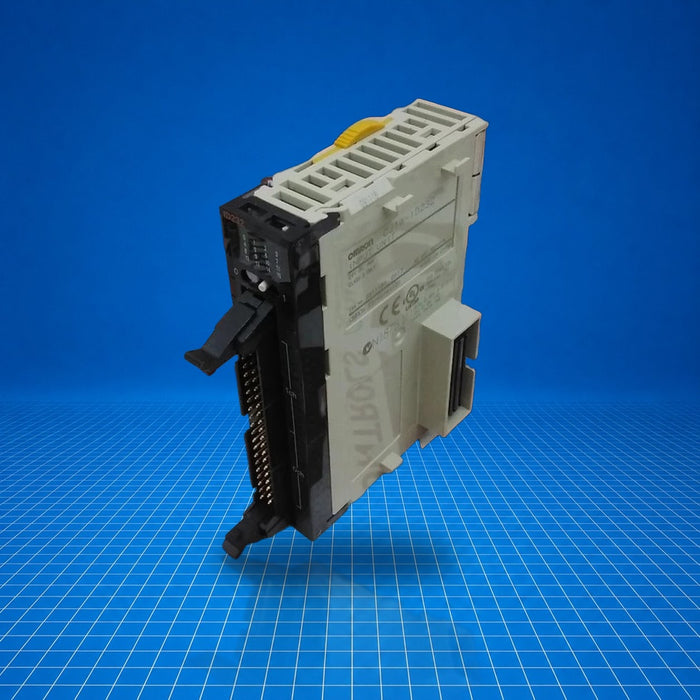

CJ1W-ID232 Omron
Original price
$580.00
-
Original price
$804.51
Original price
$804.51
$580.00
-
$804.51
Current price
$804.51
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CJ1W-ID232 is a DC digital input unit in Omron's CJ1 series of programmable controller basic I/O modules. It provides 32 field input points via a MIL-connector and interfaces with CJ- and NJ-series controllers. Operating at 24 V DC (20.4-26.4 V DC), it accommodates standard industrial signal levels. Its configurable response time supports various automation tasks, such as discrete sensing and status monitoring in manufacturing, packaging, or process systems. CJ1W-ID232 integrates into modular control architectures where compact, precise input acquisition is required.
Best Suited For
- Discrete signal detection in CJ/NJ PLC systems
- Compact DIN-rail control panels
- High-density input locations requiring MIL-connector
- Industrial status and limit switch scanning
Digital inputs
32 points
Input voltage range
20.4-26.4 V DC
Typical input current
4.1 mA @ 24 V DC
Connector type
MIL connector
Max response time
8.0 ms
Technical Specifications
I/O & Electrical
Number of inputs
32
Input voltage range
20.4-26.4 V DC
Typical input current
4.1 mA (at 24 V DC)
Input impedance
5.6 kΩ
ON voltage / current
19.0 V DC min. / 3 mA min.
OFF voltage / current
5 V DC max. / 1 mA max.
ON response time
8.0 ms max (configurable 0-32)
OFF response time
8.0 ms max (configurable 0-32)
Communication & Power
Internal current consumption
90 mA max
Commons configuration
16 points/common, 2 circuits
Physical & Environmental
Weight
70 g max
Insulation resistance
20 MΩ min (100 V DC)
Dielectric strength
1 000 VAC, 1 min, 10 mA max leakage
Certifications
UC1 (cULus Div. 2)N (NK)L (Lloyd's)CE
