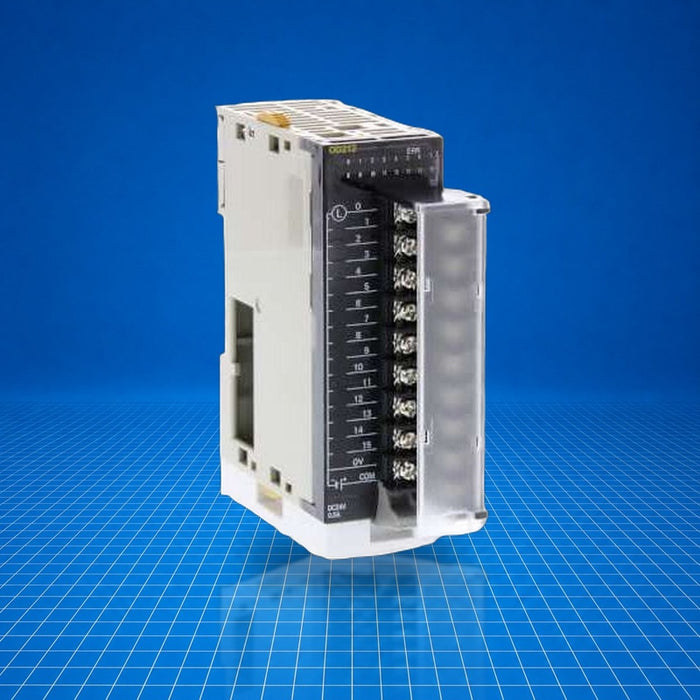

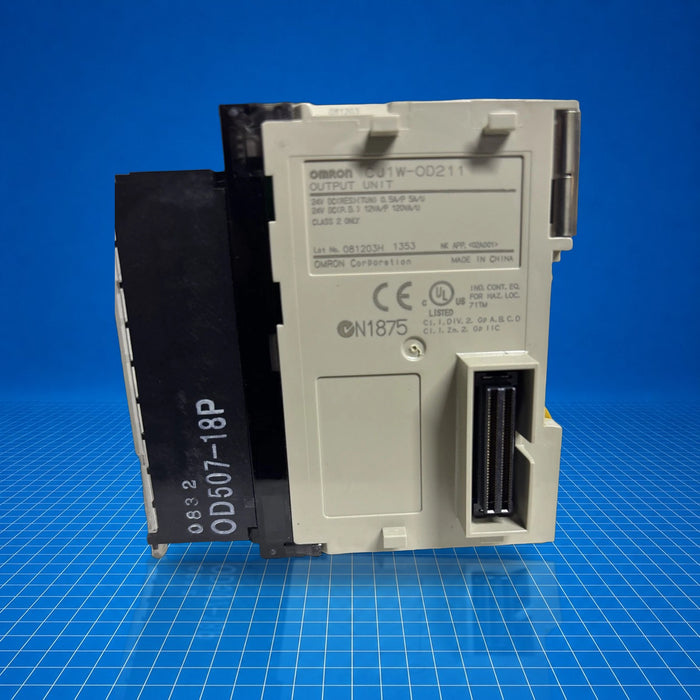

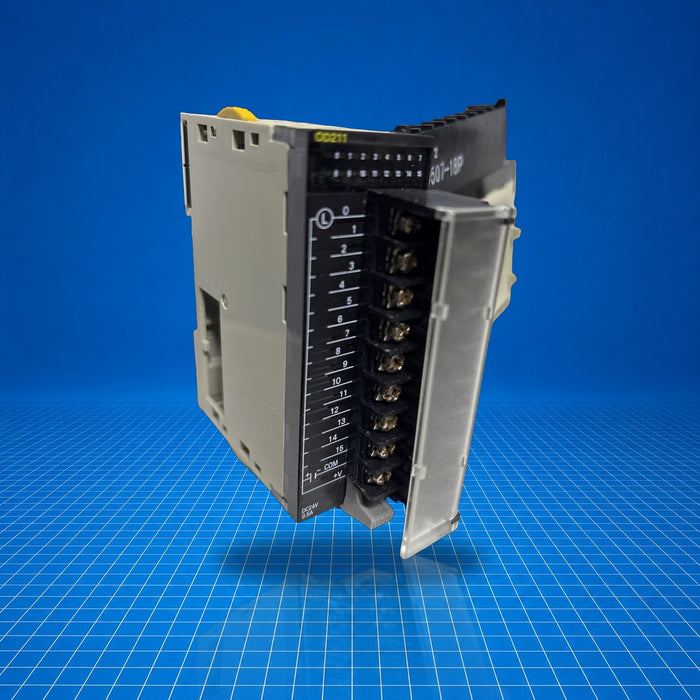

CJ1W-OD211 Omron
Original price
$500.00
-
Original price
$540.00
Original price
$500.00
$500.00
-
$540.00
Current price
$500.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CJ1W-OD211 is a 16-point sinking transistor output unit in the Omron CJ1 I/O series. It installs on the CJ1 backplane and provides DC sinking outputs to drive external loads. In a control system, it delivers discrete output signals, typically used for actuating devices such as solenoids, indicator lights, or relays. It is suited to high-speed output tasks in manufacturing, packaging, material handling, and machine automation. CJ1W-OD211 shifts output functions from the CPU to improve modular system control.
Best Suited For
- Discrete output switching in CJ1-based PLC racks
- High-speed control of solenoids or indicator loads
- On-machine installation within limited space
- Expanding output capacity in existing CJ1 control systems
Output points
16 sinking transistor outputs
Rated voltage
24 V DC
Max current per point
0.5 A
Installation
Removable terminal block
Technical Specifications
I/O & Electrical
Rated voltage
24 V DC
Operating load voltage range
10.2 to 26.4 V DC
Maximum load current per point
0.5 A
Maximum load current per unit
5.0 A
Maximum inrush current per point
4.0 A, 10 ms
Leakage current
0.1 mA max
Residual voltage
1.5 V max
ON response time
0.1 ms max
OFF response time
0.8 ms max
Internal current consumption
100 mA at 5 V DC max
External power supply
10.2 to 26.4 V DC, 20 mA min
Communication & Power
Output type
Sinking transistor
Physical & Environmental
Weight
110 g max
Mounting
Backplane (CJ1 rack)
External connection
Removable terminal block
Number of circuits
1 (16 points/common)
Certifications
ULcULusCE
Meets UL, cULus, CE and related standards per Omron lineup listing.
