Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

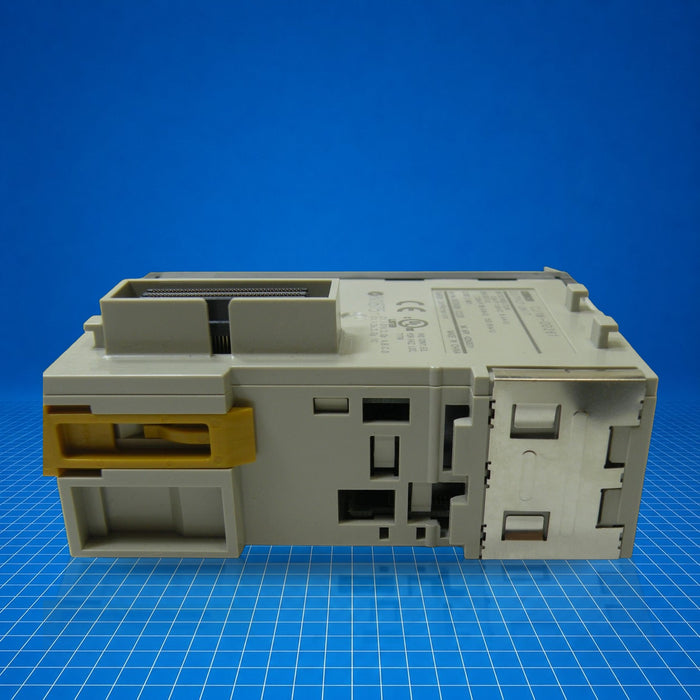

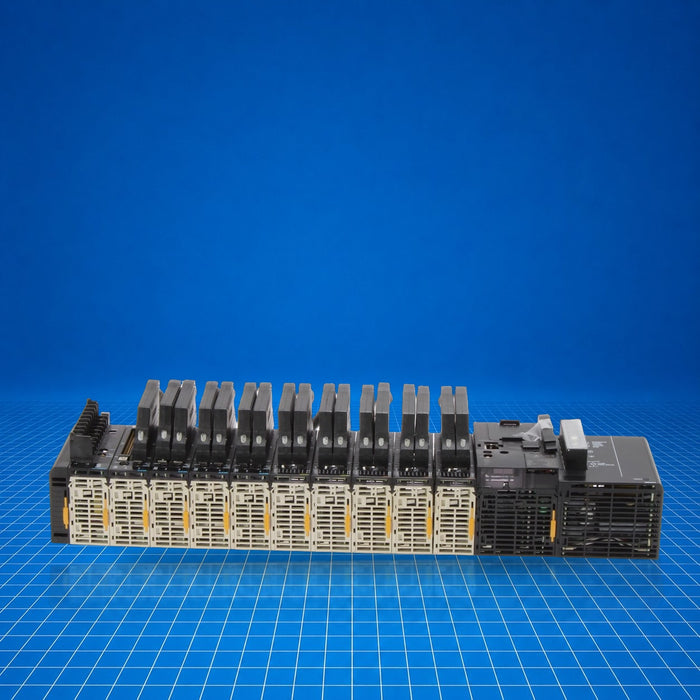

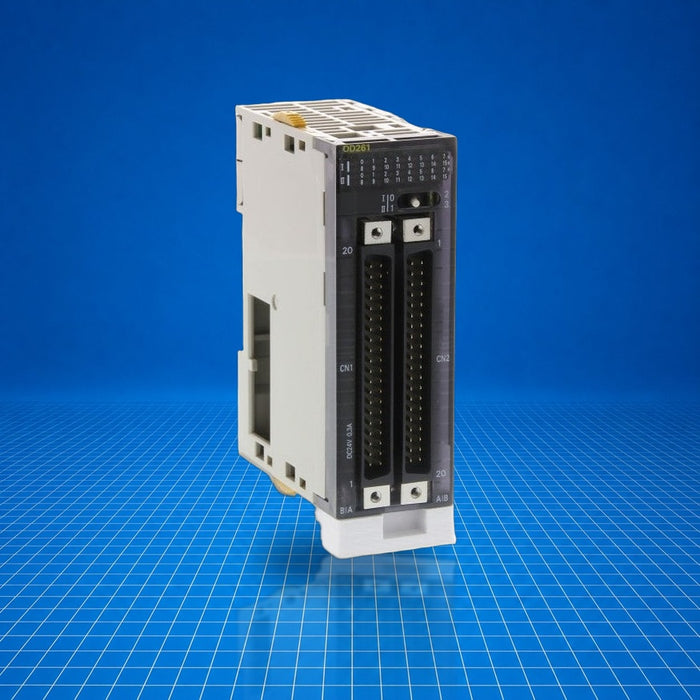

The CJ1W-OD261 is a 64-point sinking (NPN) transistor output unit in the Omron CJ1 series of basic I/O modules. It interfaces with CJ/NJ PLCs via two 40-pin Fujitsu/OTAX-compatible connectors and provides discrete switching of DC loads. It supplies switching outputs in automation systems such as machine control, discrete manufacturing, and status signal distribution. CJ1W-OD261 integrates into modular control racks, offering high-density digital control.
Best Suited For
- Discrete output switching in CJ1/NJ controller racks
- Machine-level actuator control (e.g. indicator lamps, valves, solenoids)
- Applications with limited panel space requiring high channel density
- Integration with Fujitsu/OTAX connector wiring systems
Outputs
64 sinking (NPN)
Output voltage range
10.2-26.4 V DC
Per-point load current
0.3 A

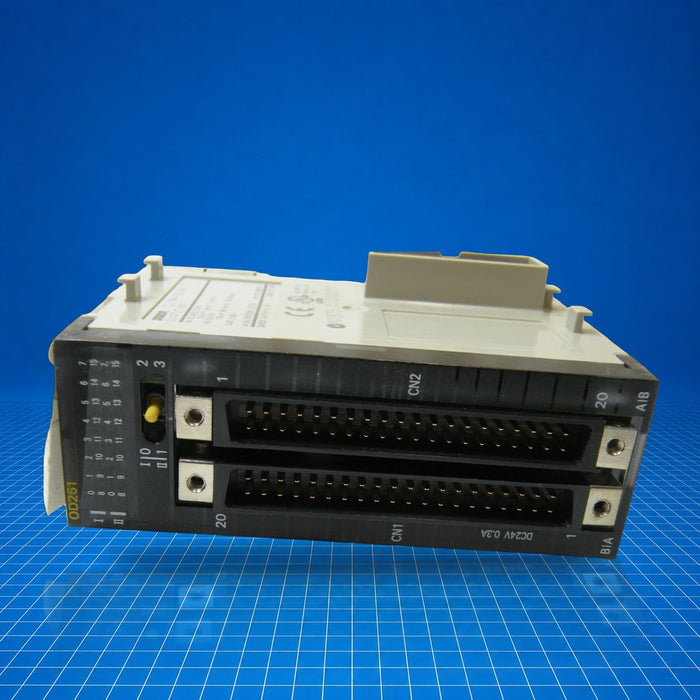

Connector type
2 × 40-pin Fujitsu/OTAX
Weight
110 g max.
Technical Specifications
I/O & Electrical
Output points
64
Output type
sinking (NPN)
Operating load voltage range
10.2 to 26.4 V DC
Rated voltage
12 to 24 V DC

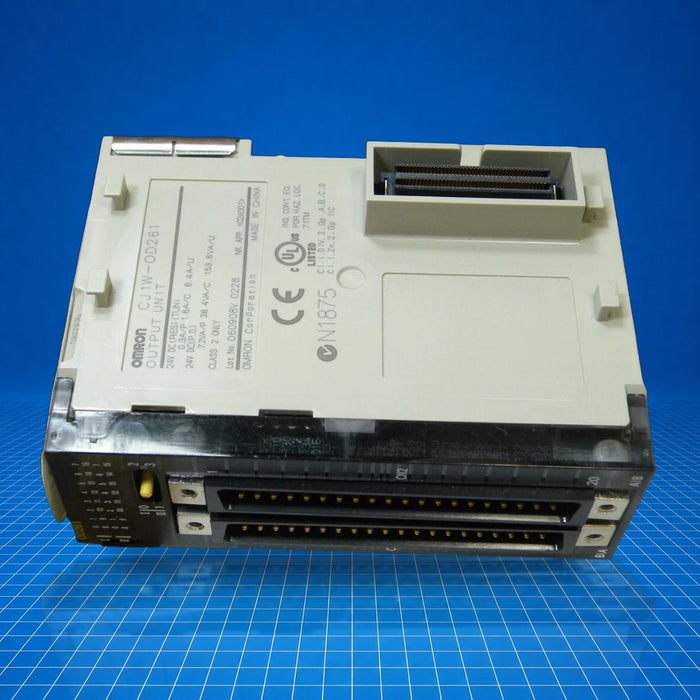

Maximum load current
0.3 A/point, 1.6 A/common, 6.4 A/unit
Maximum inrush current
3.0 A/point, 10 ms max.
Leakage current
0.1 mA max.
Residual voltage
1.5 V max.
ON response time
0.5 ms max.
OFF response time
1.0 ms max.
Communication & Power
Internal power consumption
5 V DC, 170 mA max.
External power supply
10.2 to 26.4 V DC, 50 mA min.
Physical & Environmental
Weight
110 g max.
Connector
2 × 40-pin Fujitsu/OTAX
Insulation resistance
20 MΩ (external terminals to GR, 100 V DC)
Dielectric strength
1,000 VAC for 1 min at ≤10 mA leakage

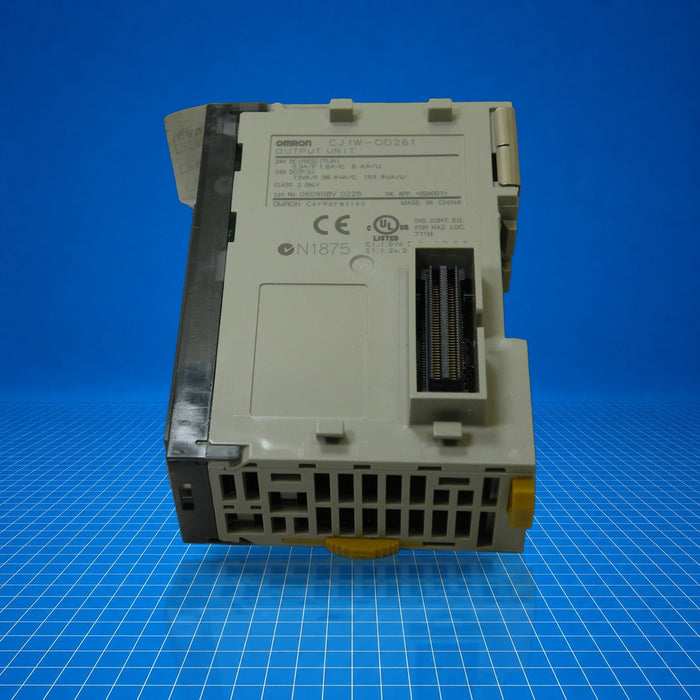

Certifications
UC1NLCE
