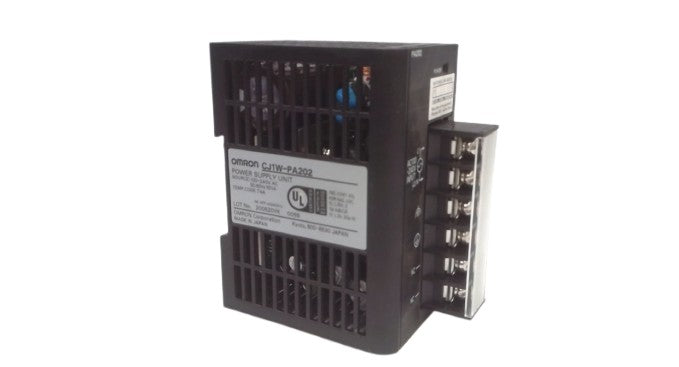

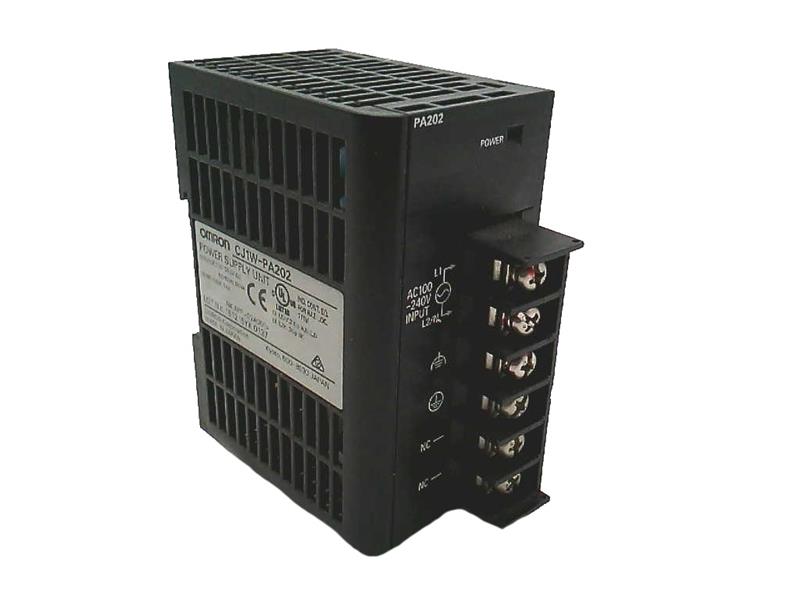

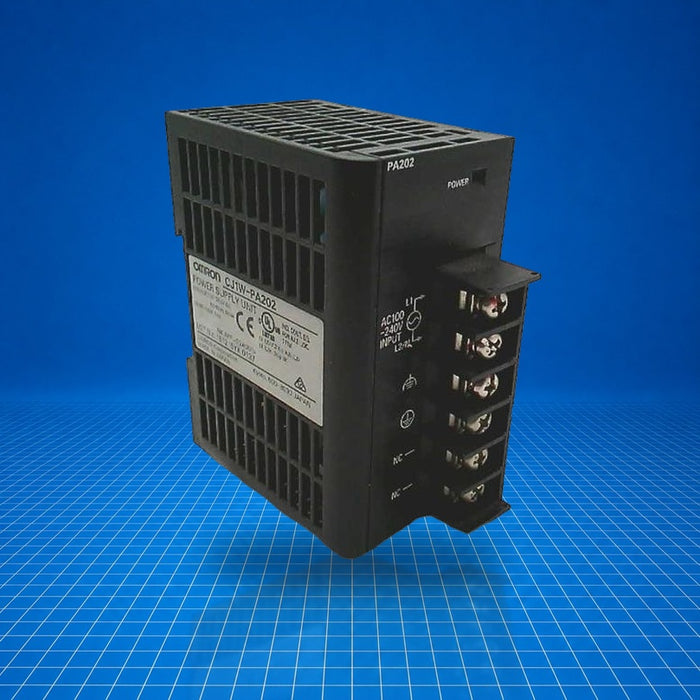

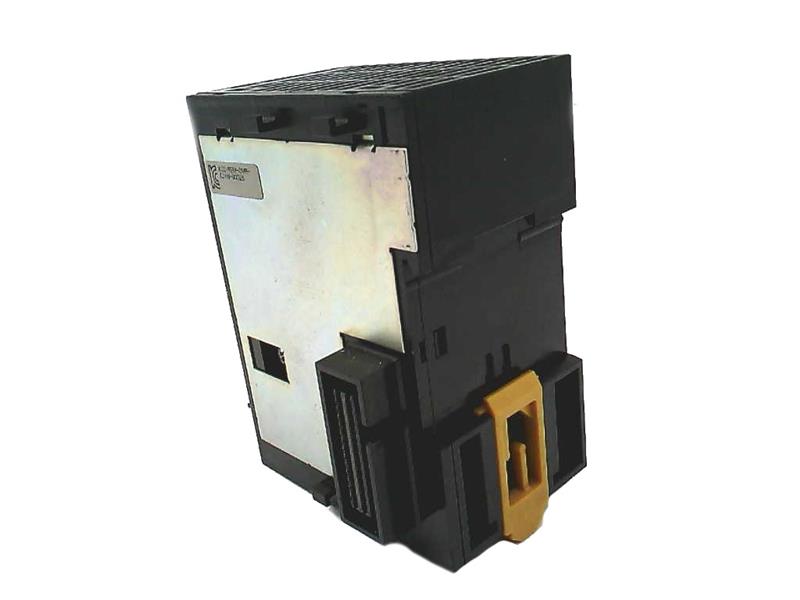

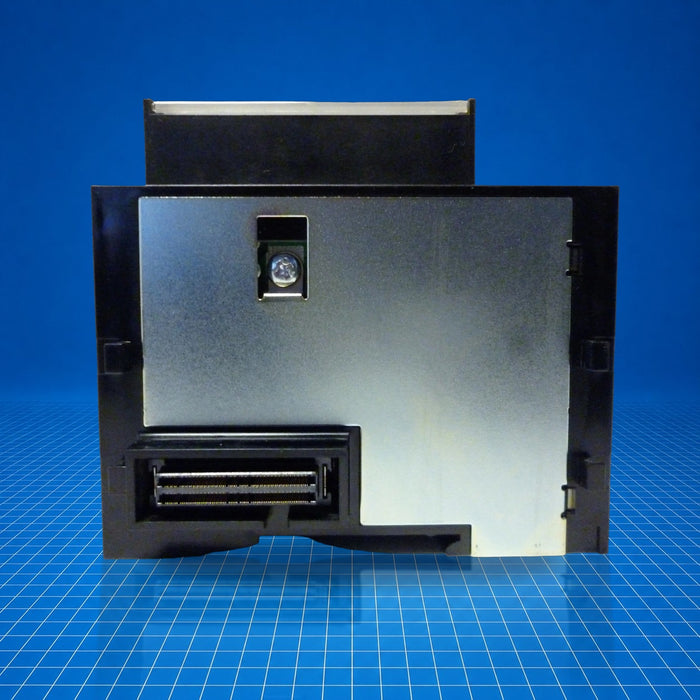

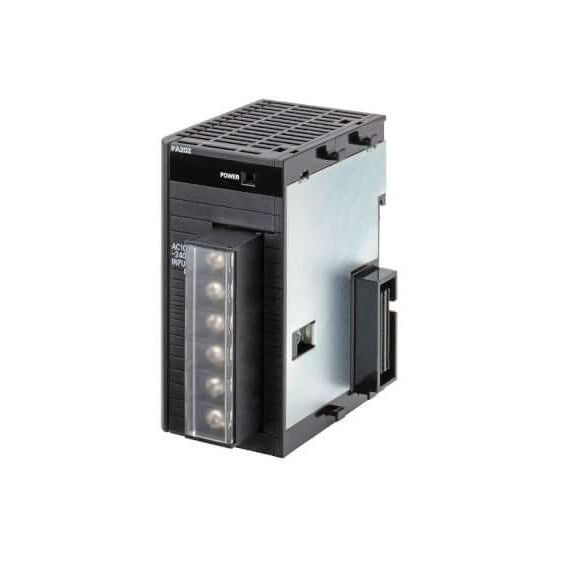

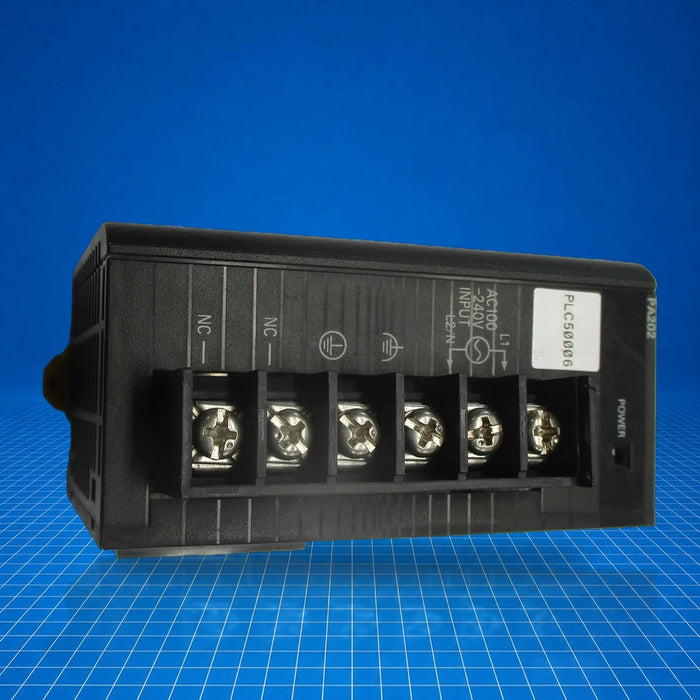

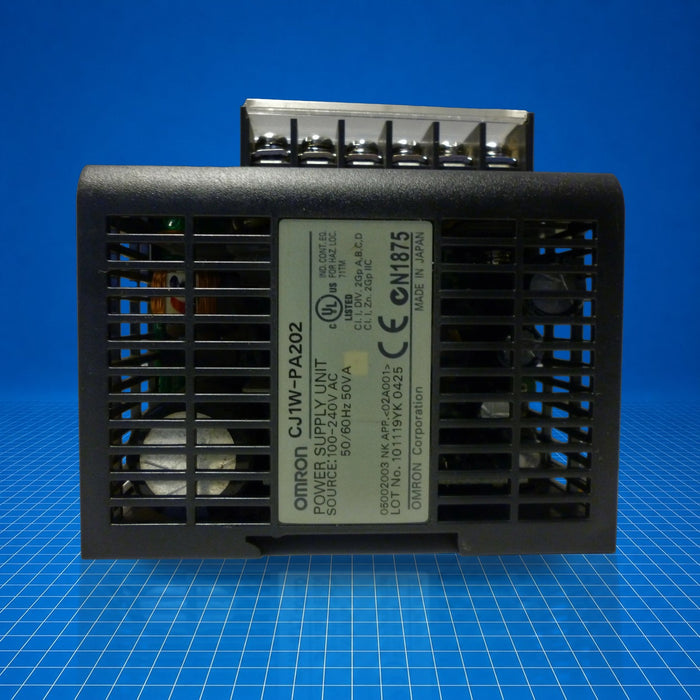

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
CJ1W-PA202 Omron
Original price
$415.96
-
Original price
$450.00
Original price
$415.96
$415.96
-
$450.00
Current price
$415.96
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CJ1W-PA202 is an AC power supply module for the Omron CJ1 programmable controller platform. It provides 5 V DC internal logic power and 24 V DC auxiliary power within a compact footprint. The unit supports system power distribution in compact industrial control installations, such as machine-mounted CPU racks and small-scale automation cabinets. CJ1W-PA202 is suited for supplying both logic and relay-driving voltage to CJ-series PLC components, ensuring stable operation within the CJ1 system.
Best Suited For
- Compact CJ1 CPU rack installations
- Small-scale machine control cabinets
- Systems requiring both 5 V and 24 V supply in a limited footprint
- Retrofits of existing CJ1 systems with constrained power budgets
5 V output current
2.8 A
24 V output current
0.4 A
Total output power
14 W
Power supply voltage
85-264 V AC, 47-63 Hz
Ambient temperature range
0 °C to 55 °C
Technical Specifications
I/O & Electrical
5 V DC output current
2.8 A
24 V DC output current
0.4 A
Total output power
14 W
Communication & Power
Supply voltage
85-264 V AC, 47-63 Hz
Inrush current at 100-120 V AC
20 A/8 ms (cold start)
Inrush current at 200-240 V AC
40 A/8 ms (cold start)
Physical & Environmental
Ambient operating temperature
0 °C to 55 °C
Ambient storage temperature
-20 °C to 75 °C (excluding battery)
Insulation resistance
20 MΩ min. at 500 V DC between all external terminals and GR
Dielectric strength
2 300 V AC for 1 min between AC external and GR terminals
Leakage current
10 mA max.
Vibration resistance
IEC 60068-2-6: 5-8.4 Hz @ 3.5 mm; 8.4-150 Hz @ 9.8 m/s²
Shock resistance
IEC 60068-2-27: 147 m/s², 3 shocks per axis
Weight
≤ 200 g
Certifications
cULusCE
Conforms to cULus and EC Directives.
