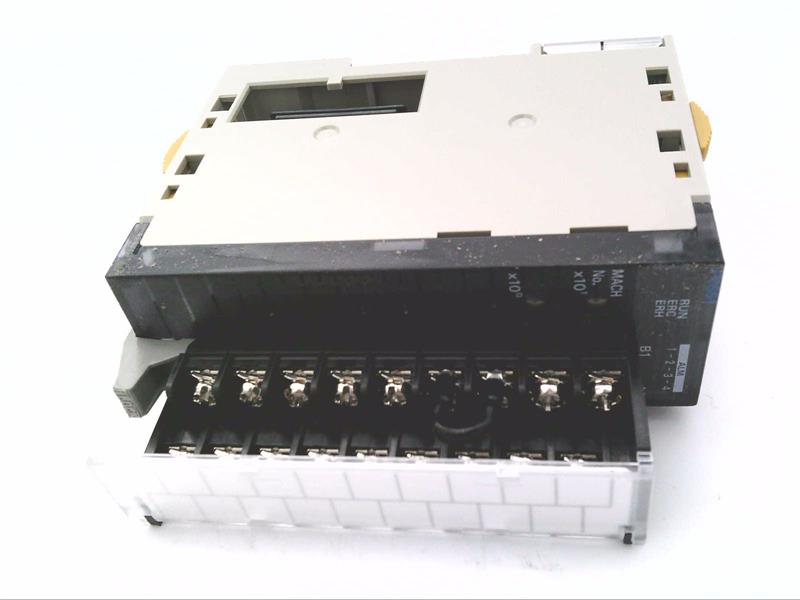

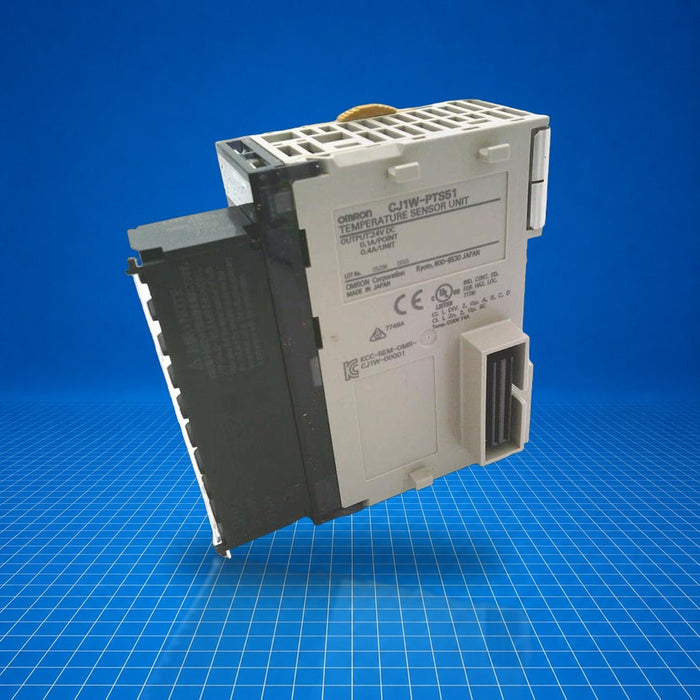

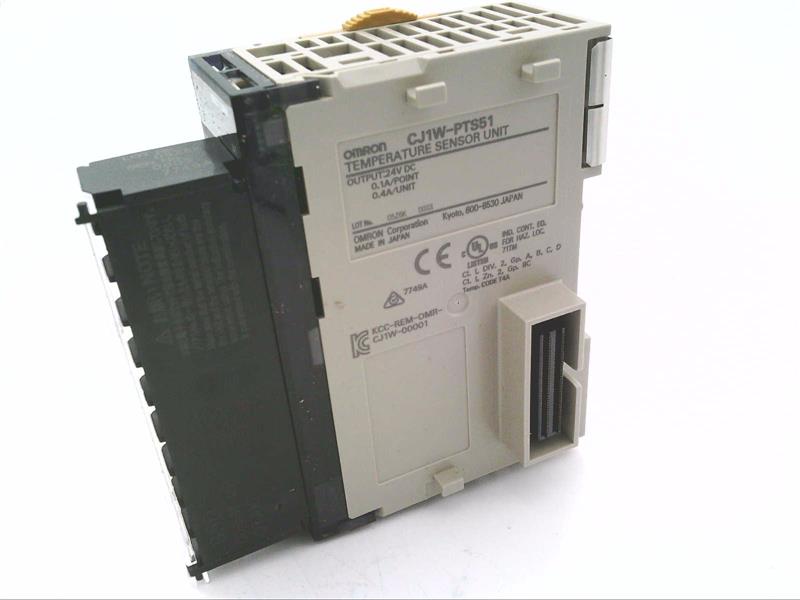

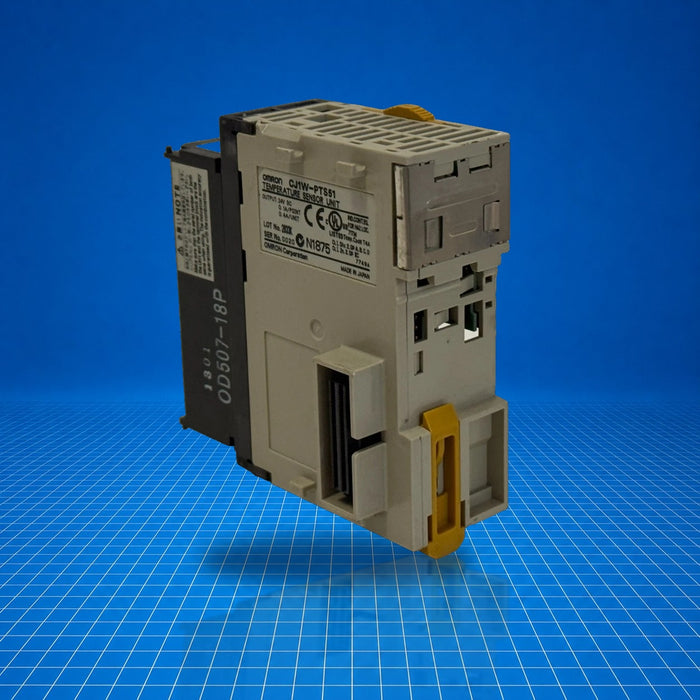

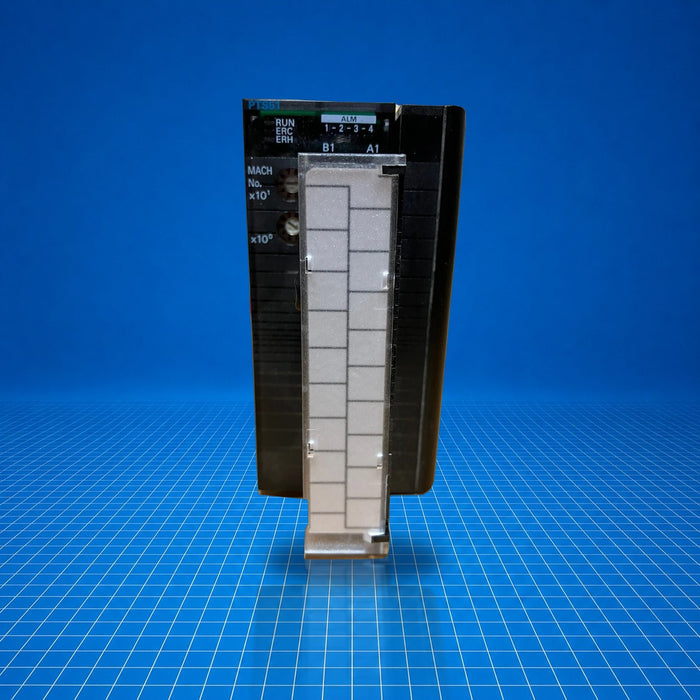

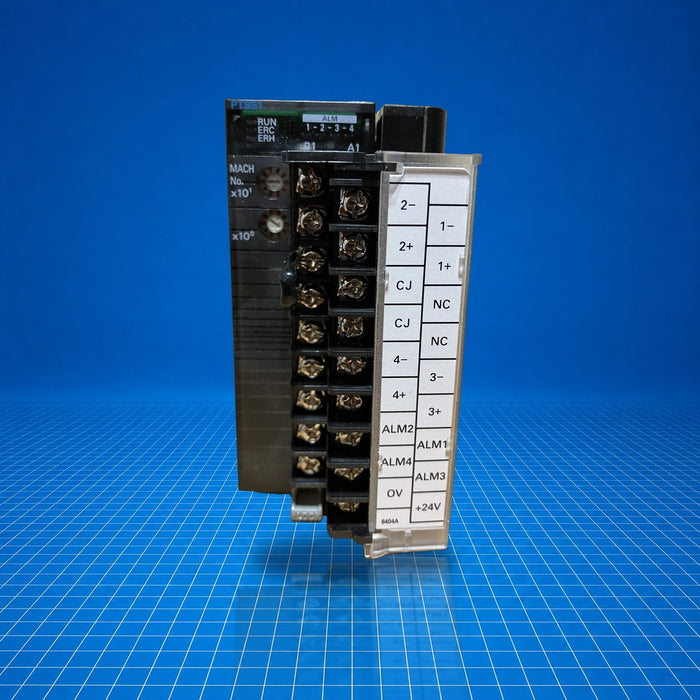

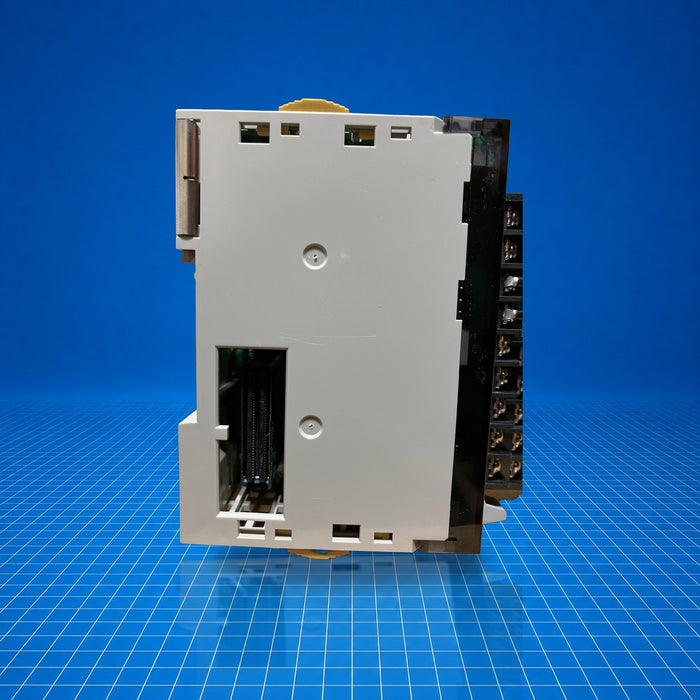

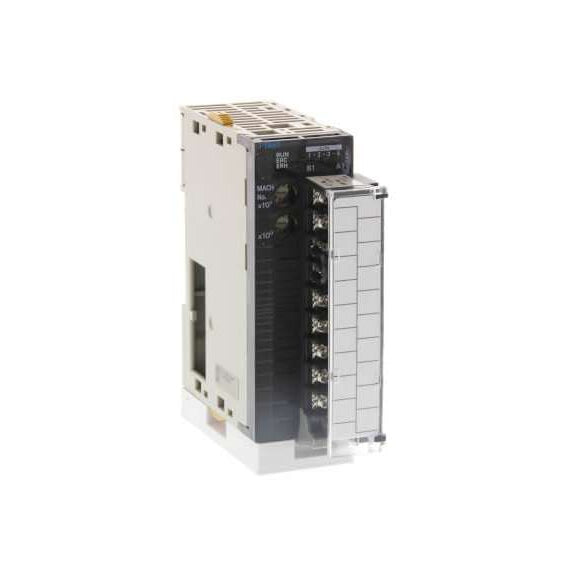

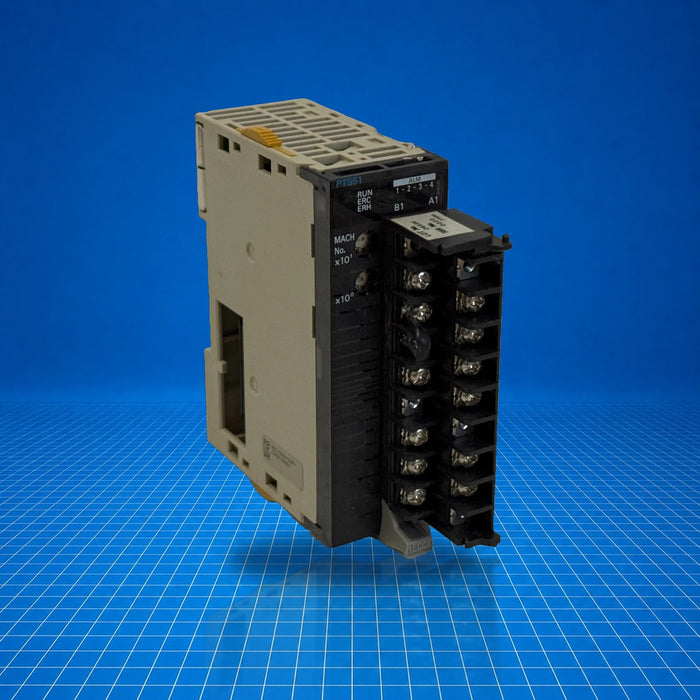

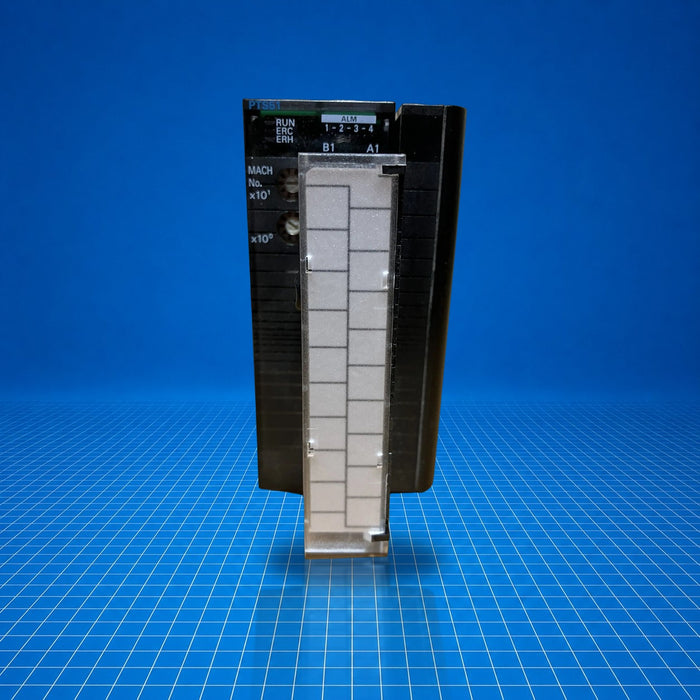

CJ1W-PTS51 Omron
Original price
$618.75
-
Original price
$2,709.00
Original price
$618.75
$618.75
-
$2,709.00
Current price
$618.75
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CJ1W-PTS51 is an Omron CJ-series special I/O unit, an isolated-type thermocouple input module. It integrates four thermocouple inputs into a CJ1 CPU or expansion rack and facilitates temperature measurement, alarm outputs, and data exchange. The unit supports types K, J, L, R, S, T, and B thermocouples, providing scaling, alarm generation, and cold-junction error detection. It is typically used in industrial applications requiring temperature monitoring, such as process control, thermal regulation, and equipment diagnostics.
Best Suited For
- Temperature monitoring in process control loops
- Thermocouple input integration in CJ1 PLC systems
- Alarm signalling based on temperature thresholds
- Rack-mounted expansion for thermal measurement
Thermocouple inputs
4
Supported types
K, J, L, R, S, T, B
Conversion period
250 ms / 4 inputs
Accuracy (25 °C)
±0.3 % of PV or ±1 °C (greater), ±1 digit
Current consumption
5 V DC at 250 mA max
Technical Specifications
I/O & Electrical
Thermocouple inputs
4
Supported thermocouple types
K, J, L, R, S, T, B
Conversion period
250 ms / 4 inputs
Accuracy (25 °C)
±0.3 % of PV or ±1 °C (greater), ±1 digit
Communication & Power
Current consumption (5 V DC)
250 mA max
External power supply voltage (alarm outputs)
20.4 to 26.4 V DC
Physical & Environmental
Warm-up time
30 min
Dimensions (W×H×D)
31 × 90 × 65 mm
Weight
150 g max
Certifications
UC1CE
