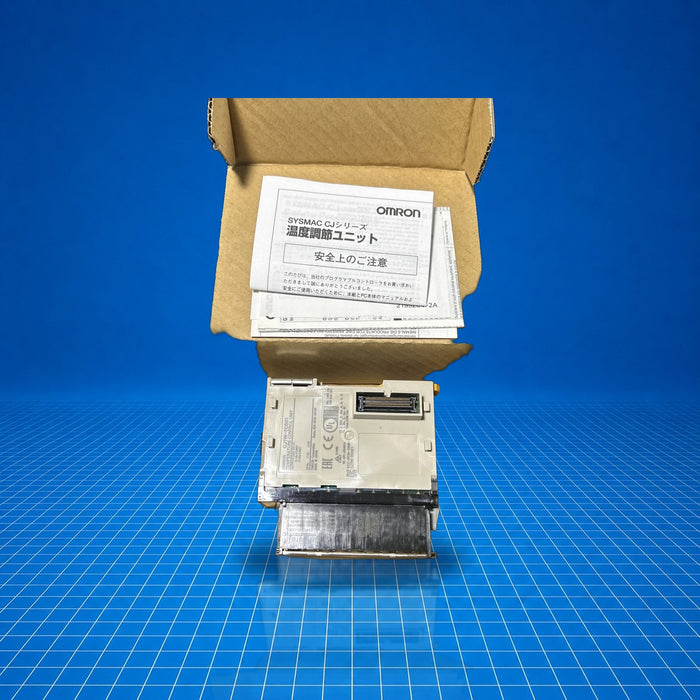

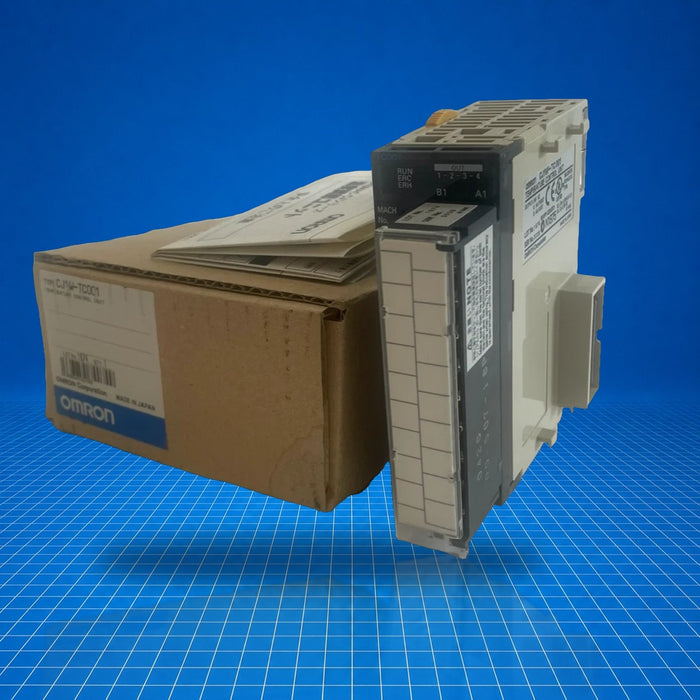

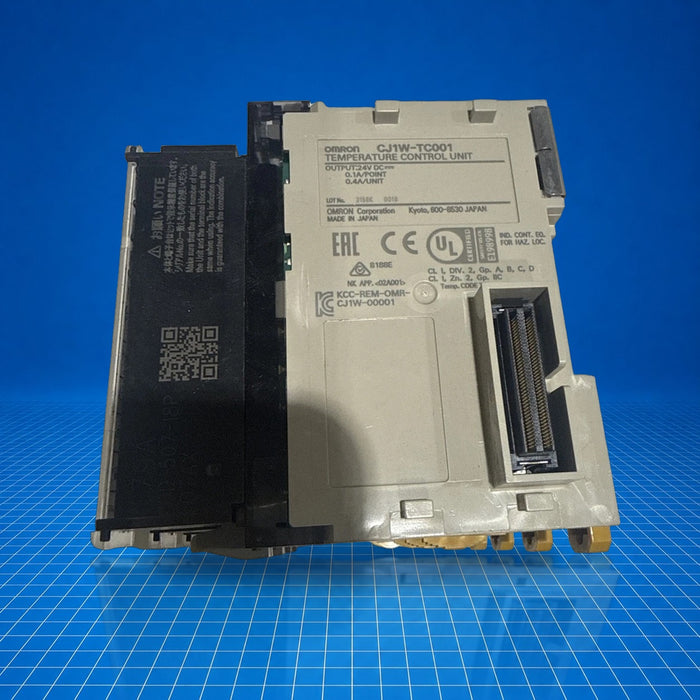

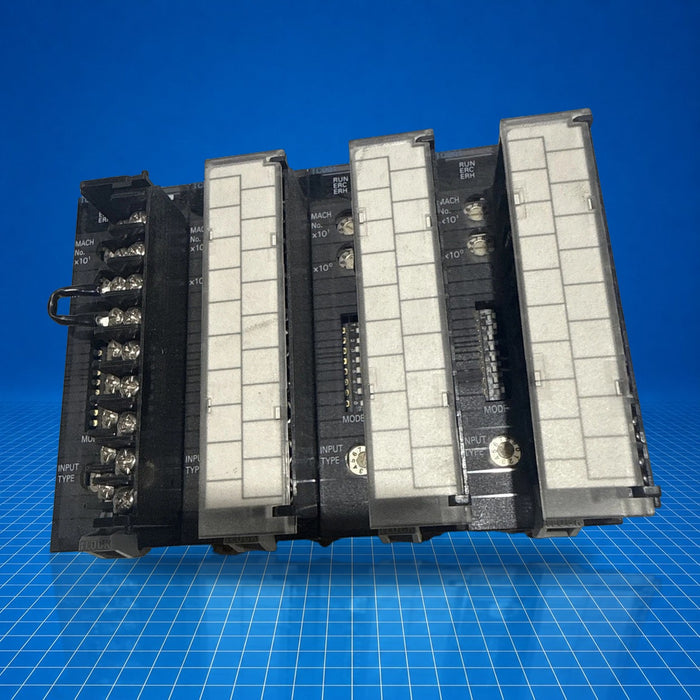

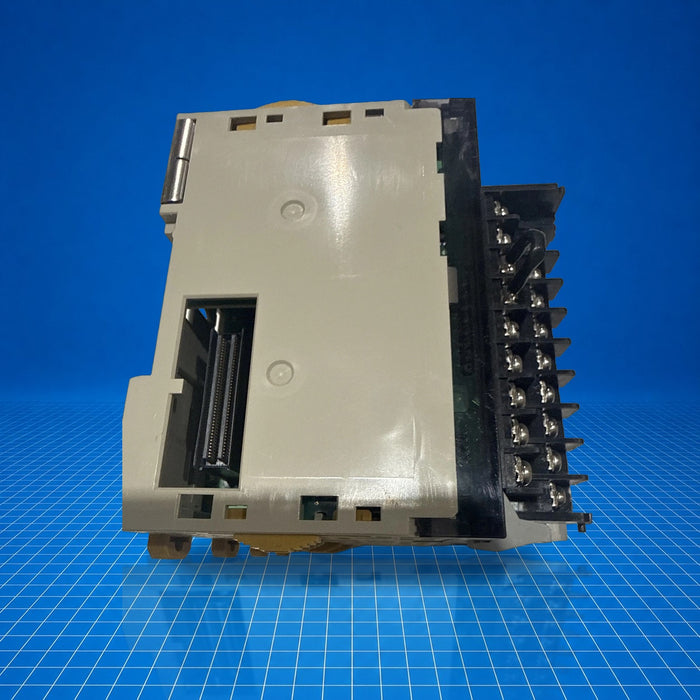

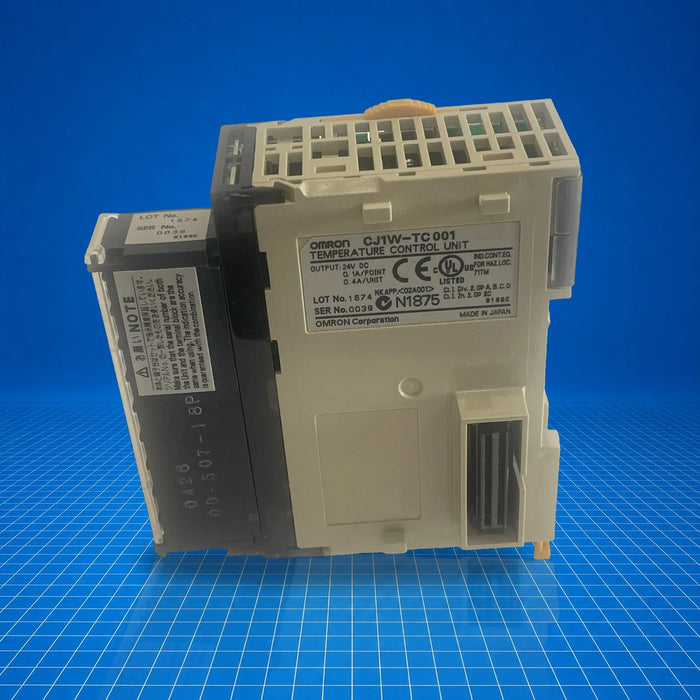

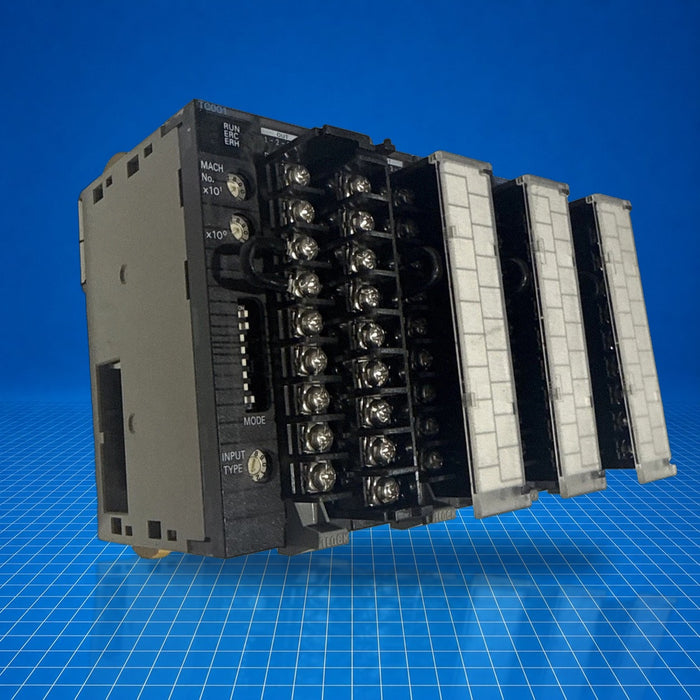

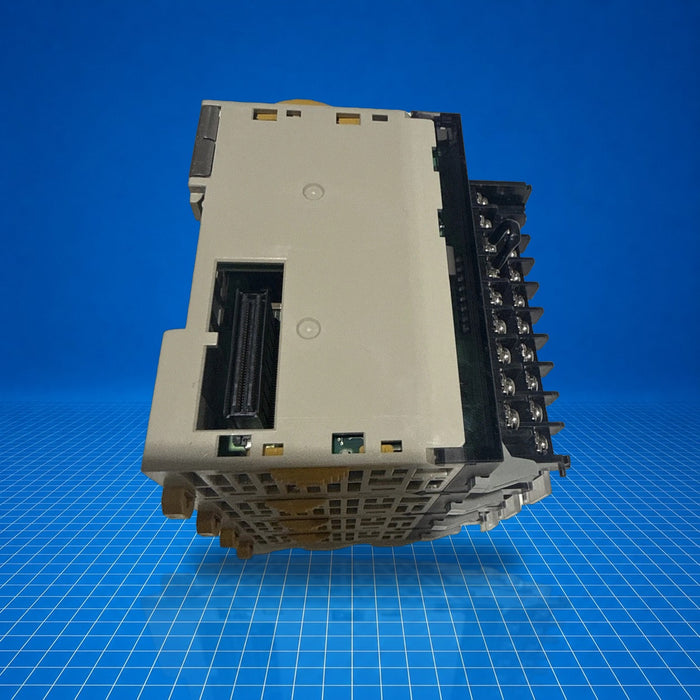

Product image is representative; revision or series may vary.
Contact us to request a specific version.

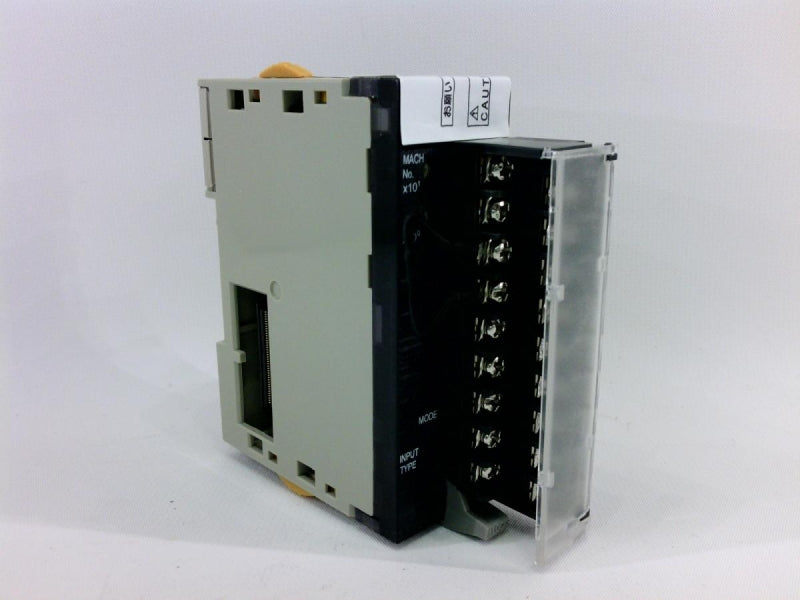

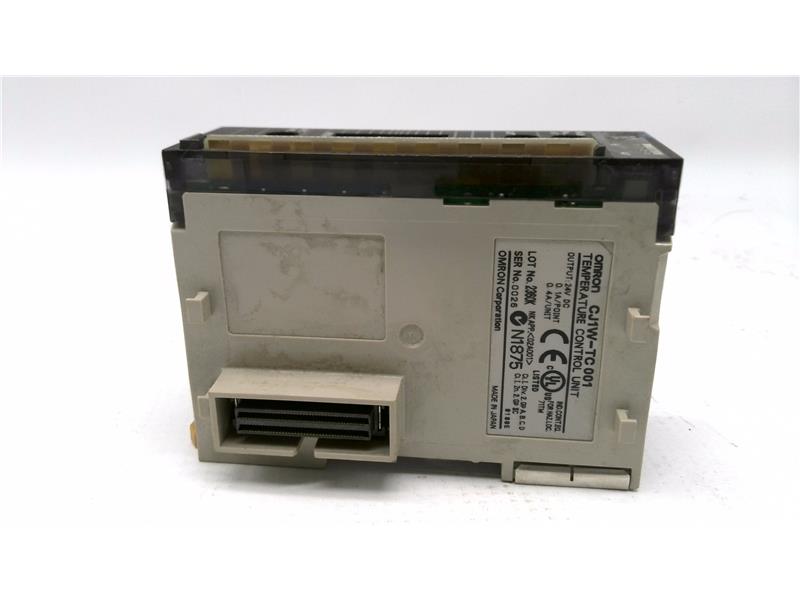

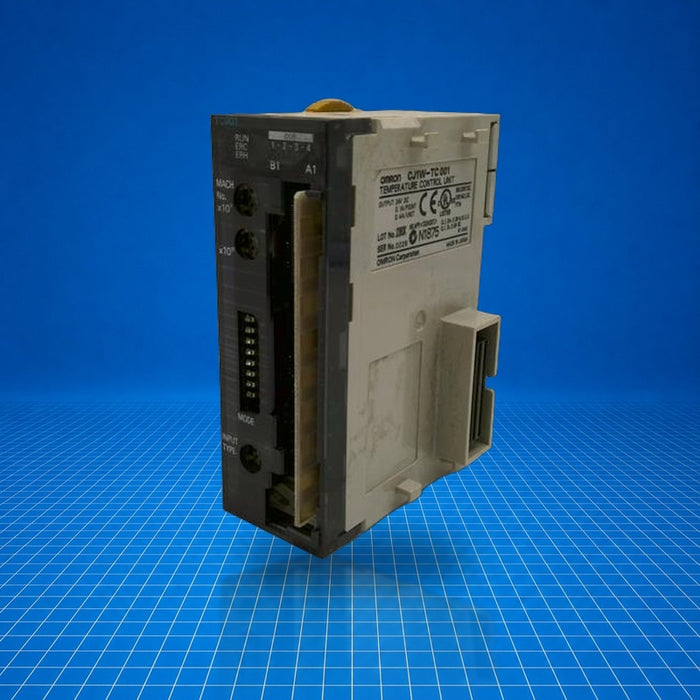

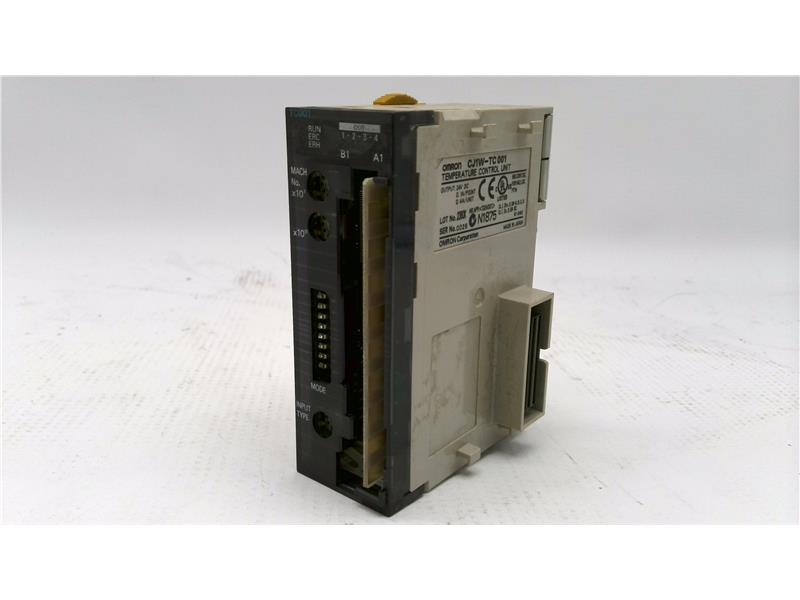

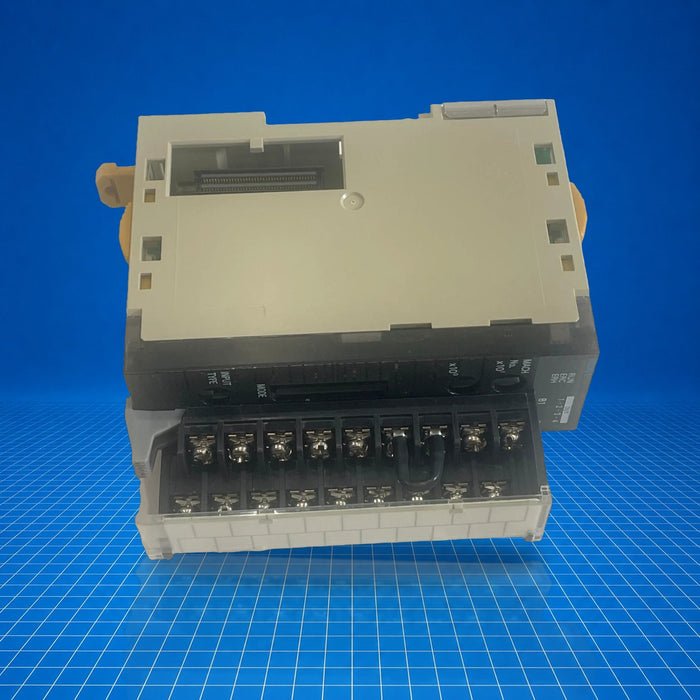

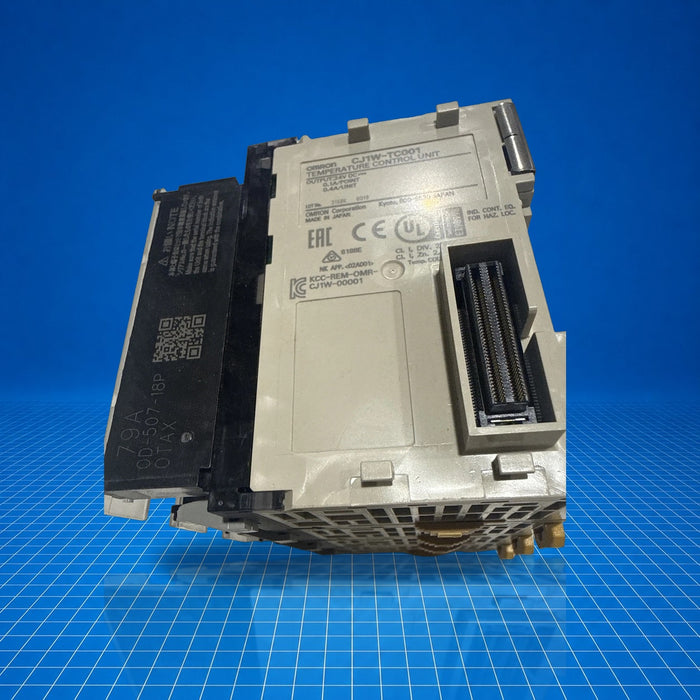

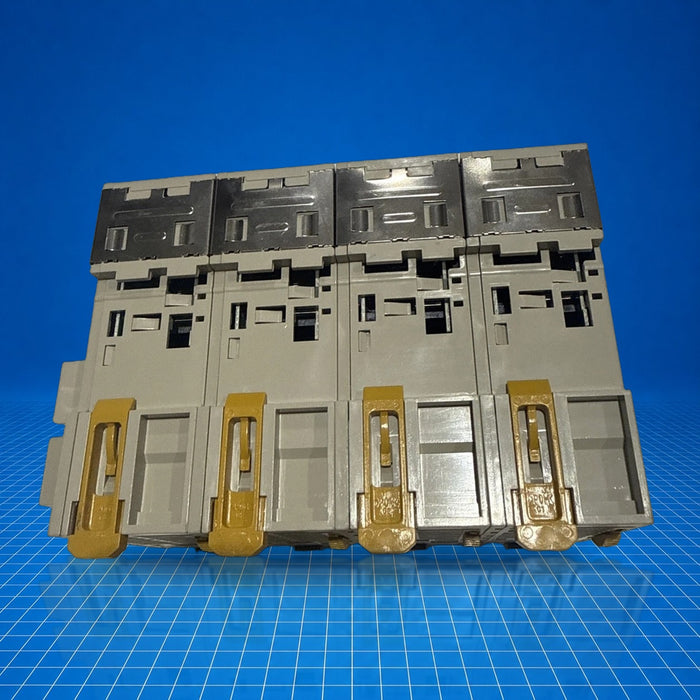

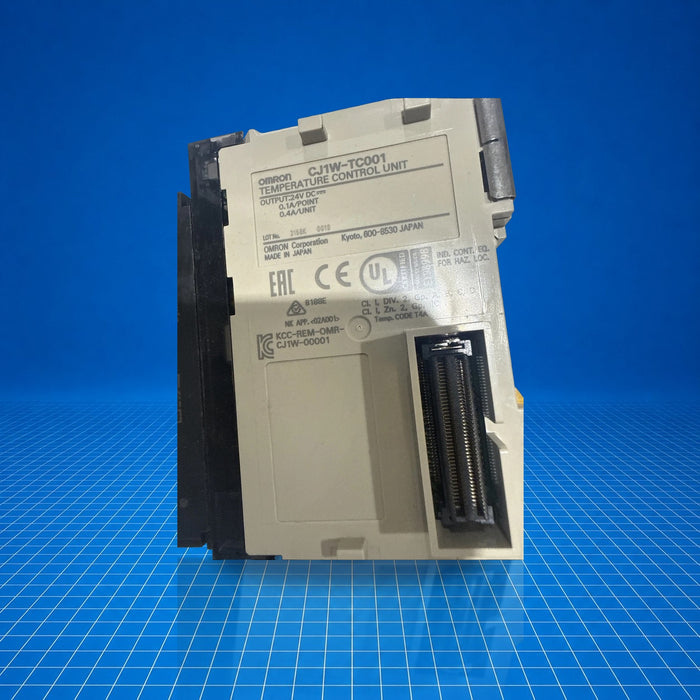

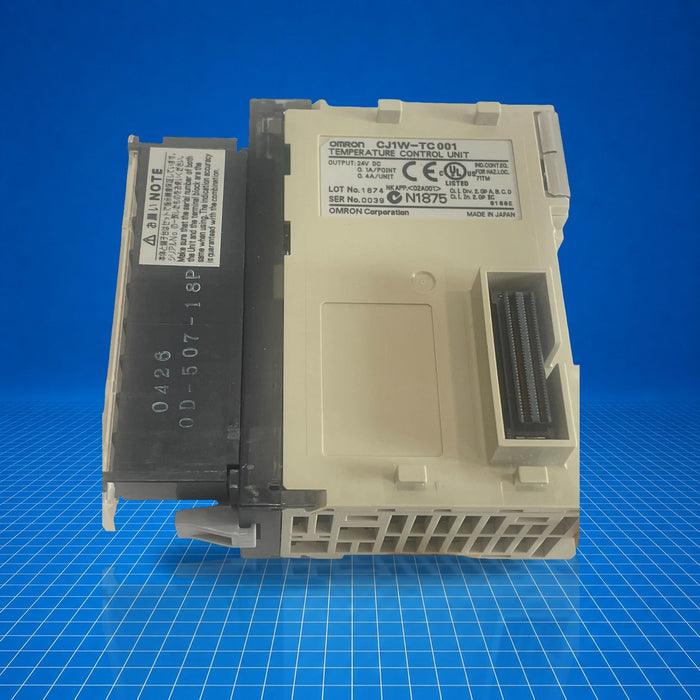

CJ1W-TC001 Omron

Name: CJ1W-TC001 Omron
Brand: Omron
SKU: CJ1W-TC001
Price: 2398.41 USD
Availability: InStock

$600.00 - $2,398.41

$2,398.41

$600.00 - $2,398.41

$2,398.41

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (3) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Omron distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The CJ1W-TC001 is an Omron CJ-series special I/O temperature control unit. It integrates PID (2- or 4-loop) or ON/OFF temperature control, accepting direct input from seven thermocouple types (R, S, K, J, T, B, L). The unit mounts on a CJ-series CPU or expansion rack and communicates with the CPU for RUN/STOP, autotuning, and heater burnout detection. It is used in industrial temperature regulation applications, such as heat treatment, process ovens, or batch control systems, where precision and compact integration within a PLC rack are required.

Best Suited For

Multi-loop temperature regulation within CJ-series PLC systems
Control of heating elements with heater burnout detection
Use of thermocouple sensors within CJ racks
Inline autotuning temperature control applications

Temperature loops

4 (or 2 with heater burnout detection)

Sensor types supported

Thermocouple (R, S, K, J, T, B, L)

Control outputs

2 open-collector NPN pulses

Current consumption

0.25 A (24 V DC)

Dimensions

31 × 90 × 65 mm

Technical Specifications

I/O & Electrical

Control method

PID (2 or 4 loops) or ON/OFF

Input types

Thermocouple (R, S, K, J, T, B, L)

Control outputs

Open-collector NPN output, max 100 mA, leakage ≤ 0.3 mA, residual voltage ≤ 3 V

Sampling cycle

500 ms

Temperature indication accuracy

±0.3 % of PV or ±1 °C (whichever larger) ±1 digit (Celsius)

Heater burnout detection

Yes, via CT (max single-phase AC 50 A)

Internal current consumption

250 mA max. (5 V DC)

Communication & Power

Mounting rack interface

CJ-series CPU or expansion rack, special I/O area CIO words, DM words allocated per unit

Data exchange

6 output + 14 input words; 20 words special I/O area; 90 words alarm/hysteresis; 10 DM words

Physical & Environmental

Dimensions (W×H×D)

31 × 90 × 65 mm

Weight

≤ 150 g

Certifications

UL (Class I Div 2)cULusNKLloyd'sCE

Certified standards: UL (Class I Div 2), cULus, NK, Lloyd's, CE. *See Omron representative for conditions.*
