CJ1W-TC002 Omron
Original price
$639.80
-
Original price
$662.48
Original price
$662.48
$639.80
-
$662.48
Current price
$662.48
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

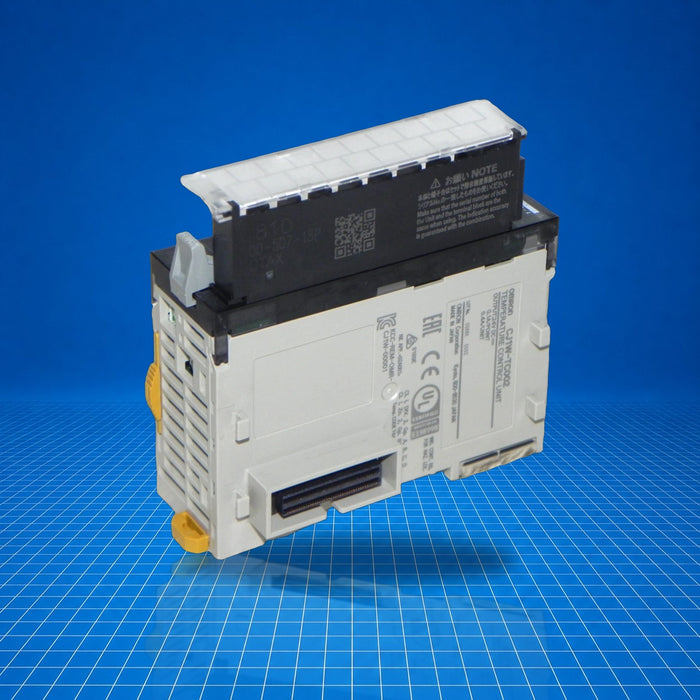

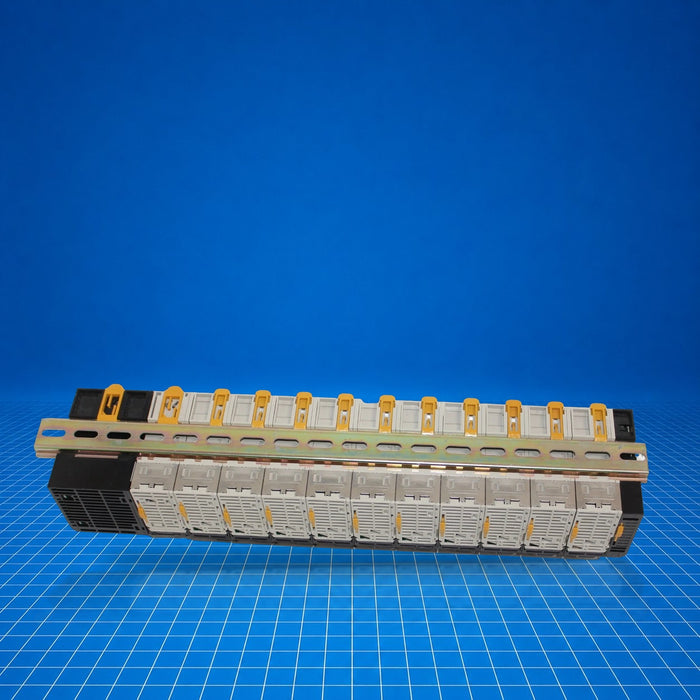

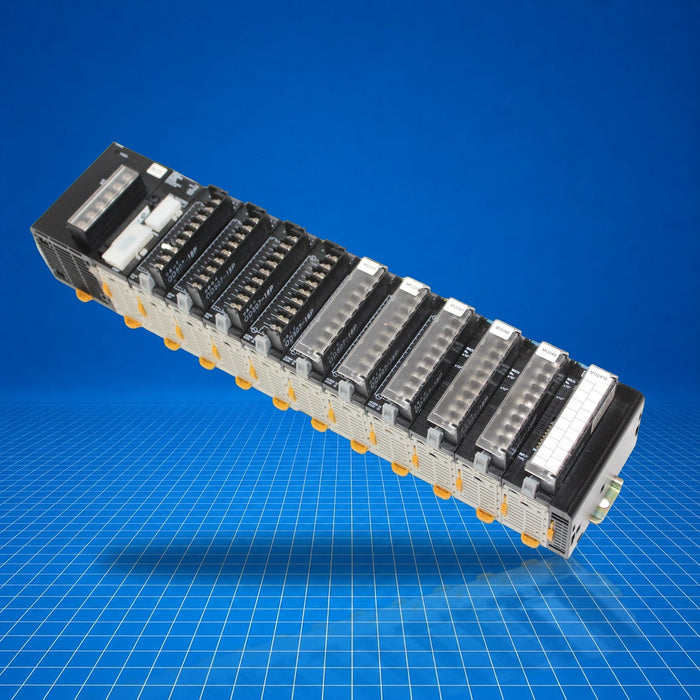

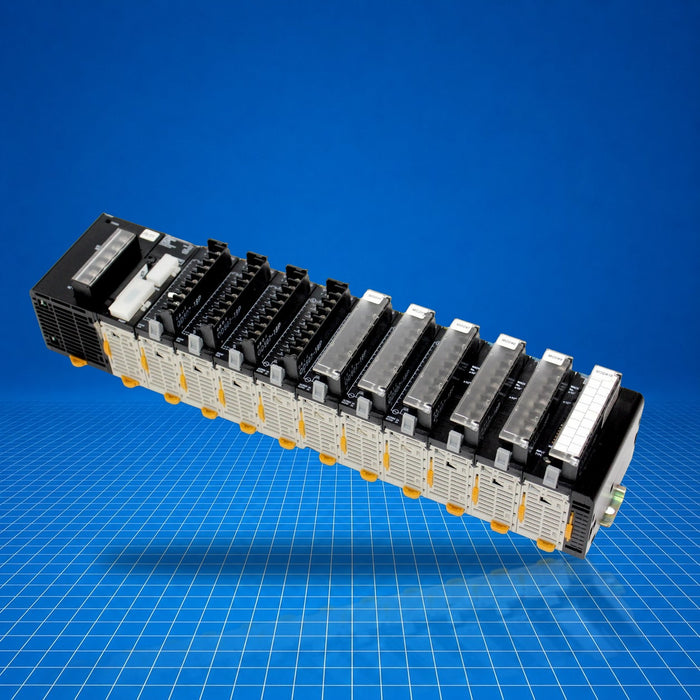

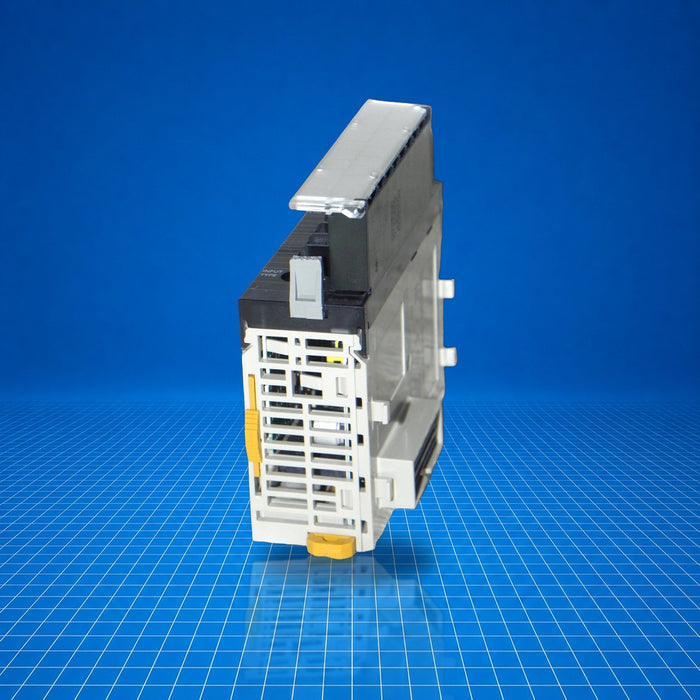

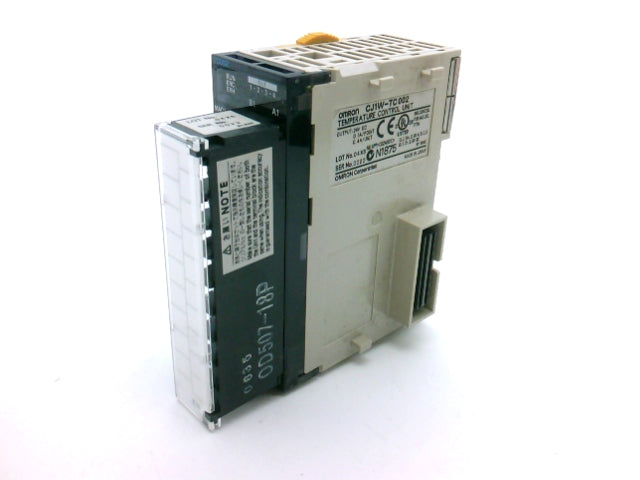

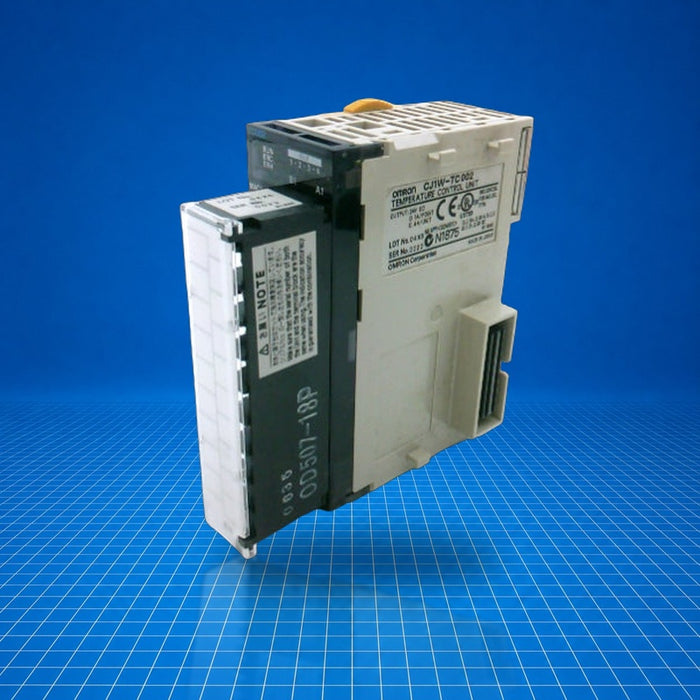

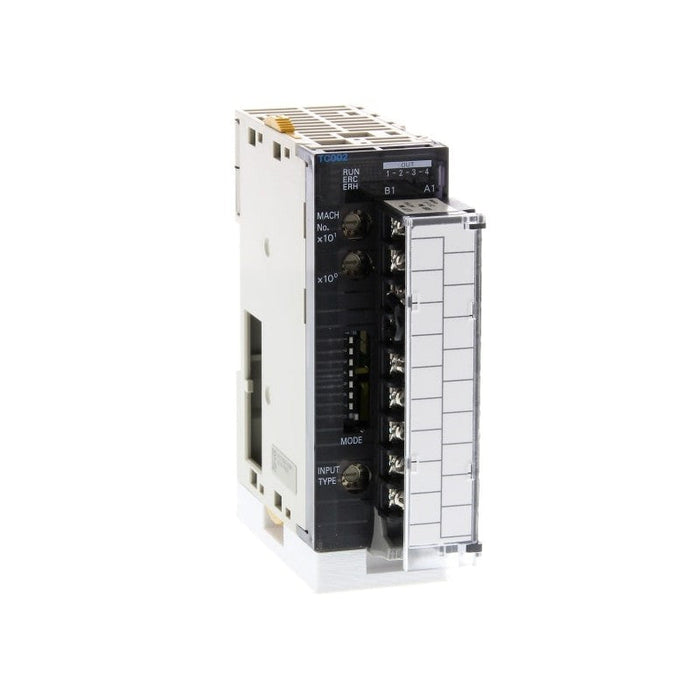

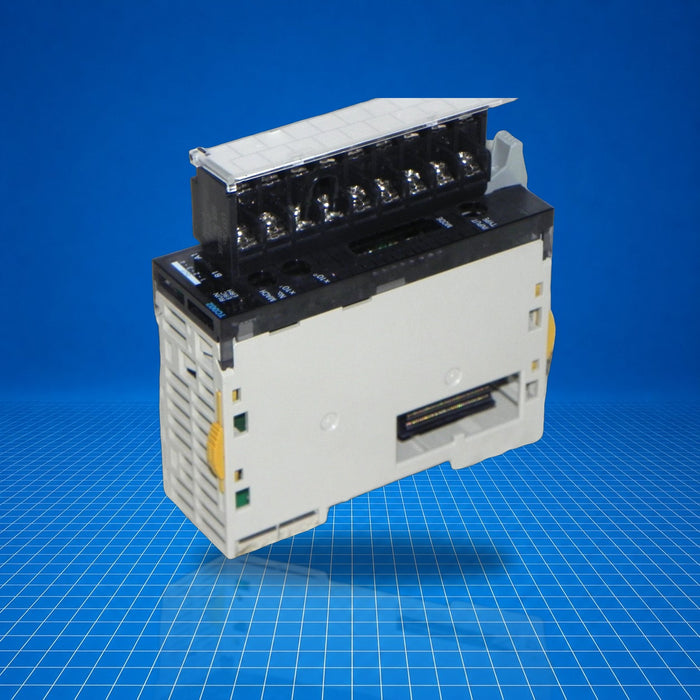

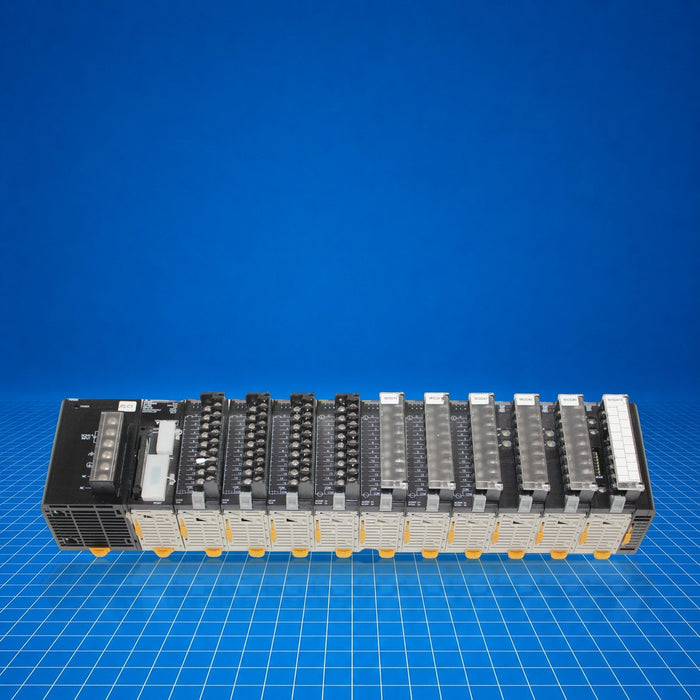

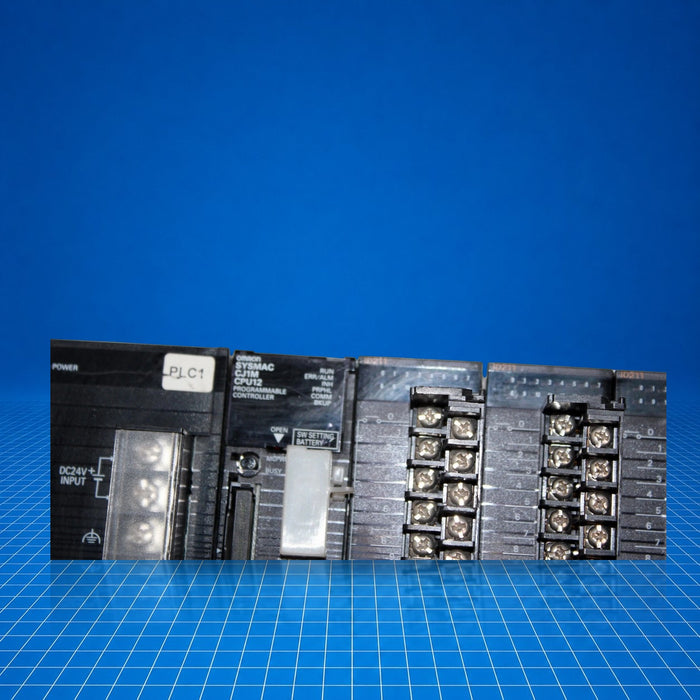

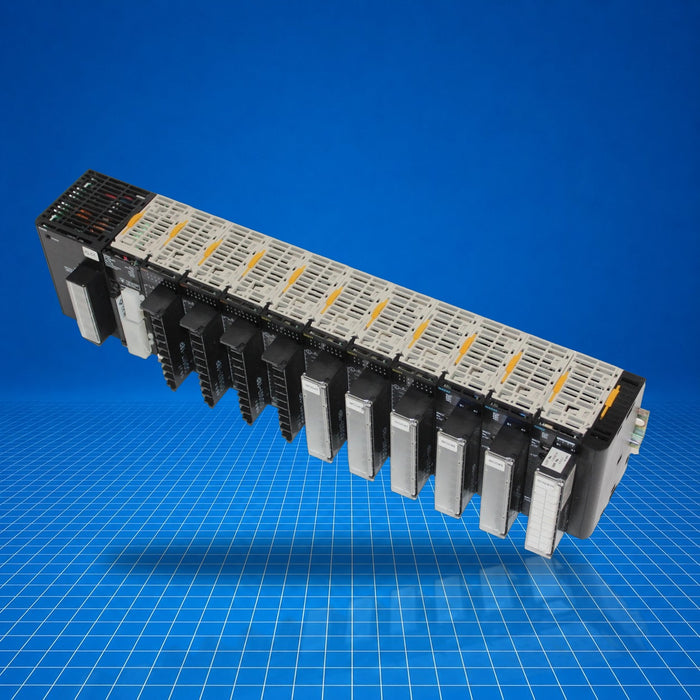

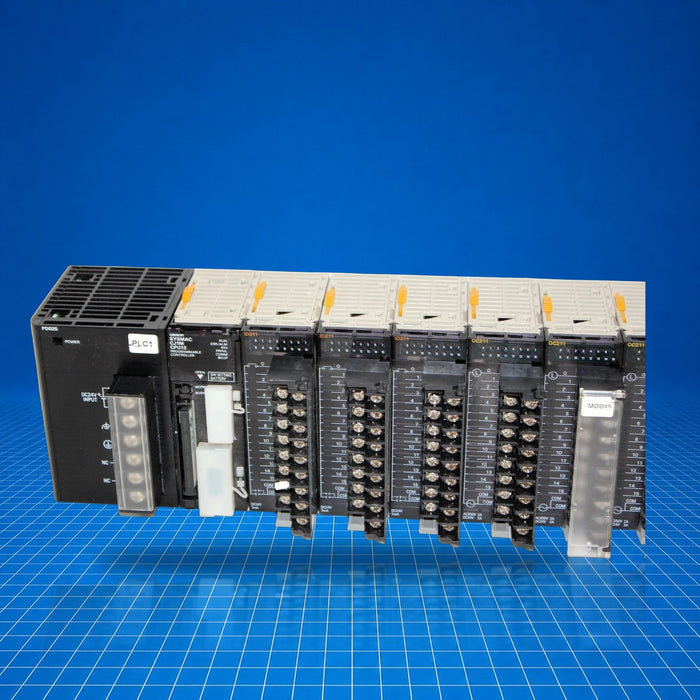

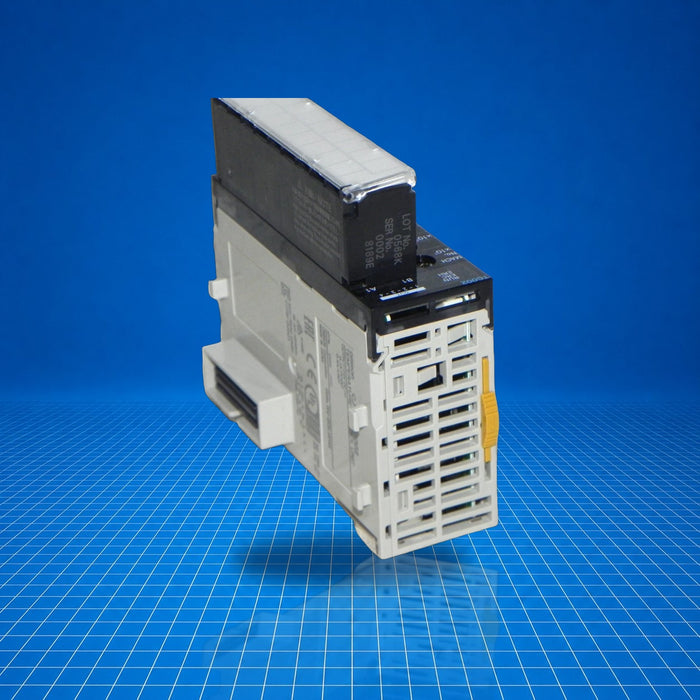

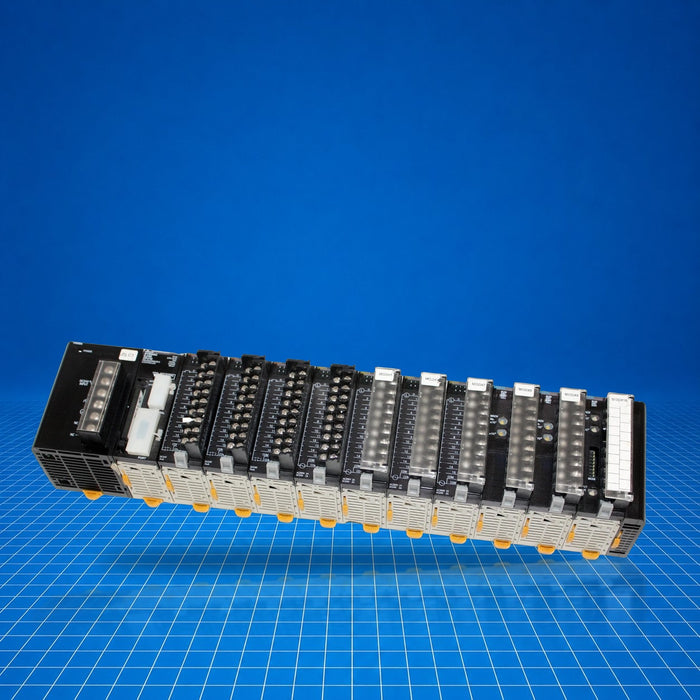

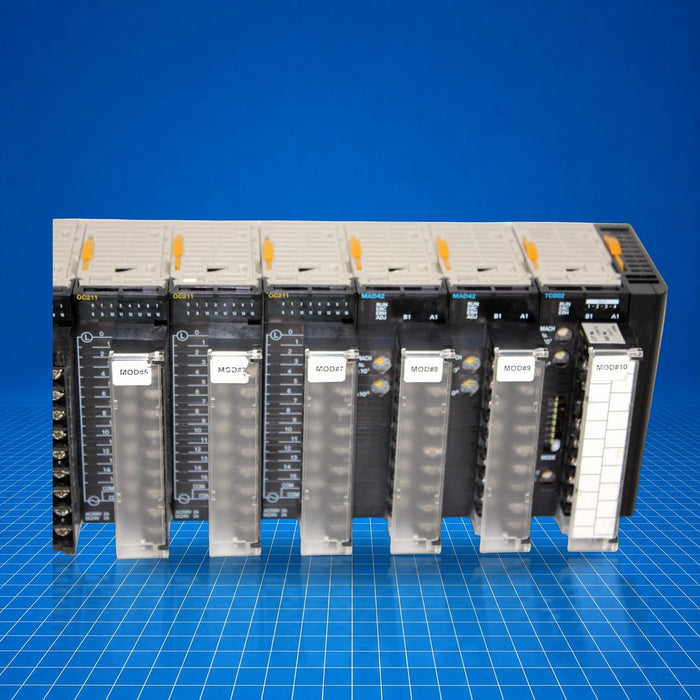

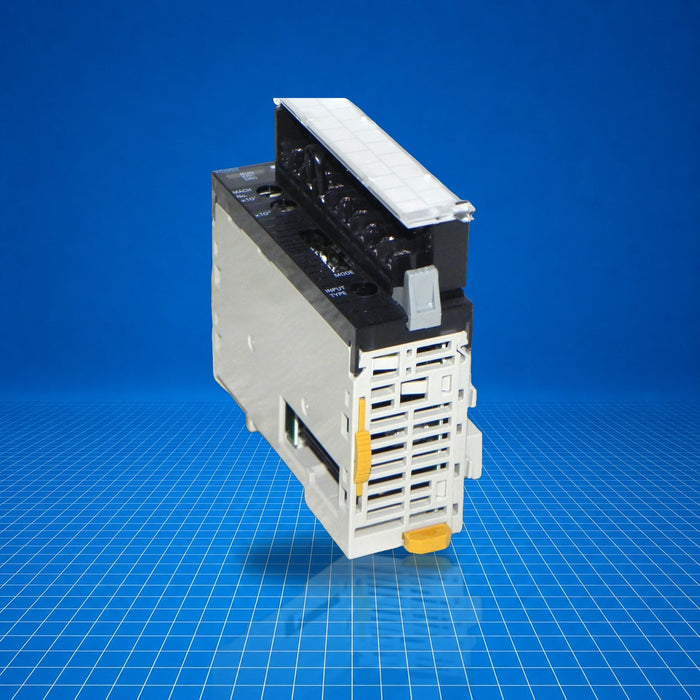

The CJ1W-TC002 is an Omron CJ-series special I/O Temperature Control Unit module designed for insertion into CJ-series CPU or expansion racks. It provides up to four independent thermocouple input loops and PNP open-collector pulse outputs for temperature control using ON/OFF or two-degree-of-freedom PID methods. Typical applications include industrial heating zone control, temperature profiling, multi-loop thermal regulation in packaging or process systems. CJ1W-TC002
Best Suited For
- Multi-loop temperature control (4 loops)
- Thermocouple input applications
- Integration into CJ-series PLC racks
- PID or ON/OFF temperature regulation
Loops
4
Sensor types
Thermocouple (R, S, K, J, T, L, B)
Control outputs
PNP open-collector pulses
Control method
ON/OFF or PID (2-DOF)
Technical Specifications
I/O & Electrical
Temperature sensor inputs
Thermocouple: R, S, K, J, T, L, B
Number of loops
4 loops
Control outputs
Open-collector PNP pulses
Max. switching capacity
100 mA per output
Leakage current
0.3 mA max.
Residual voltage
3 V max.
Communication & Power
External power supply voltage
24 V DC +10 / -15 %
Internal current consumption
250 mA max, 5 V DC
Physical & Environmental
Dimensions (W × H × D)
31 × 90 × 65 mm
Weight
150 g max.
Insulation resistance
20 MΩ min. at 500 V DC
Dielectric strength
2,000 VAC (input/output), 1,000 VAC (others)
Effect on CPU cycle
0.4 ms
Certifications
EN61131-2EN61000-6-4EN61000-6-2
Meets EN61131-2, EN61000-6-4, EN61000-6-2 by self-declaration for CJ1W-TC002.
