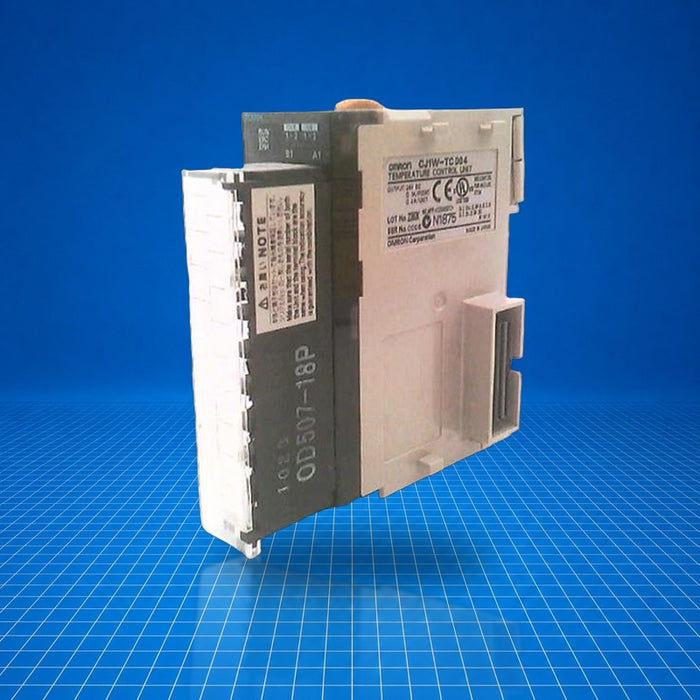

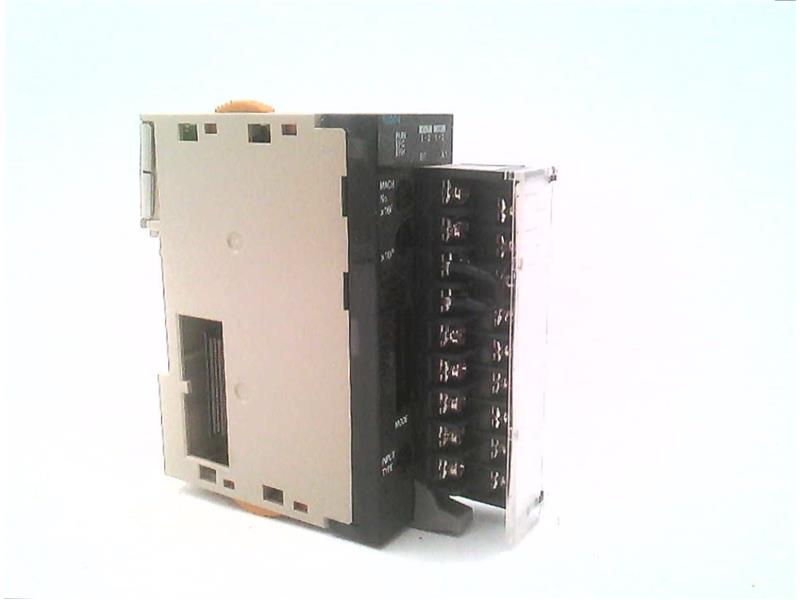

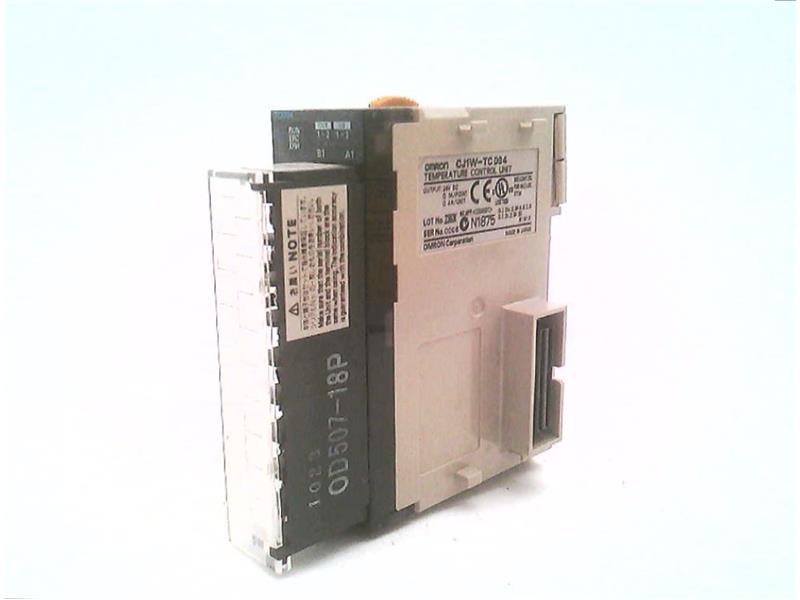

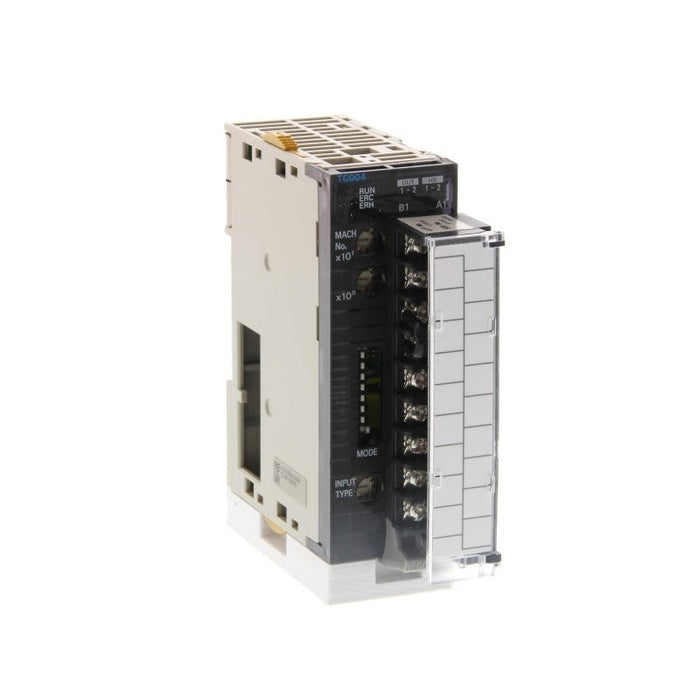

CJ1W-TC004 Omron

Name: CJ1W-TC004 Omron
Brand: Omron
SKU: CJ1W-TC004
Price: 687.47 USD
Availability: InStock

$687.47 - $720.00

$687.47

$687.47 - $720.00

$687.47

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Omron distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The CJ1W-TC004 is a temperature control special I/O unit for the OMRON CJ-series programmable controller platform. The part provides two independent temperature control loops with built-in heater burnout detection, accepting platinum resistance thermometer sensors (Pt100, JPt100) and generating open-collector PNP pulse outputs. It mounts into a CJ-series CPU or expansion rack, exchanging process values, setpoints, and status via the special I/O data area. Typical applications include heating system control, thermal process regulation, and temperature loop integration within PLC systems.

Best Suited For

Temperature control using Pt100 / JPt100 sensors
Heater burnout detection in thermal systems
Integration into CJ-series PLC racks
Compact multi-loop temperature regulation

Control loops

2

Temperature sensor input

Platinum resistance thermometer (Pt100, JPt100)

Control output type

PNP open-collector pulses

Heater burnout detection

Yes

Dimensions (W×H×D)

31 × 90 × 65 mm

Technical Specifications

I/O & Electrical

Input sensor type

Platinum resistance thermometer (Pt100, JPt100)

Control outputs

PNP open-collector pulses, 100 mA max, leakage 0.3 mA max, residual voltage 3 V max

External power supply voltage

24 V DC +10 %, -15 %

Communication & Power

Internal current consumption

250 mA max, 5 V DC

Physical & Environmental

Dimensions (W×H×D)

31 × 90 × 65 mm

Weight

150 g max

Certifications

Conforms to international standards including UL, cULus, NK, Lloyd's, CE directives (via Omron classification) - consult Omron for conditions.
