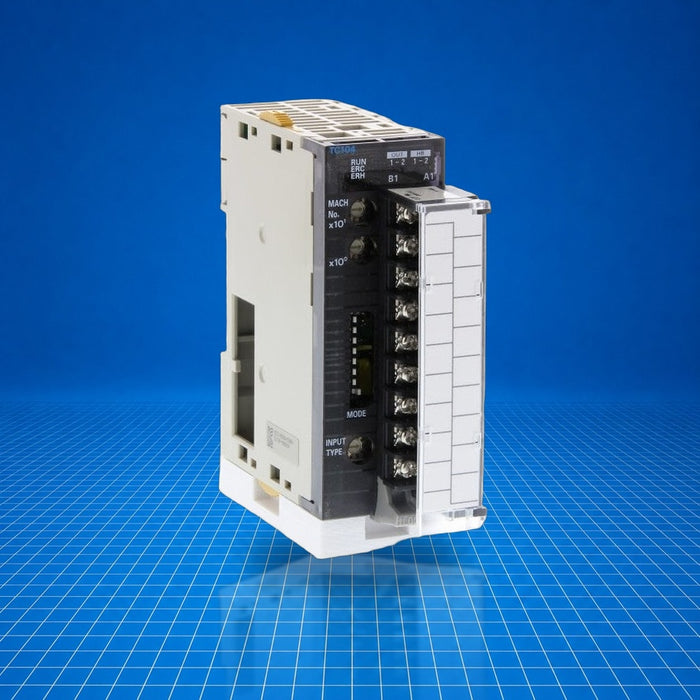

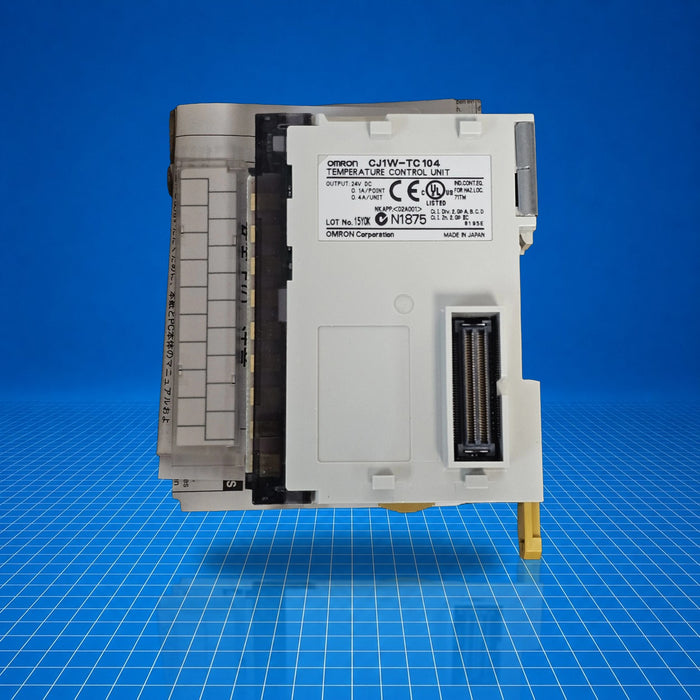

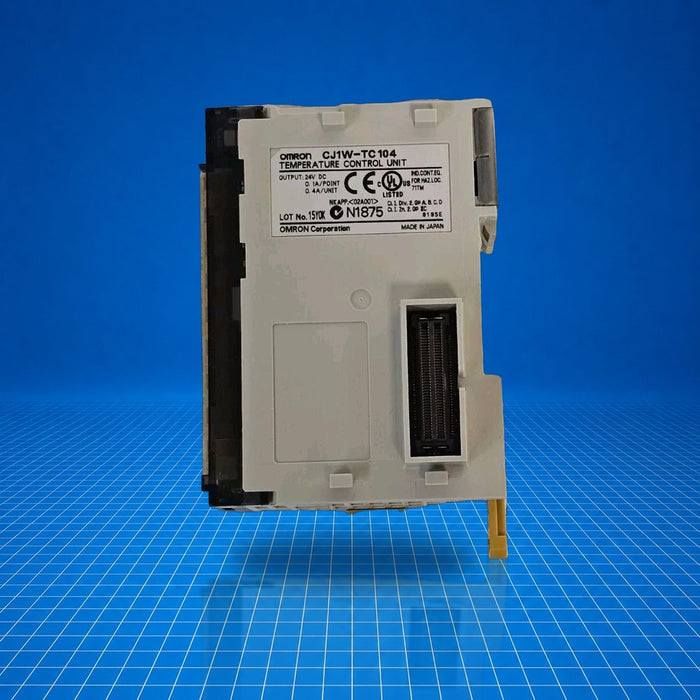

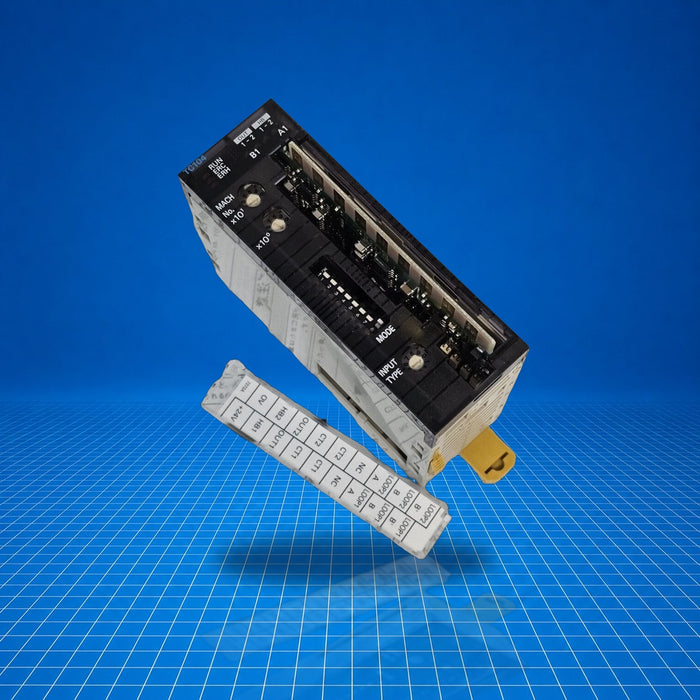

CJ1W-TC104 Omron

Name: CJ1W-TC104 Omron
Brand: Omron
SKU: CJ1W-TC104
Price: 1168.78 USD
Availability: InStock

$1,168.78 - $2,700.00

$1,168.78

$1,168.78 - $2,700.00

$1,168.78

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (15) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Omron distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Omron CJ1W-TC104 is a CJ-series special I/O Temperature Control Unit incorporating the functionality of two independent temperature controllers with heater burnout detection. Designed for mounting on CJ-series CPU or expansion racks, it handles platinum resistance thermometer inputs (Pt100, JPt100) and provides PNP open-collector pulse outputs. It communicates via the CJ I/O Bus and performs local PID control, integrating temperature regulation within programmable controller systems. CJ1W-TC104 is typically applied in heat-process monitoring and control, OEM machine integration, and on-machine temperature loop execution. Part number CJ1W-TC104.

Best Suited For

Integration into CJ-series PLC rack systems
Pt100 temperature monitoring and control
Applications requiring local PID looping with burnout detection
OEM equipment temperature regulation
Two independent control loops within a single module

Control loops

2

Temperature input type

Pt100 (platinum resistance thermometer)

Output type

PNP open-collector (voltage pulses)

Heater burnout detection

Yes

Mountable units/rack

Up to 10 per rack

Technical Specifications

I/O & Electrical

Temperature sensor inputs

Platinum resistance thermometer (Pt100, JPt100)

Control outputs

PNP open-collector pulse outputs

Max. switching capacity (per output)

100 mA

Leakage current (per output)

0.3 mA max.

Residual voltage (per output)

3 V max.

Communication & Power

Bus interface

CJ-series I/O Bus

Internal current consumption

250 mA max., 5 VDC

Physical & Environmental

Dimensions (W×H×D)

31 × 90 × 65 mm

Weight

150 g max.

Certifications

ULcULusCE

Conforms to CJ-series general specifications (dielectric strength, insulation resistance) per Omron documentation.
