SKU CP1E-N40DR-D

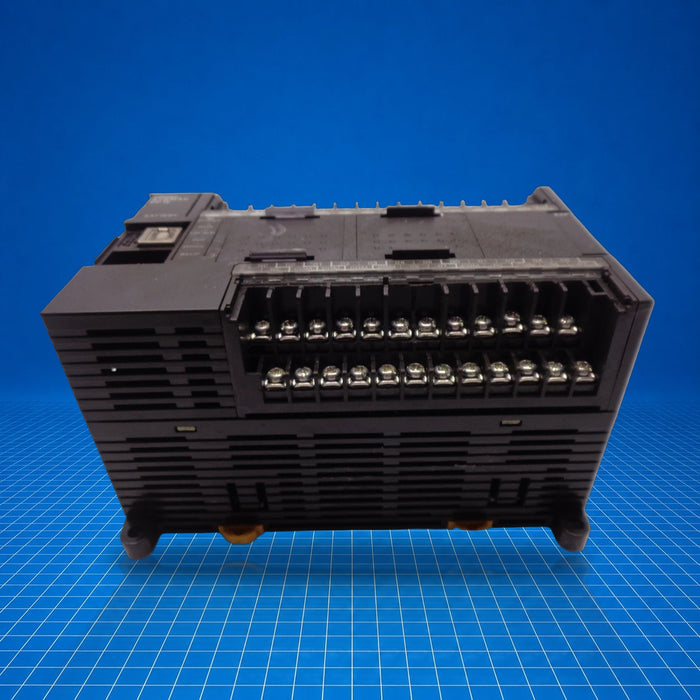

CP1E-N40DR-D Omron

Original price $525.00 - Original price $2,948.00
Original price
$525.00
$525.00 - $2,948.00
Current price $525.00
Surplus - Tested (With Warranty)
Need a Specific Revision?
$525.00
3 in stock
New / Open-Box Surplus
Need a Specific Revision?
$2,948.00
5 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (3) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Omron distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

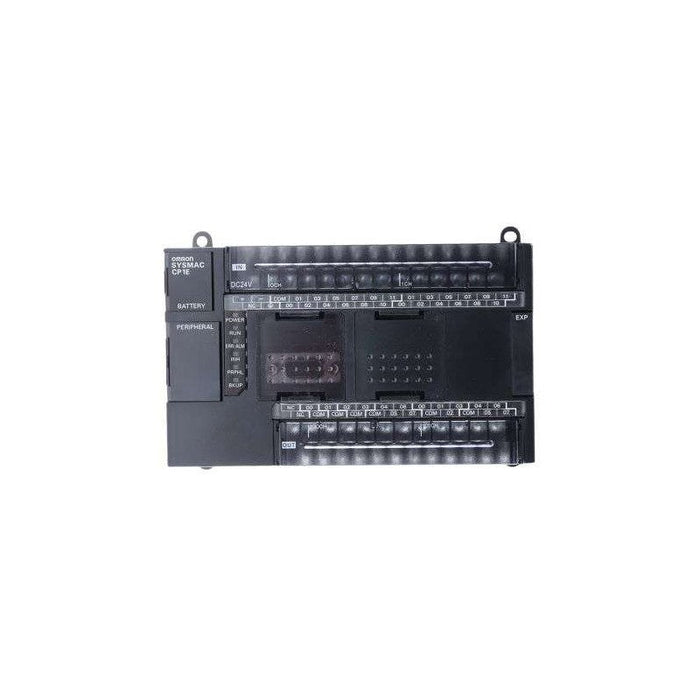

The CP1E-N40DR-D is an Omron CP1E-series programmable logic controller (PLC) CPU unit offering 40 built-in I/O points (24 inputs, 16 relay outputs) in a compact panel-mount enclosure. It implements ladder logic for automated control and supports cyclic scan I/O, high-speed counters, and pulse/output control. The CP1E family is suited for mid-range standalone control applications with optional expansion via CP1W series units. CP1E-N40DR-D integrates into small-to-mid scale industrial machinery, packaging systems, and process control requiring discrete I/O with relay output.

Best Suited For

  • Standalone machine control requiring 24 inputs and 16 relay outputs
  • Discrete I/O automation applications in packaging or material handling
  • Systems needing mid-range I/O capacity with expansion capability
  • Installation in panel-mount compact footprint environments
Built-in I/O (IN/OUT)
24 / 16
Program capacity
8 K steps (32 K bytes)
Built-in ports
USB and RS-232C
External power (24 V DC)
none
Output type
Relay

Technical Specifications

I/O & Electrical

Built-in inputs (discrete)
24
Built-in outputs (relay)
16
Maximum I/O expansion
160 points (40 × 3 CP1W expansion units)

Communication & Power

Supply voltage
24 V DC
Operating voltage range
20.4 to 26.4 V DC
Current consumption (24 V)
0.21 A
Current consumption (5 V)
0.09 A
Inrush current
30 A (20 ms cold start)
Ports
USB (B-type), RS-232C
Program capacity
8 K steps (32 K bytes)

Physical & Environmental

Dimensions (W × D × H)
90 mm × 85 mm × 150 mm
Weight
660 g max
Ambient operating temperature
0 to 55 °C
Ambient storage temperature
-20 to 75 °C (excluding battery)
Pollution degree
2 or less (IEC 61010-2-201)
Vibration resistance
JIS 60068-2-6
Shock resistance
JIS 60068-2-27

Certifications

CEUL ListedcULus
