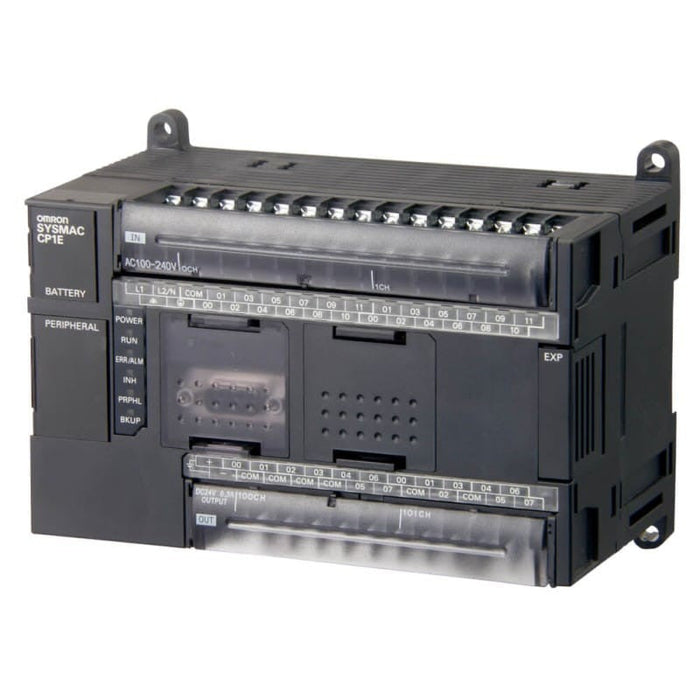

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
CP1E-N40DT-D Omron
Original price
$589.02
-
Original price
$1,933.05
Original price
$589.02
$589.02
-
$1,933.05
Current price
$589.02
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Omron CP1E-N40DT-D is a micro PLC in the CP1E family designed for compact control tasks. It provides 40 built-in I/O points (24 inputs, 16 relay outputs) in a panel-mount housing, offering ladder logic execution, immediate I/O refreshing, and expandability via CP1W-series units. Typical uses include small machine control, packaging equipment logic, and basic automation tasks where cost-effective, modular PLCs are required. CP1E-N40DT-D integrates sourcing transistor outputs and supports USB programming.
Best Suited For
- Small machine sequencing
- Packaging or material-handling logic
- Cost-sensitive PLC installations
- Applications requiring expandability via CP1W modules
Built-in I/O (inputs/outputs)
24 / 16
Program capacity
8 K steps (approx. 8 Kbytes)
External power (24 V DC) current
0.30 A
Built-in output type
Transistor (sourcing)
Expandability
Up to 3 CP1W modules (max. total 160 I/O)
Technical Specifications
I/O & Electrical
Built-in inputs
24
Built-in outputs
16 (relay)
Output type
Transistor (sourcing)
Max I/O points (with expansions)
160 (40 built-in + 40 × 3)
Communication & Power
Program capacity
8 K steps (32 Kbytes)
Data memory capacity
8 K words
External power supply (24 V DC) current
0.30 A
USB programming
Yes; high-speed USB port
Physical & Environmental
Dimensions (H × D × W)
90 mm × 85 mm × 150 mm
Mounting
Panel-mount CPU unit
Certifications
EN61131-2
Complies with EN61131-2; self-declaration according to Omron product models list.
