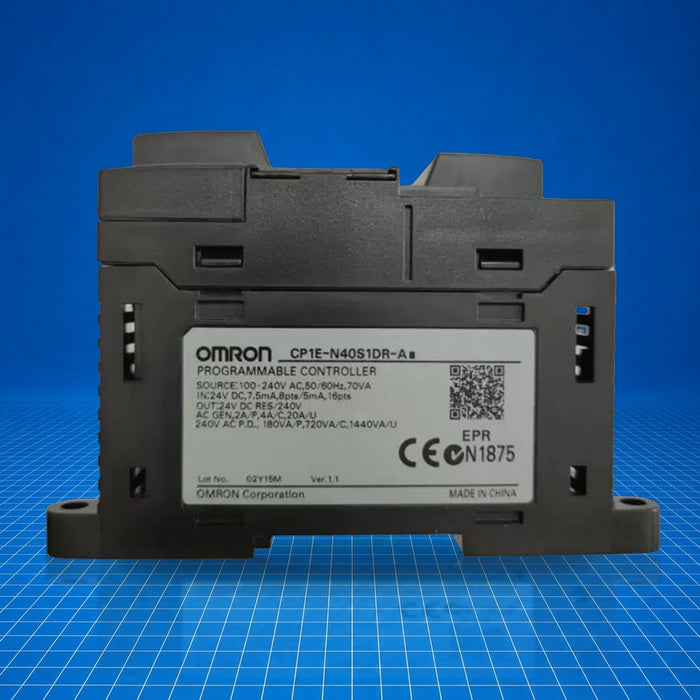

CP1E-N40S1DR-A Omron
Original price
$0.00
-
Original price
$778.94
Original price
$778.94
$0.00
-
$778.94
Current price
$778.94
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

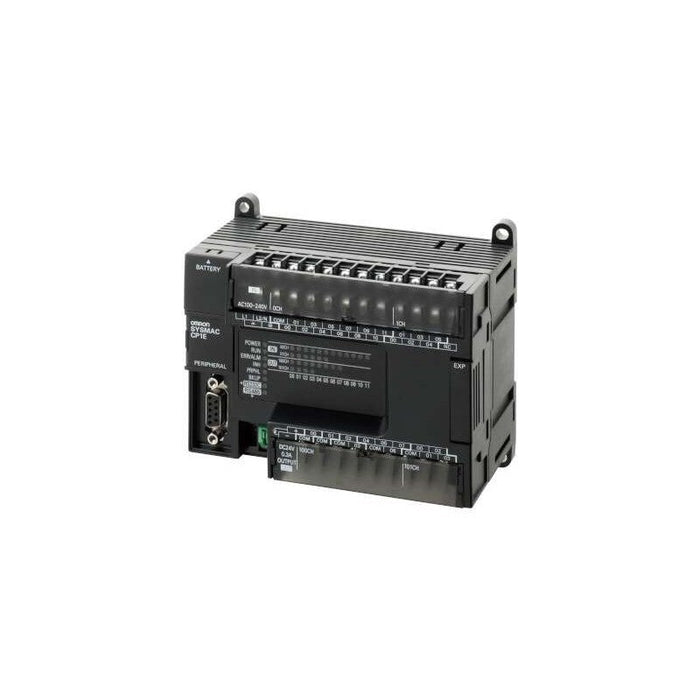

The CP1E-N40S1DR-A is an Omron CP1E "N-type" programmable logic controller (PLC) CPU unit. It provides 40 discrete I/O points (24 inputs, 16 relay outputs) and includes built-in communication ports (USB, RS-232C, RS-485). The CP1E family is designed for compact, panel-mounted control tasks, with optional expansion for additional I/O, positioning, analog, or networking. Typical industrial uses include machine control, packaging, material handling, and small automation cells requiring local I/O and serial communication. The CP1E-N40S1DR-A serves as the central logic and I/O interface in such systems.
Best Suited For
- Compact panel-mounted machine control
- Applications requiring moderate I/O count (~40 points)
- Systems needing built-in USB plus RS-232C/RS-485 connectivity
- Installations using relay outputs for signal or actuator control
Built-in I/O
40 points (24 inputs, 16 relay outputs)
Communication ports
USB + RS-232C + RS-485
Program memory
8 K steps (32 K bytes)
Expansion capability
Up to 3 CP1W expansion units
Technical Specifications
I/O & Electrical
Inputs
24 discrete
Outputs
16 relay
Maximum built-in I/O
40 points
Expansion I/O capacity
Up to 160 total I/O (40 built-in + 120 expansion)
Communication & Power
Communication ports
USB (B-type), RS-232C, RS-485
Program capacity
8 K steps (32 K bytes)
Data memory
8 K words
Supply voltage
100-240 VAC
Operating voltage range
85-264 VAC
Power consumption
50 VA max (100 VAC), 70 VA max (240 VAC)
Inrush current
120 VAC: 20 A @ 8 ms; 240 VAC: 40 A @ 8 ms
Physical & Environmental
Dimensions (HxDxW)
90 × 79 × 150 mm
Weight
≈660 g
Mounting
Panel-mounted
Ambient operating temperature
0 to 55 °C
Ambient storage temperature
-20 to 75 °C (excluding battery)
Humidity
10% to 90% non-condensing
Insulation resistance
20 MΩ min at 500 VDC (AC terminals to GR)
