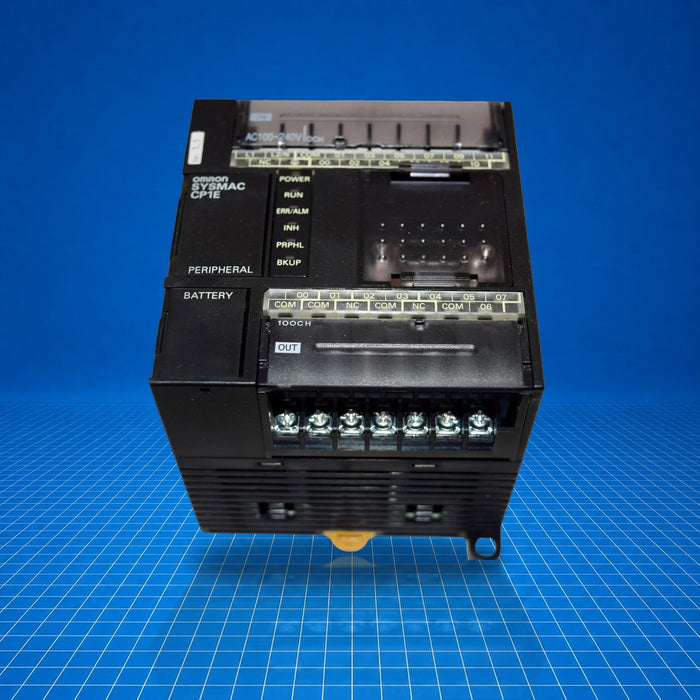

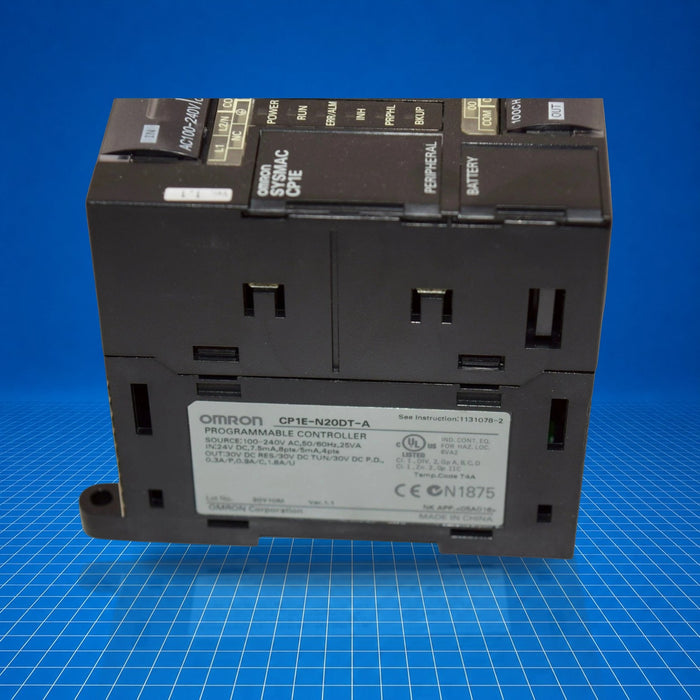

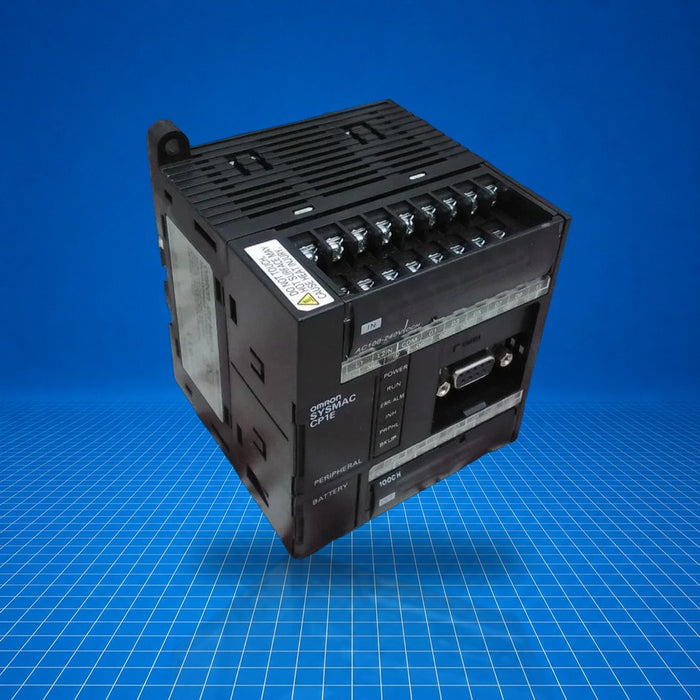

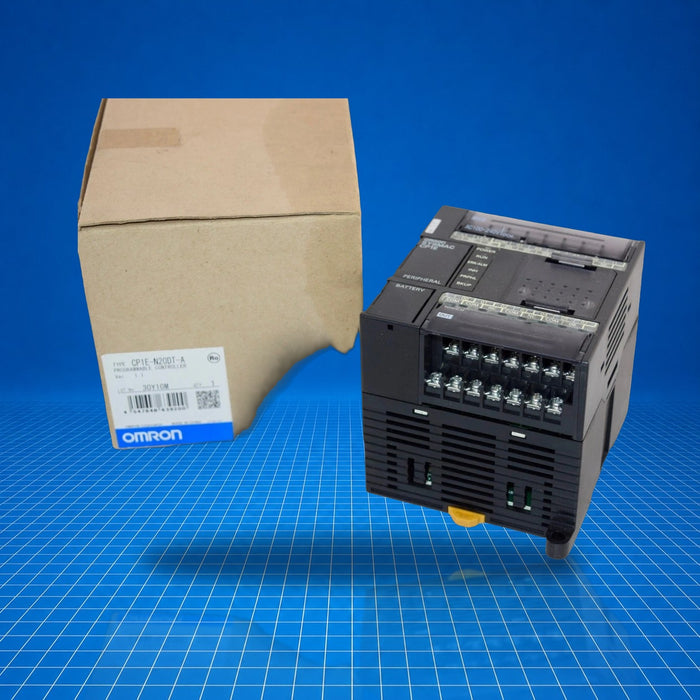

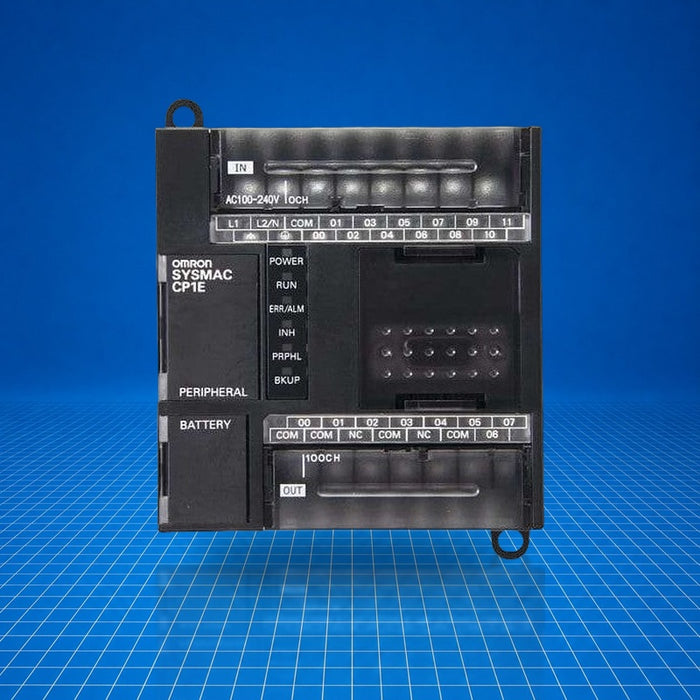

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
CP1E-N20DT-A Omron
Original price
$539.97
-
Original price
$794.75
Original price
$794.75
$539.97
-
$794.75
Current price
$794.75
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CP1E-N20DT-A is an Omron CP1E-series programmable logic controller (PLC) with built-in 20 I/O points comprising 12 inputs and 8 transistor sinking outputs. It operates from a 24 V DC supply and includes integrated USB and RS-232C ports for program loading and communication. It supports ladder logic execution with 8 K step program capacity and 8 K words data memory. Typical applications include compact machine control, packaging, conveyor systems, and general-purpose industrial automation where modular I/O and serial connectivity are required. CP1E-N20DT-A.
Best Suited For
- Compact machine control
- Conveyor system logic
- General-purpose automation
- On-machine panel integration
Built-in I/O
12 inputs / 8 sinking outputs
Supply voltage
24 V DC
Program capacity
8 K steps (32 Kbytes)
Communication ports
USB, RS-232C
Power consumption
0.23 A @ 5 V, 0.02 A @ 24 V
Technical Specifications
I/O & Electrical
Built-in inputs
12
Built-in outputs
8 sinking transistor outputs
Input voltage
24 V DC, +10 / -15 %
Input current (typical)
7.5 mA
Program capacity
8 K steps (32 Kbytes)
Data memory capacity
8 K words
Communication & Power
Communication ports
USB, RS-232C
Supply voltage
24 V DC
Current consumption
5 V: 0.23 A; 24 V: 0.02 A
Physical & Environmental
Dimensions (H × D × W)
90 mm × 85 mm × 86 mm
Weight
≈ 340 g max.
Ambient operating temperature
0 to 55 °C
Ambient storage temperature
-20 to 75 °C (excluding battery)
Altitude
≤ 2,000 m
Pollution degree
2
Certifications
EN 61131-2
Self-declared compliance with EN 61131-2.
