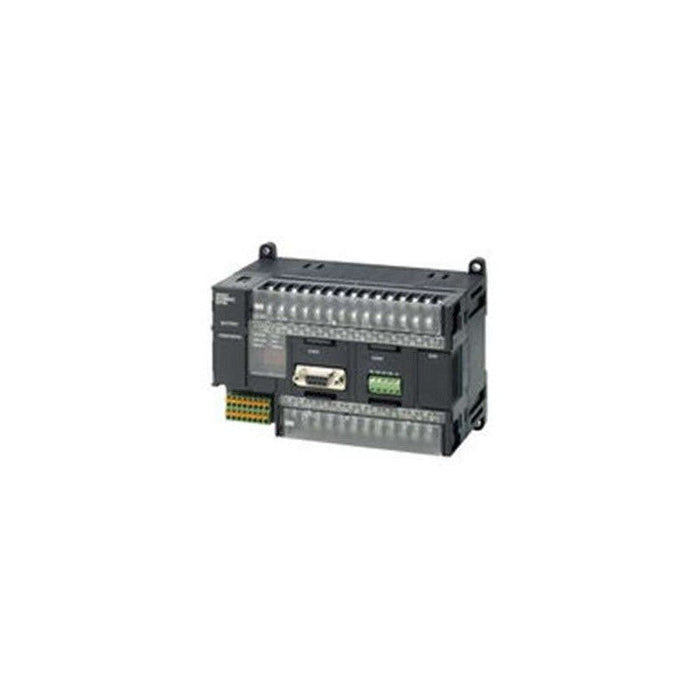

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
SKU CP1H-X40DR-A
CP1H-X40DR-A Omron
Original price
$400.00
-
Original price
$1,911.00
Original price
$400.00
$400.00
-
$1,911.00
Current price
$400.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CP1H-X40DR-A is a compact Omron CP1H series PLC CPU unit featuring built-in relay outputs for small machine control and multi-axis positioning. It uses stored-program control with a 20K-step program capacity, four high-speed counters and four pulse outputs (100 kHz, 4 axes). With 24 DC inputs and 16 relay outputs, CP1H-X40DR-A provides essential discrete control without analog I/O. It is typically used in compact machinery, packaging, motion control, and general automation tasks requiring discrete I/O and high-speed counting.
Best Suited For
- Compact machine control
- Multi-axis positioning (up to 4 axes)
- Discrete I/O applications
- Small packaging or assembly systems
Program capacity
20 K steps
High-speed counters
100 kHz, 4 axes
Pulse outputs
100 kHz, 4 axes
Inputs
24 DC
Outputs
16 relay
Technical Specifications
I/O & Electrical
Built-in inputs
24 DC
Built-in outputs
16 relay
High-speed counters
100 kHz, 4 axes
Pulse outputs
100 kHz, 4 axes
Communication & Power
Program capacity
20 K steps
Power supply (AC)
100-240 VAC, 50/60 Hz
Operating voltage range
85-264 VAC
Power consumption
100 VA max (AC model)
