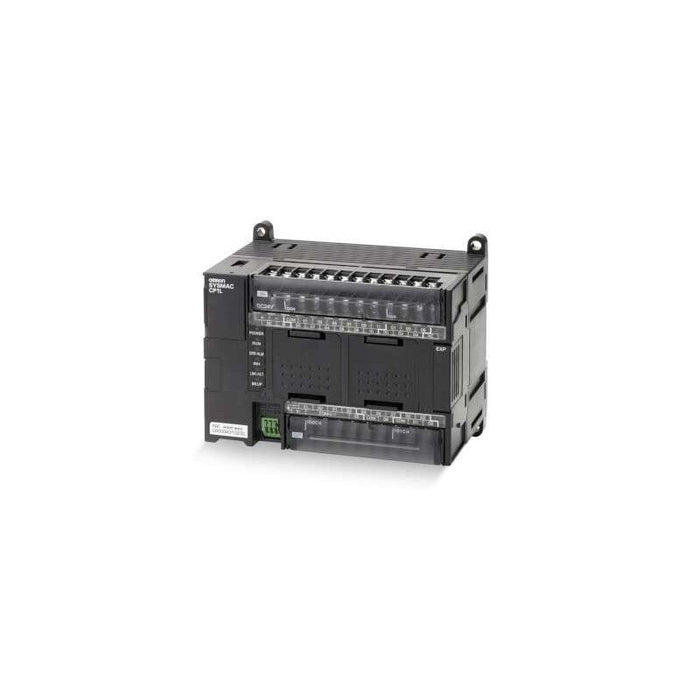

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
CP1L-EM40DT-D Omron
Original price
$531.00
-
Original price
$907.20
Original price
$907.20
$531.00
-
$907.20
Current price
$907.20
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CP1L-EM40DT-D is a micro programmable logic controller (PLC) in Omron's CP1L-EM family featuring embedded Ethernet and 40 built-in I/O points with transistor sourcing outputs. It provides 10K-step program capacity, high-speed counters (100 kHz, 4 axes), pulse outputs (100 kHz, 2 axes), and supports both ladder and Structured Text programming. It is typically used for compact machine control, on-machine sequencing, discrete logic, and remote Ethernet-based diagnostics or data access.
Best Suited For
- Compact machine control where embedded Ethernet simplifies integration
- Applications requiring moderate I/O count (40 points) with sourcing transistor outputs
- Motion-related tasks leveraging high-speed counters and pulse outputs
- Engineering environments using CX-Programmer with Ethernet-based programming or monitoring
Built-in I/O
40 points (24 inputs, 16 outputs)
Program Capacity
10 K steps
High-speed counters
100 kHz, 4 axes
Pulse outputs
100 kHz, 2 axes (transistor outputs only)
Embedded Ethernet
Yes
Technical Specifications
I/O & Electrical
Built-in inputs
24 (24 V DC)
Built-in outputs
16 (transistor sourcing)
Communication & Power
Program capacity
10 K steps
High-speed counters
100 kHz, 4 axes
Pulse outputs
100 kHz, 2 axes
Communication port
Built-in Ethernet; supports socket, message communications
Serial expansion
Up to two serial option boards (RS-232C or RS-422A/485)
Physical & Environmental
Operating voltage range
20.4 to 26.4 V DC
Power consumption
20 W max
Ambient temperature
0 to 55 °C
Ambient humidity
10 % to 90 % (no condensation)
