Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

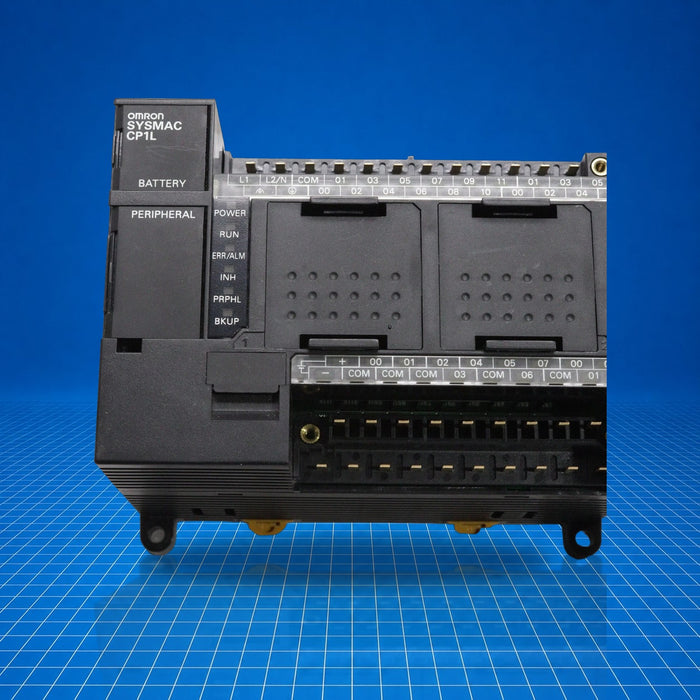

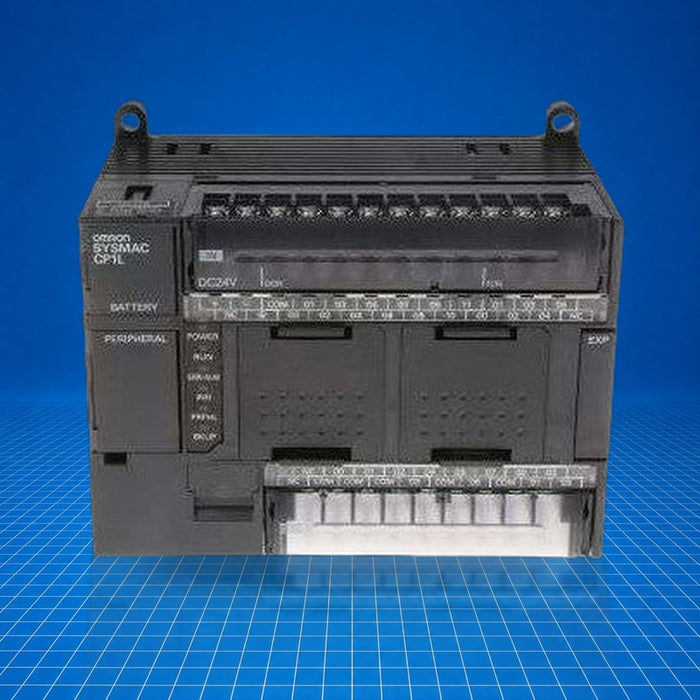

The CP1L-M30DR-A is a CPU unit in Omron's CP1L micro-PLC platform, featuring integrated I/O and embedded USB. It supports stored program execution and ladder logic for compact control applications. With 18 inputs and 12 relay outputs built-in, it accommodates up to 150 I/O points using expansion units. Typical uses include machine control, system integration, and compact automation tasks requiring local I/O and program storage in industrial environments.
Best Suited For
- Compact machine control with on-board I/O
- Distributed I/O expansion systems (up to 150 points)
- Applications requiring battery-backed memory retention
- Integration via USB for programming and monitoring
Built-in I/O
18 inputs, 12 relay outputs
Program memory
10K steps
Communication port
USB 1.1 (built-in)
Expansion capability
Up to 3 expansion units, total I/O up to 150 points
Technical Specifications
I/O & Electrical
Built-in inputs
18 (24 VDC)
Built-in outputs
12 relay outputs
Communication & Power
Supply voltage
100 to 240 VAC, 50/60 Hz
Power consumption
50 VA max
Communication port
USB 1.1 (built-in)
Physical & Environmental
Ambient operating temperature
0 to 55 °C
Ambient humidity
10% to 90% (no condensation)
Certifications
EN61131-2
Conforms to EN61131-2 (self-declaration) for CP1L-M30DR-A.
