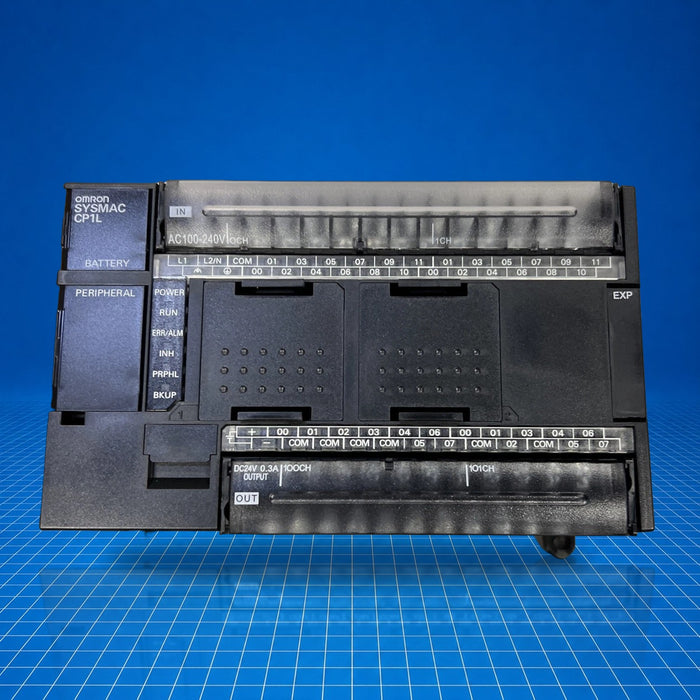

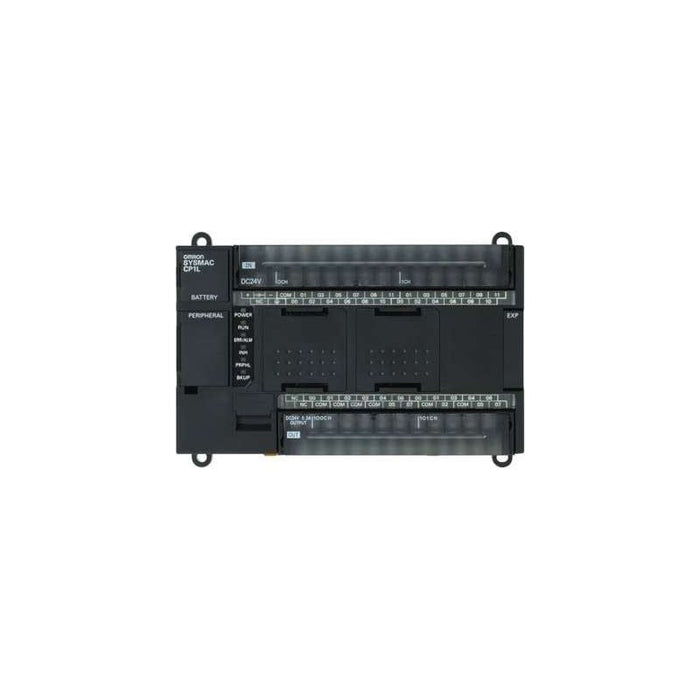

CP1L-M40DR-A Omron
Original price
$369.57
-
Original price
$1,737.50
Original price
$369.57
$369.57
-
$1,737.50
Current price
$369.57
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CP1L-M40DR-A is a compact micro-PLC from Omron's CP1L family, consisting of a CPU unit with integrated USB port and 40 built-in I/O points (24 inputs, 16 relay outputs). It features a memory capacity of 10K steps, supports high-speed counters and pulse outputs, and permits up to 3 expansion units. Typical use cases include small machinery control, packaging systems, and factory automation where compact form factor and modular expansion are required. CP1L-M40DR-A integrates basic communications and control capabilities within a micro-PLC platform.
Best Suited For
- Compact machine logic control
- Applications requiring up to 40 I/O onboard
- Systems needing high-speed counting or pulse outputs
- Environments requiring USB-based programming or firmware update
Built-in I/O (In/Out)
24 / 16
Program Memory
10 K steps
High-speed Counters
4 axes, 100 kHz
Pulse Outputs
2 axes, 100 kHz
Max Expansion Units
3
Technical Specifications
I/O & Electrical
Built-in inputs
24 (digital)
Built-in outputs
16 relay outputs
High-speed counter
4 axes, 100 kHz
Pulse outputs
2 axes, 100 kHz
Communication & Power
Power supply
100-240 VAC, 50/60 Hz
Operating voltage range
85-264 VAC
Power consumption
50 VA max
USB port
Peripheral USB (for programming)
Serial communications
Up to 2 option boards (RS-232C or RS-485)
Physical & Environmental
Ambient operating temperature
0 to 55 °C
Ambient storage temperature
-20 to 75 °C (excluding battery)
Ambient humidity
10 % to 90 % (no condensation)
Certifications
EN 61131-2
Complies with EN 61131-2 (self-declaration).
