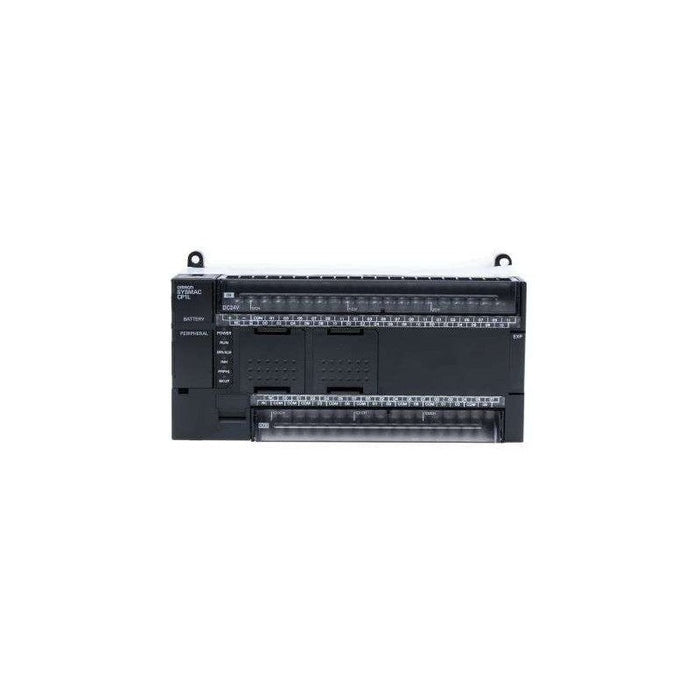

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
SKU CP1L-M60DT-D
CP1L-M60DT-D Omron
Original price
$0.00
-
Original price
$627.00
Original price
$627.00
$0.00
-
$627.00
Current price
$627.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CP1L-M60DT-D is a programmable logic controller (PLC) in Omron's CP1L-M family, featuring 60 built-in IO points and sourcing transistor outputs. It operates on 24 V DC power and includes a USB port for programming via CX-Programmer. It is intended for medium-complexity control applications, offering high-speed counters, pulse/PWM output capability, and program capacity suited to embedded machine control tasks. CP1L-M60DT-D is compatible with the wider CP1L family expansion system and supports structured text as well as ladder programming.
Best Suited For
- Mid-sized machine control with 60 I/O points
- Applications requiring sourcing transistor outputs
- Situations needing high-speed counting or pulse/PWM outputs
- Systems programmed via USB connection
- PLC users needing structured text programming support
Built-in I/O (In/Out)
60 (36 inputs, 24 outputs)
Program capacity
10 K steps
High-speed counters
100 kHz, 4 axes
Pulse/PWM outputs
100 kHz, 2 axes
Power supply
24 V DC
Technical Specifications
I/O & Electrical
Built-in inputs
36
Built-in outputs
24 (sourcing transistor)
Max expansion I/O points
180 (with up to 3 expansion units; 40 I/O per unit)
Communication & Power
Power supply (operating range)
24 V DC (20.4 to 26.4 V DC)
Power consumption
20 W max.
Inrush current
30 A max. (cold start, 20 ms max.)
Built-in communication port
USB 1.1 (for programming only)
Optional communication
Up to two serial or one Ethernet option boards
Physical & Environmental
Ambient temperature
0 to 55 °C
Ambient humidity
10% to 90% (non-condensing)
Vibration resistance
10-57 Hz 0.075 mm; 57-150 Hz 9.8 m/s², 80 min each axis
Shock resistance
147 m/s², 3 shocks each axis
Certifications
EN 61131-2
Conforms to EN 61131-2 via self-declaration.
