Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

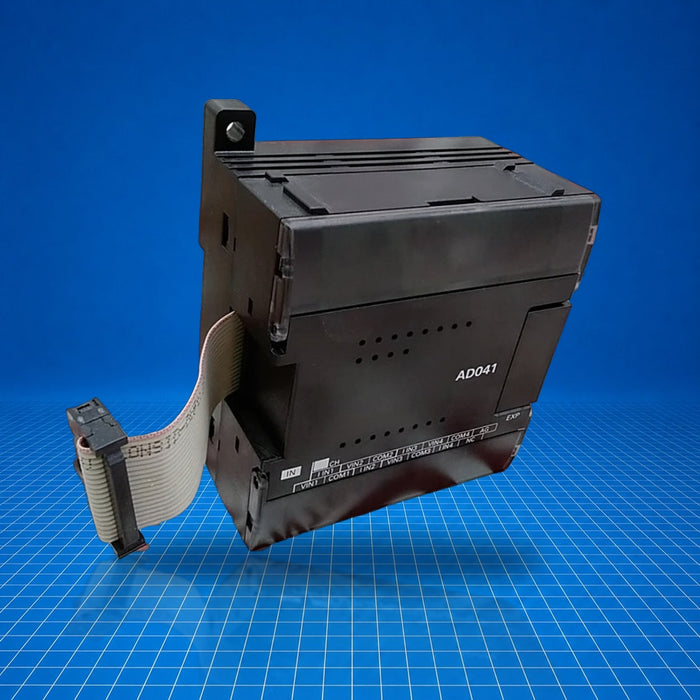

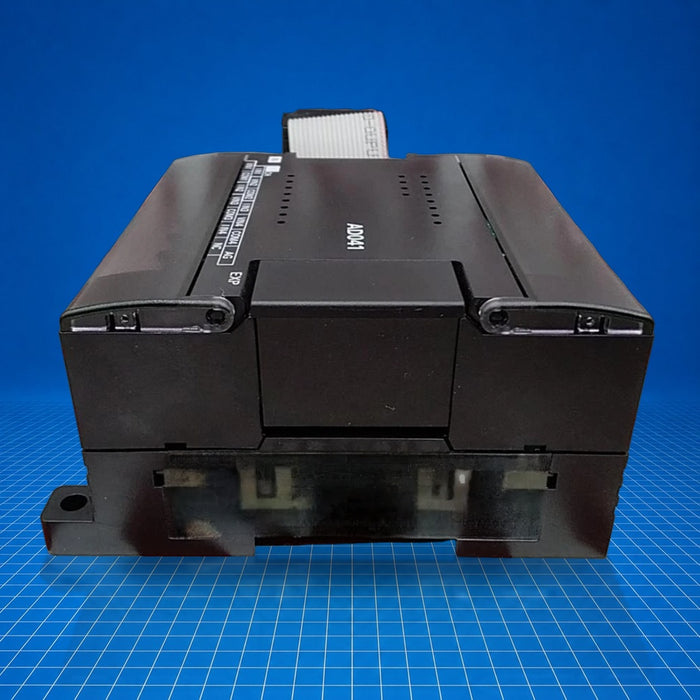

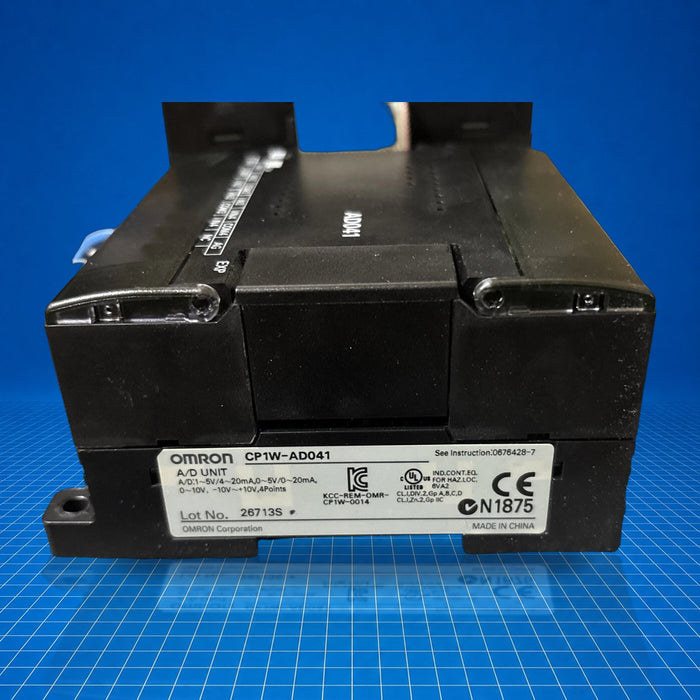

The CP1W-AD041 is an analog input expansion unit for Omron's CP1 series PLCs. It provides four independently configurable analog input channels, supporting voltage and current signal ranges. The module occupies four input words and adds precision analog sensing capability to CP1 control architectures. Omron designed part number CP1W-AD041 for use in industrial monitoring and control systems where measurement of process parameters via voltage or current signals is required, such as analog sensor integration and analog process data acquisition.
Best Suited For
- Adding analog measurement capability to CP1-series PLCs
- Monitoring 0-5 V, 0-10 V or ±10 V voltage-based transducers
- Reading 0-20 mA or 4-20 mA current-loop signals
- Process control systems requiring averaged or open-circuit detection
Analog inputs
4 channels
Signal ranges
0-5 V, 1-5 V, 0-10 V, -10-10 V, 0-20 mA, 4-20 mA
Resolution
1/6000 full scale
Conversion time
2 ms/point (8 ms all)
Input isolation
Photocoupler isolation to internal circuits
Technical Specifications
I/O & Electrical
Number of analog inputs
4
Input signal ranges
0-5 V, 1-5 V, 0-10 V, -10-10 V, 0-20 mA, 4-20 mA
Max rated input
±15 V (voltage), ±30 mA (current)
Input impedance
≥ 1 MΩ (voltage), ≈ 250 Ω (current)
Resolution
1/6000 full scale
Overall accuracy
±0.3 % FS (25 °C), ±0.6 % FS (0-55 °C), ±0.8 % FS (-20-0 °C)
A/D conversion
16-bit binary (hex), full scale ranges F448-0BB8h (±10 V), 0000-1770h (other ranges)
Conversion time
2 ms/point (8 ms all channels)
Averaging function
Supported
Open-circuit detection
Supported (1-5 V and 4-20 mA ranges)
Communication & Power
Current consumption (5 V DC)
100 mA max.
Current consumption (24 V DC)
90 mA max.
Physical & Environmental
Isolation method
Photocoupler isolation between analog input and internal circuits; no isolation between signal channels
