Product Overview

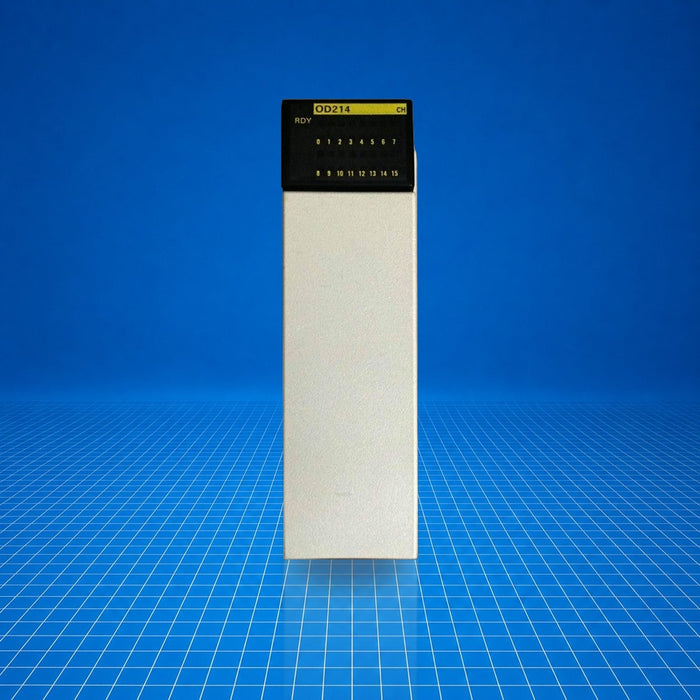

The Omron CQM1-OD214 is a 16-point transistor PNP output module in the CQM1 series of programmable controller I/O units. It provides digital switching outputs for control systems, interfacing field loads with the PLC. Typical implementations include small to medium industrial control systems for machine I/O expansion using the CQM1 platform. CQM1-OD214 facilitates precise digital control of actuators and indicators.
Best Suited For
- Digital output expansion for CQM1 systems
- PNP-type load driving in machine control cabinets
- Applications requiring 16 discrete outputs
- On-machine I/O modules in OEM or retrofit control panels
Output points
16
Residual voltage
0.8 V max.
ON delay
0.1 ms max.
OFF delay
0.4 ms max.
Technical Specifications
I/O & Electrical
Output type
Transistor PNP
Number of outputs
16 points (16 points/common, 1 circuit)
Residual voltage
0.8 V max.
ON delay
0.1 ms max.
OFF delay
0.4 ms max.
Leakage current
0.1 mA max.
Max switching capacity
50 mA at 4.5 V DC to 300 mA at 26.4 V
Communication & Power
Internal current consumption (5 V DC)
170 mA max.
Service power supply requirement
60 mA min. at 5 to 24 V DC ±10%
Physical & Environmental
Weight
0.50 lb (0.23 kg)
Certifications
EN 61131-2
EN 61131-2 (self-declaration) by Omron
