Product Overview

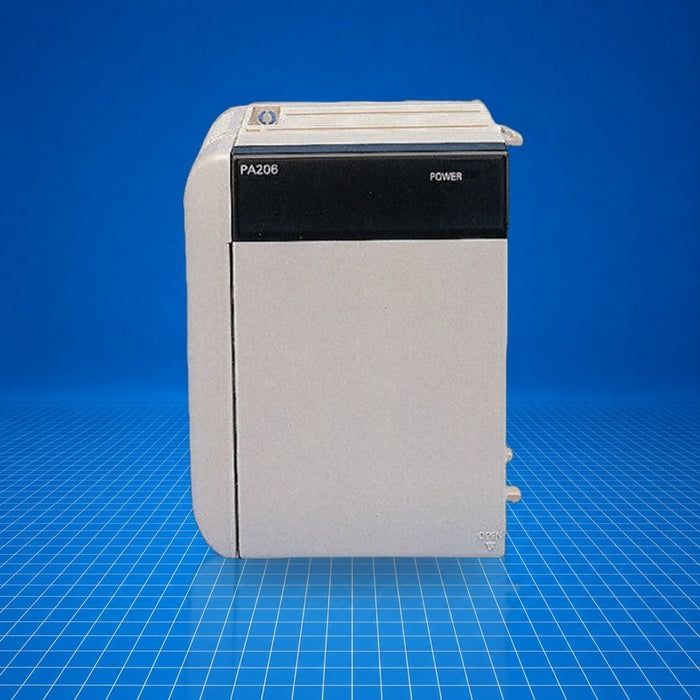

The Omron CQM1PA206 is a CQM1-series AC power supply module used as the primary power source for CQM1 programmable controller racks. CQM1PA206 accepts 100-240 VAC (47-63 Hz) input and provides dual DC outputs (5 V and 24 V) to power logic and relay I/O. It is designed for industrial control systems such as machine control panels, factory automation racks, and applications requiring stable internal logic and output supply. CQM1PA206 ensures sustained operation of CPU and I/O units under defined conditions.
Best Suited For
- Powering CQM1 PLC CPU and I/O modules
- Factory automation control panel installations
- Applications requiring dual 5 V and 24 V DC outputs
- Environments with IEC-rated noise and insulation requirements
Input voltage range
100-240 VAC
Output capacity
5 V @ 6 A; 24 V @ 0.5 A
Power consumption
120 VA max.
Operating temperature
0 °C to 55 °C
Technical Specifications
I/O & Electrical
Supply input voltage
100-240 VAC, 50/60 Hz
Operating input voltage range
85-264 VAC
Operating frequency range
47-63 Hz
Power consumption
120 VA max.
Inrush current
30 A max.
Output 5 V
6 A
Output 24 V
0.5 A
Total output capacity
30 W
Communication & Power
Insulation resistance
20 MΩ min. at 500 V DC
Dielectric strength
2,300 VAC (AC ext to GR), 1,000 VAC (DC ext to GR)
Noise immunity
Conforms to IEC 61000-4-4
Physical & Environmental
Weight
1.25 lb (0.57 kg)
Vibration resistance
10-57 Hz @ 0.075 mm; 57-150 Hz @ 9.8 m/s²
Shock resistance
147 m/s² (X, Y, Z)
Ambient operating temperature
0 °C to 55 °C
Storage temperature
-20 °C to 75 °C
Certifications
May comply with EN 61131-2 per CQM1-PA203/PA216 listings; actual certification for CQM1PA206 not confirmed.
