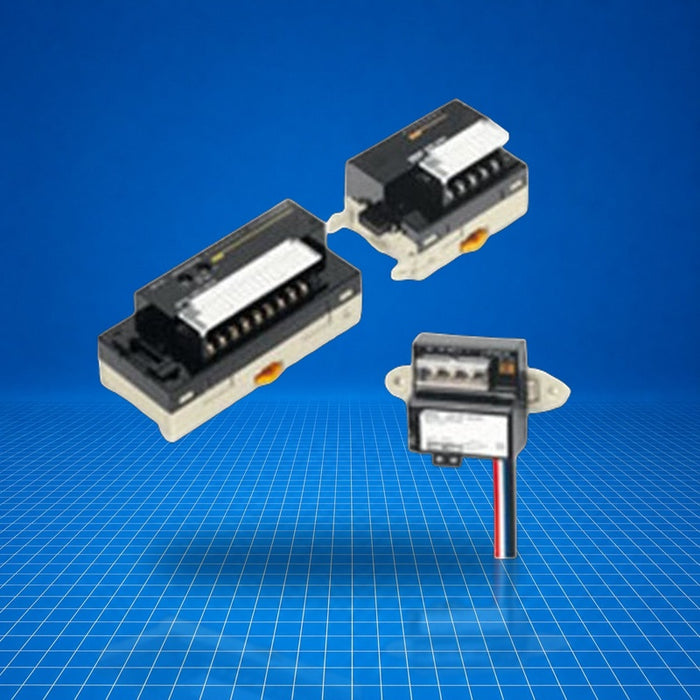

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
CRT1-ID16TA Omron
Original price
$404.97
-
Original price
$599.97
Original price
$404.97
$404.97
-
$599.97
Current price
$404.97
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CRT1-ID16TA from Omron is a 16-point digital input slave unit in the CRT1 series, designed for CompoNet network systems. It provides discrete input acquisition for distributed field devices and transmits status data to a master node. Typically used for machine-level I/O expansion, remote monitoring of sensors, and integration in automated manufacturing cells, CRT1-ID16TA supports control systems requiring modular I/O distribution over CompoNet.
Best Suited For
- Distributed digital input expansion via CompoNet
- Machine-level sensor status acquisition
- Field I/O on DIN-rail installations
- Remote diagnostics of input modules
Inputs
16
Internal I/O common
NPN
Communications supply voltage
14-26.4 V DC
Input current (24 V DC)
6.0 mA max./input
Weight
330 g max.
Technical Specifications
I/O & Electrical
I/O capacity
16 inputs
Internal I/O common
NPN
ON voltage
15 V DC min. (between each input terminal and the V terminal)
OFF voltage
5 V DC max. (between each input terminal and the V terminal)
OFF current
1.0 mA max.
Input current
At 24 V DC: 6.0 mA max./input; at 17 V DC: 3.0 mA min./input
ON delay
1.5 ms max.
OFF delay
1.5 ms max.
Number of circuits per common
8 inputs/common
Isolation method
Photocoupler
Input indicator
LED (yellow)
Communication & Power
Communications power supply voltage
14-26.4 V DC
I/O power supply voltage
20.4-26.4 V DC (24 V DC -15%/+10%)
Communications supply current consumption
40 mA max. for 24 V DC; 55 mA max. for 14 V DC
Physical & Environmental
Ambient operating temperature
-10 to 55 °C
Ambient operating humidity
25% to 85% (no condensation)
Storage temperature
-25 to 65 °C
Storage humidity
25% to 85% (no condensation)
Vibration resistance
10-60 Hz double-amplitude 0.7 mm; 60-150 Hz 50 m/s², 80 min each axis
Shock resistance
150 m/s² (three times each in six directions)
Dielectric strength
500 VAC (between isolated circuits)
Insulation resistance
20 MΩ min. (between isolated circuits)
Installation
35-mm DIN-Track or mounting bracket or M4 screws
Terminal block screw torque
M3 wiring screws: 0.5 Nm; M3 mounting screws: 0.5 Nm
Weight
330 g max.
