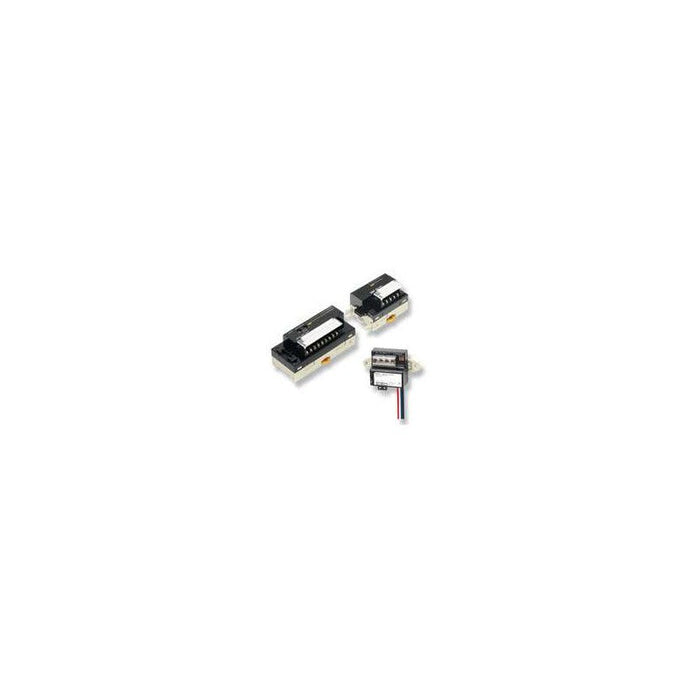

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
CRT1-OD16-1 Omron
Original price
$400.00
-
Original price
$600.00
Original price
$400.00
$400.00
-
$600.00
Current price
$400.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The CRT1-OD16-1 is an Omron CRT1-series 16-point digital output slave unit designed for use on CompoNet networks. It provides PNP transistor outputs and integrates into compact IP20-rated I/O systems for machine control, conveyor systems, or modular automation architectures. Its function is to switch field loads via standardized CompoNet remote I/O modules, offering diagnostic indicators and configurable error handling via CX-Integrator. CRT1-OD16-1 supports mixed power arrangements typical in mid-tier industrial automation racks.
Best Suited For
- CompoNet-based decentralised I/O systems
- Machine control applications requiring modular expansion
- Conveyor or material handling automation
- Situations requiring selectable output behaviour on communications errors
Output points
16
Output type/common
PNP / 4 A common
Rated load per point
0.5 A/output
Residual voltage
1.2 V max.
DIN-rail mounting
Yes
Technical Specifications
I/O & Electrical
I/O capacity
16 outputs
Output type / I/O common
PNP / 4 A common
Rated output current
0.5 A/output
Residual voltage
1.2 V max.
Leakage current
0.1 mA max.
ON-delay
0.5 ms max.
OFF-delay
1.5 ms max.
Isolation method
Photocoupler
Output indicators
LED (yellow)
Communication & Power
Communications power supply current consumption
55 mA max. (24 V DC) / 85 mA max. (14 V DC)
I/O power supply current consumption
15 mA max. (24 V DC)
Physical & Environmental
Mounting
DIN-Track mounting
Weight
141 g max.
