SKU CS1W-AD041-V1
CS1W-AD041-V1 Omron
Original price
$400.00
-
Original price
$824.97
Original price
$400.00
$400.00
-
$824.97
Current price
$400.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

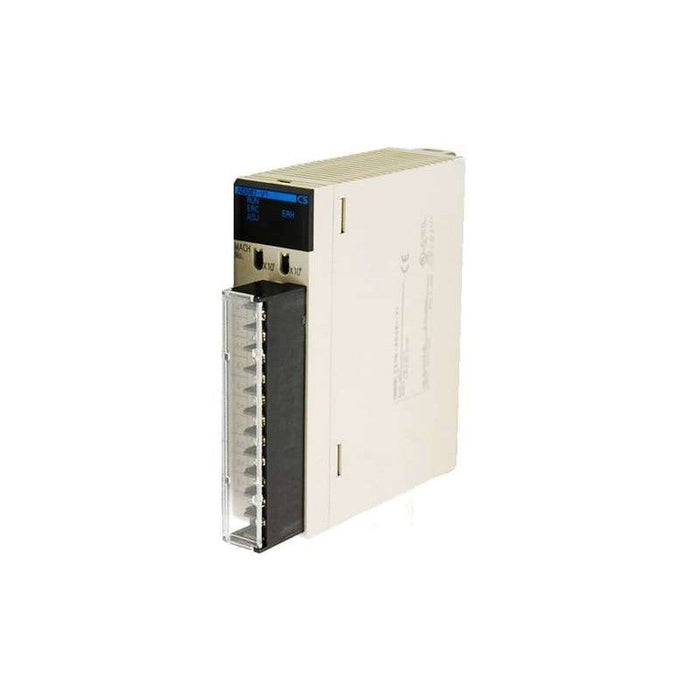

The CS1W-AD041-V1 is an Omron SYSMAC CS-series analog input unit (Special I/O Unit) intended for mounting in a CS-series CPU or expansion rack. It provides four analog input channels supporting voltage and current ranges, converting signals into 16-bit binary data for PLC processing. It occupies one I/O unit slot and is commonly used for interfacing analog sensors (e.g., transmitters for position, pressure, temperature, flow) into the CS1 PLC system. CS1W-AD041-V1 enables integration of analog field devices into machine or process control architectures.
Best Suited For
- Interfacing 4 analog sensors into Omron CS1-series PLC
- Voltage or current input acquisition in process control
- Rack-mounted CS1 system analog expansion
- Conversion of analog signals to digital via A/D onboard unit
Analog inputs
4 channels
Selectable input ranges
1-5 V, 0-5 V, 0-10 V, -10-10 V, 4-20 mA
Resolution / speed
4 000 or 8 000 steps; 1 ms or 250 µs per point
Power consumption
120 mA @ 5 V DC; 90 mA @ 26 V DC
Technical Specifications
I/O & Electrical
Number of inputs
4
Input signal ranges
1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA
Input selection method
Voltage/current switch on terminal block
Input impedance
Voltage: ≥ 1 MΩ; Current: 250 Ω
Maximum rated input
Voltage: ±15 V; Current: ±30 mA
Communication & Power
Data output
16-bit binary data
Conversion area
CIO (10 words) and DM (100 words) per unit
Power consumption
120 mA @ 5 V DC; 90 mA @ 26 V DC
Physical & Environmental
External terminals
21-point detachable terminal block (M3 screws)
Dimensions (W×H×D)
35 × 130 × 126 mm
Weight
450 g (max)
Mounting
CS-series CPU or expansion rack
Affect on CPU cycle time
+0.2 ms
