Product Overview

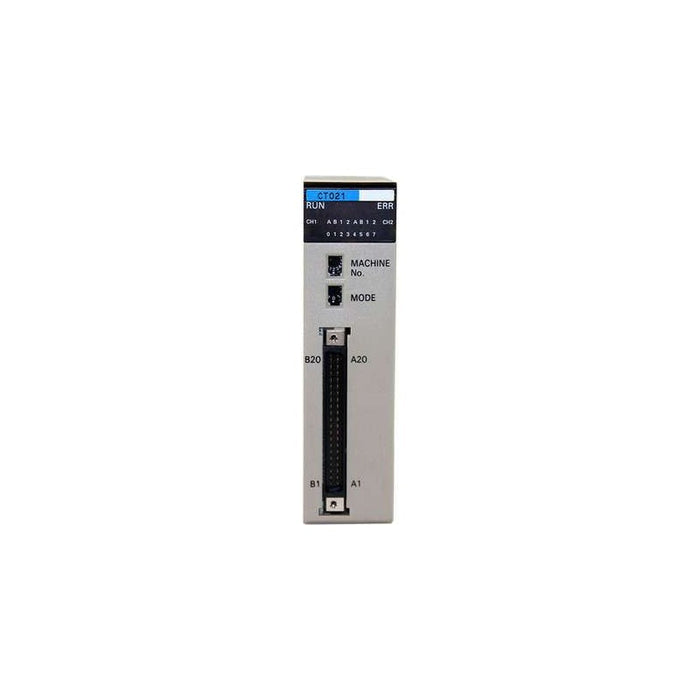

The CS1W-CT021 is an Omron high-speed counter special I/O unit for the CS1-series PLC platform. It provides dual-axis counting functionality, interfacing with encoders via differential or single-ended inputs. It is typically used in motion control or positioning applications in industrial systems, mounted within a CS1 CPU or expansion rack. CS1W-CT021 enables pulse counting, rate measurement, and programmable output generation in automation processes.
Best Suited For
- Dual-axis encoder pulse counting
- On-machine position or speed measurement
- Integration with CS1 PLC rack systems
- Counting with pulse rate thresholds
Count channels
2
Input voltage options
5, 12, or 24 V DC
Maximum count frequency
500 kHz (RS-422), 50 kHz (single-ended)
Current consumption
0.36 A (5 V) approx.
Operating temperature
0 to 55 °C
Technical Specifications
I/O & Electrical
Counter inputs voltage
5, 12, or 24 V DC
Input current (typical)
5 V: varies (e.g. 6 mA Z, 7 mA A/B), 12 V: ~6-8 mA, 24 V: ~7-8 mA
Maximum input frequency
50 kHz (single-ended), 500 kHz (RS-422)
Digital outputs
2 (NPN/PNP selectable), plus 30 soft outputs
Output driver type
Open-collector, NPN or PNP selectable
Output switching capacity
5 mA min to 46 mA at 10.2 V-100 mA at 26.4 V (max 200 mA per common)
Communication & Power
Internal current consumption
280 mA at 5 V
Data exchange
CIO-bits 200000-255915, CIO-words 2000-2959; 400 DM-words per unit
Physical & Environmental
Dimensions (W×H×D)
31 × 90 × 65 mm
Weight
100 g
Operating temperature
0 to 55 °C
Storage temperature
-20 to 75 °C
Operating humidity
10% to 90% non-condensing
Mounting
CS1 CPU or expansion rack
Certifications
CEcULusNKLloyd
Conforms to EN61131-2, EN61000-6-4, EN61000-6-2 (self-declaration).
