SKU CS1W-NC113
CS1W-NC113 Omron
Original price
$0.00
-
Original price
$1,935.50
Original price
$1,935.50
$0.00
-
$1,935.50
Current price
$1,935.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

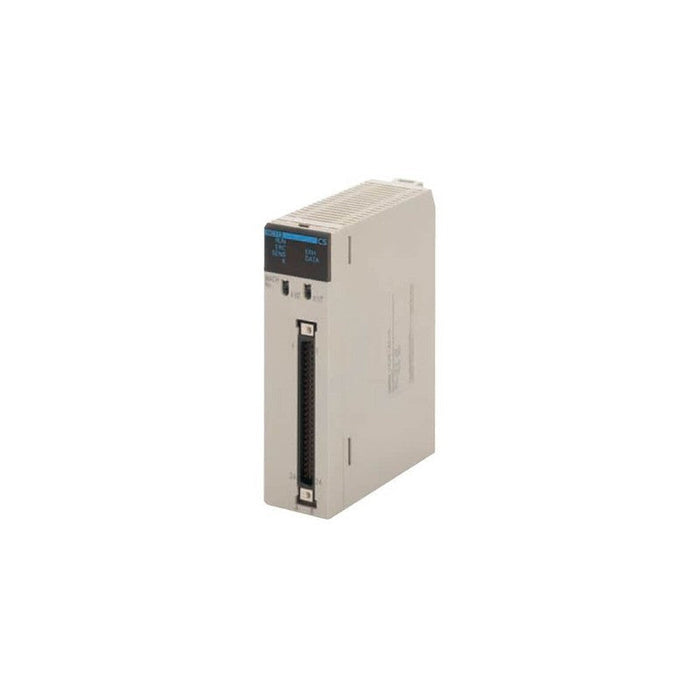

The CS1W-NC113 is a Position Control Unit (PCU) from Omron's SYSMAC CS1 series, designed for pulse-train output positioning control. It supports single-axis open-loop control by pulse train output and attaches to the CS1 programmable controller rack, enabling timed motion control of servo or stepper drives. Typical industrial uses include integration of motion control into compact PLC systems for machine tooling, material handling, or indexing applications. CS1W-NC113.
Best Suited For
- Single-axis positioning in CS1 PLC systems
- Open-loop servo or stepping motor control
- Compact motion integration into CS1 systems
- Factory automation with SYSMAC CS series
Control axes
1 axis
Control interface
Pulse-train output (open-collector)
Internal current (5 V DC)
250 mA max.
External current (24 V DC)
30 mA max.
Dimensions (H × W × D)
90 × 31 × 65 mm
Technical Specifications
I/O & Electrical
Internal power supply voltage
5 V DC
Allowable internal voltage range
4.75 to 5.25 V DC
External power supply voltage
24 V DC
Allowable external voltage range
21.6 to 26.4 V DC
Internal current consumption
250 mA max. at 5 V DC
External current consumption
30 mA max. at 24 V DC
Physical & Environmental
Dimensions (H × W × D)
90 × 31 × 65 mm
Weight
100 g max.
Ambient operating temperature
0 to 55 °C
Certifications
ULCSACE
Conforms to general CS Series standards; safety standards: UL, CSA, EC (EMC Directive)
