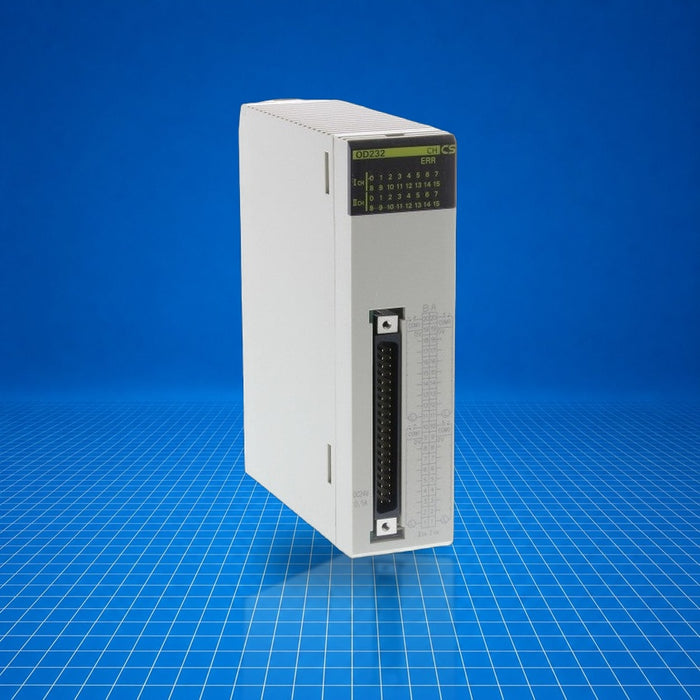

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
SKU CS1W-OD232
CS1W-OD232 Omron
Original price
$618.75
-
Original price
$1,552.50
Original price
$618.75
$618.75
-
$1,552.50
Current price
$618.75
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
CS1W-OD232 is an Omron CS1 series basic transistor output unit providing 32 sourcing (PNP) outputs via a single MIL connector. As part of the CS1 I/O expansion family, it mounts on CS-series CPU or expansion racks and serves to interface PLC logic to field devices requiring sourcing outputs, particularly in industrial automation systems requiring fault detection. Typical applications include driving sensors, indicator lamps, or low-current actuators from CS1-class PLCs; the unit includes short-circuit protection and incorporates diagnostics.
Best Suited For
- CS1 series PLC expansions requiring sourcing outputs
- Applications needing load short-circuit detection and automatic restart
- Field wiring via MIL-style connector
- Compact 32-point sourcing output in a single slot unit
Output points
32
Sourcing outputs
PNP
Load short-circuit protection
Yes
Connector type
MIL connector
Mounting
CS-series CPU or expansion rack
Technical Specifications
I/O & Electrical
Rated voltage
24 V DC
Operating load voltage range
20.4 to 26.4 V DC
Maximum load current
0.5 A/point, 2.0 A/common, 4.0 A/Unit
Leakage current
0.1 mA max.
Residual voltage
1.5 V max.
ON response time
0.5 ms max.
OFF response time
1.0 ms max.
Load short-circuit protection
Detection current 0.7-2.5 A; automatic restart
Internal current consumption
5 V DC, 150 mA max.
External power supply
20.4 to 26.4 V DC, 70 mA min.
Physical & Environmental
Number of circuits
32 (16 points/common, 2 circuits)
Insulation resistance
20 MΩ (100 V DC, between external terminals and GR)
Dielectric strength
1,000 VAC for 1 min (10 mA max.) between external terminals and GR
Weight
80 g max.
