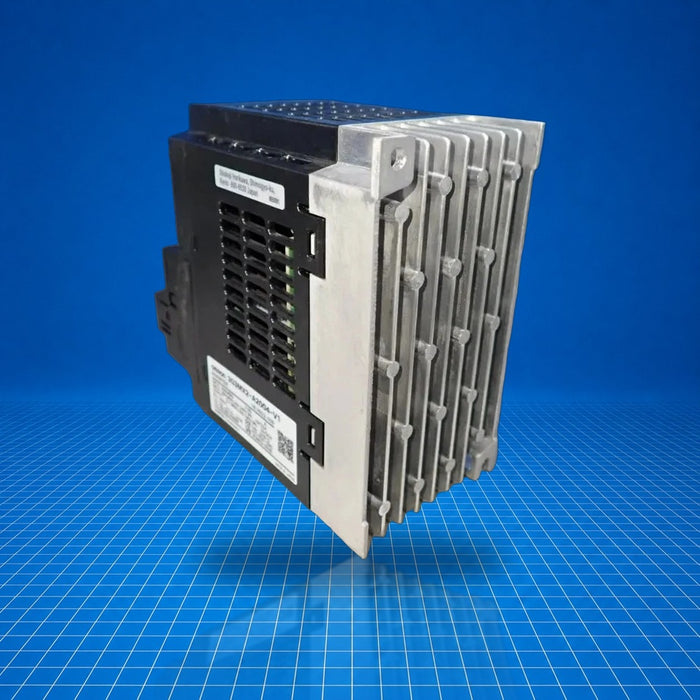

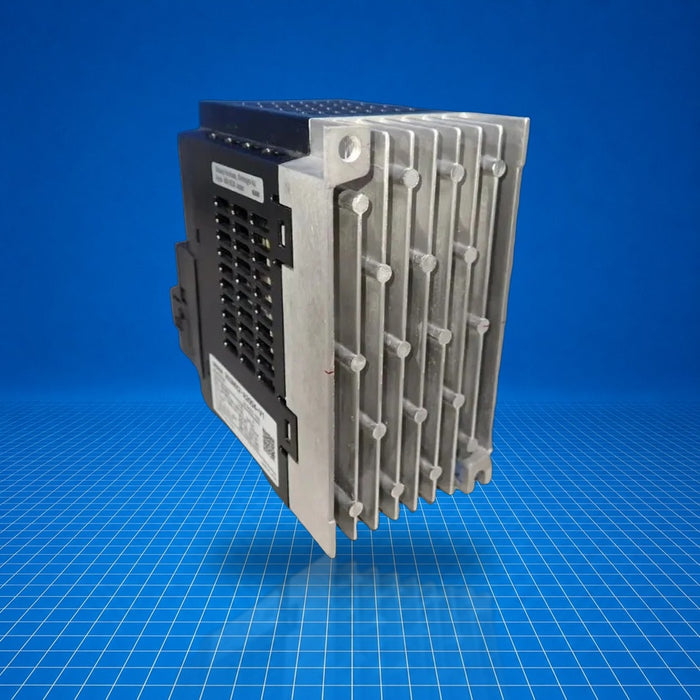

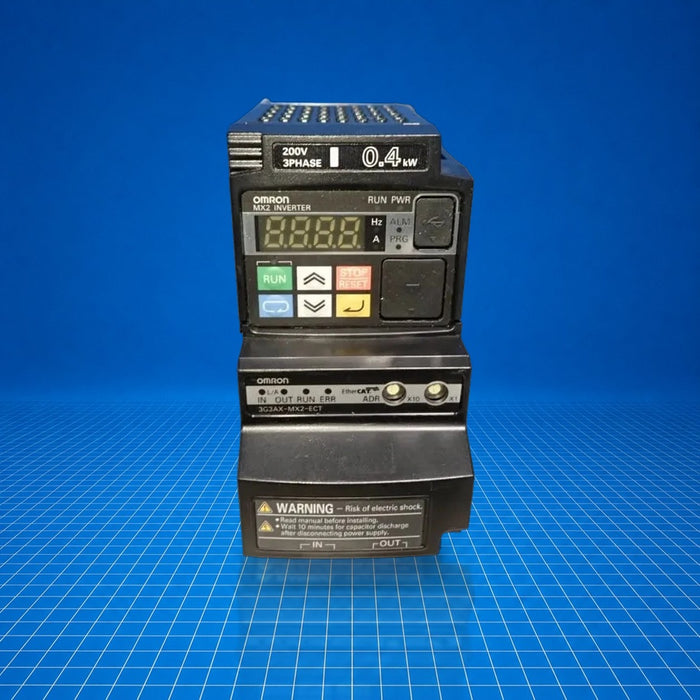

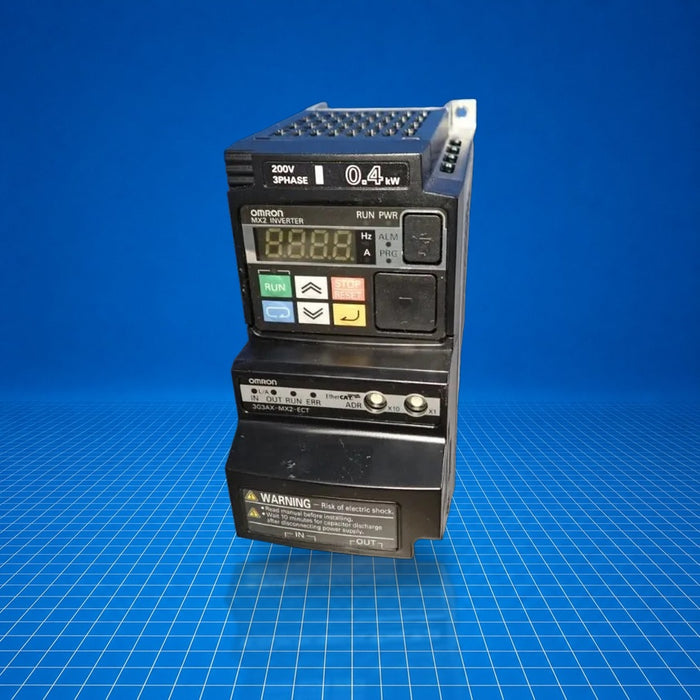

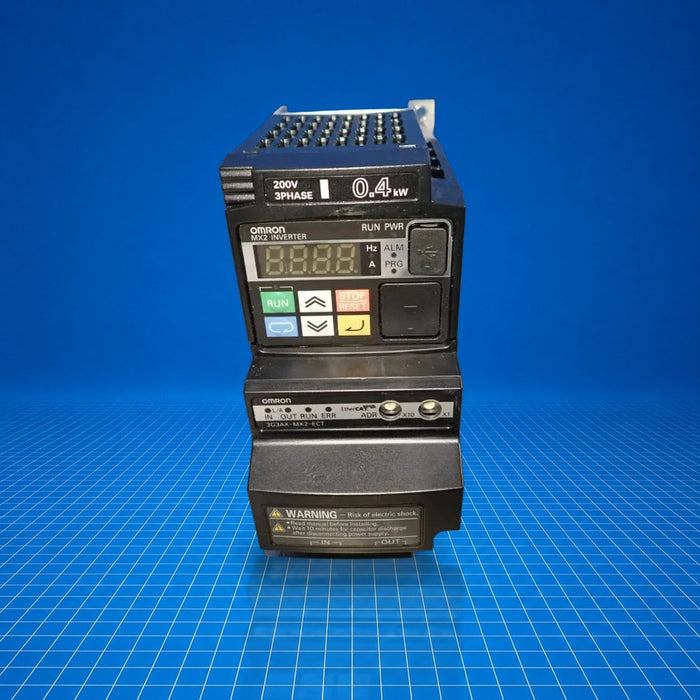

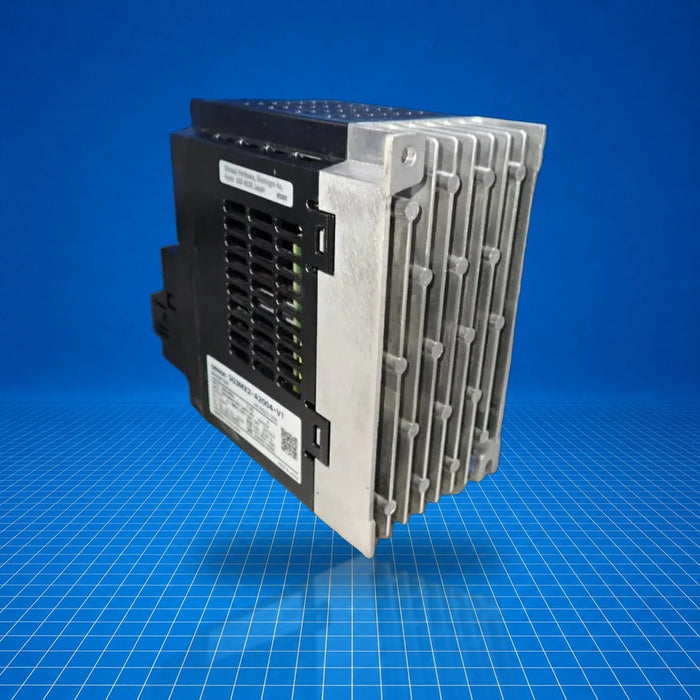

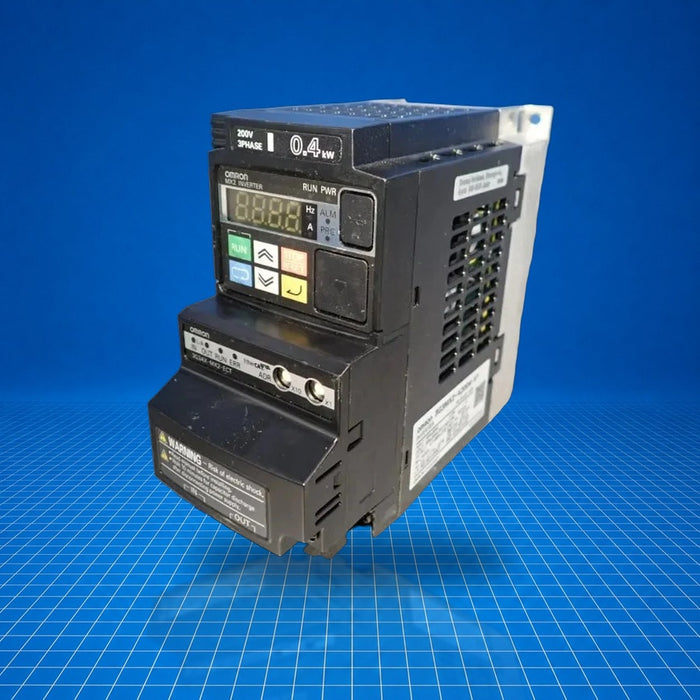

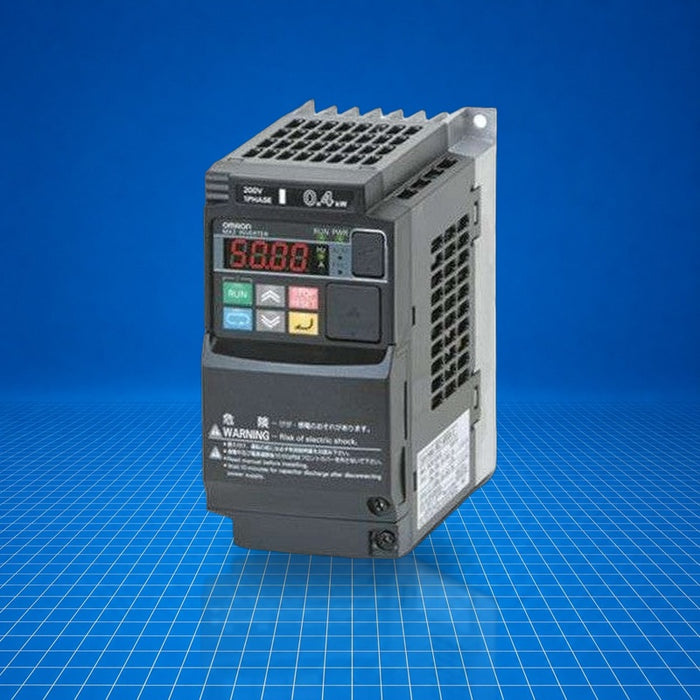

3G3MX2-A2004-V1 Omron
Original price
$377.97
-
Original price
$862.48
Original price
$377.97
$377.97
-
$862.48
Current price
$377.97
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Omron 3G3MX2-A2004-V1 is a V1-type multi-function compact inverter from the MX2 series, designed for 3-phase 200 V systems. It regulates motor speed and torque using V/f and sensorless vector control, delivering up to 0.4 kW (normal load) and 0.75 kW (light load). Suitable for applications requiring modest horsepower-such as machine tools, conveyors, fans, and pumps-the A2004-V1 includes built-in Modbus communication and safety functions (STO, Cat 3). Discontinued with last order date February 17, 2023 and service supported through March 31, 2031.
Best Suited For
- Mid-range 3-phase 200 V induction motor control
- Conveyor or pump speed regulation
- Energy-efficient machine tool drives
- Applications requiring safe torque off (STO) functionality
- Installations with Modbus fieldbus integration
Motor capacity (ND/LD)
0.4 kW / 0.75 kW
Input voltage
3-phase 200 V (-15 % to +10 %), 50/60 Hz ±5 %
Safety function
STO, Cat 3
Communication
Modbus built-in
Discontinued status
Last order date 02/17/2023
Technical Specifications
I/O & Electrical
Input voltage
3-phase 200 V -15 % to +10 %, 50/60 Hz ±5 %
Supply voltage
240 VAC
Output motor capacity
0.4 kW (normal load), 0.75 kW (light load)
Constant-torque current
3.0 A
Variable-torque current
3.5 A
Starting torque
200 %
Communication & Power
Control type
V/f & Sensorless Vector
Built-in communications
Modbus
Safety functionality
CAT3, STO
Physical & Environmental
Mounting
Vertical mount
Speed range
0.01-400 Hz
