SKU NS5-SQ11B-V2
NS5-SQ11B-V2 Omron
Original price
$756.22
-
Original price
$3,056.40
Original price
$756.22
$756.22
-
$3,056.40
Current price
$756.22
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

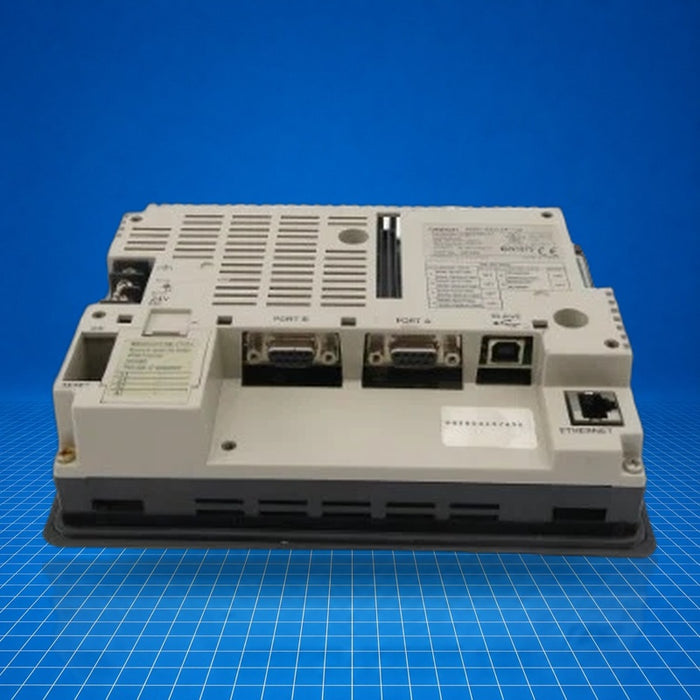

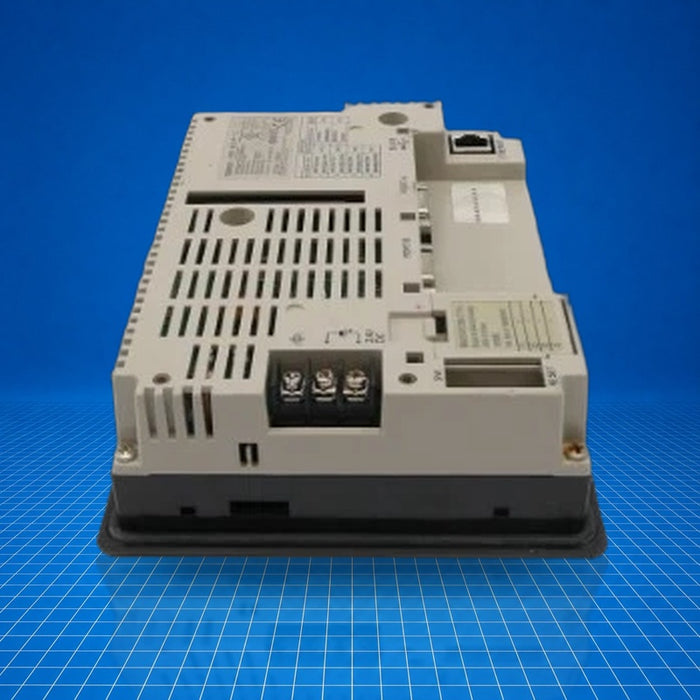

The NS5-SQ11B-V2 is a 5.7-inch color TFT programmable terminal (HMI) in Omron's NS5-V2 family. It provides operator interface functionality in machine and process control systems. The device supports Ethernet connectivity, color graphics, and resistive touchscreen input for monitoring and control in industrial automation settings. NS5-SQ11B-V2 is suited for integration with Omron PLCs using CX-Designer software and typically serves human-machine communication in assembly lines, packaging, and batch processing systems.
Best Suited For
- Applications requiring Ethernet-connected operator interface
- 5.7-inch color TFT HMI replacement in NS-V2 systems
- On-machine panel for small footprint control stations
- Legacy NS5-V2 deployments needing continued support
Display
5.7-inch color TFT, 320×240 dots
Touch panel type
Matrix resistive membrane, 300 switches (20×15)
Screen memory
60 Mbytes
Built-in Ethernet
Yes
Power consumption
25 W max. (15 W for NS5)
Technical Specifications
I/O & Electrical
Rated supply voltage
24 V DC
Allowable voltage range
20.4 to 27.6 V DC
Power consumption
25 W max. (15 W max for NS5)
Communication & Power
Ethernet connectivity
Built-in Ethernet (10Base-T/100Base-TX)
USB Slave
USB 1.1 Type-B (for CX-Designer)
Serial ports
Port A and Port B: RS-232C, 5 V output (250 mA max) each, not simultaneous
Physical & Environmental
Operating temperature
0 to 50 °C (with restrictions by mounting angle)
Storage temperature
-20 to 60 °C
Ambient humidity
35-85 % (0-40 °C), 35-60 % (40-50 °C)
Vibration resistance
10-57 Hz, 0.075 mm; 57-150 Hz, 9.8 m/s² (X, Y, Z, 30 min)
Shock resistance
147 m/s², 3 times (X, Y, Z)
Front panel protection
IP65F / NEMA 4 (front)
Certifications
cULusCE
