Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

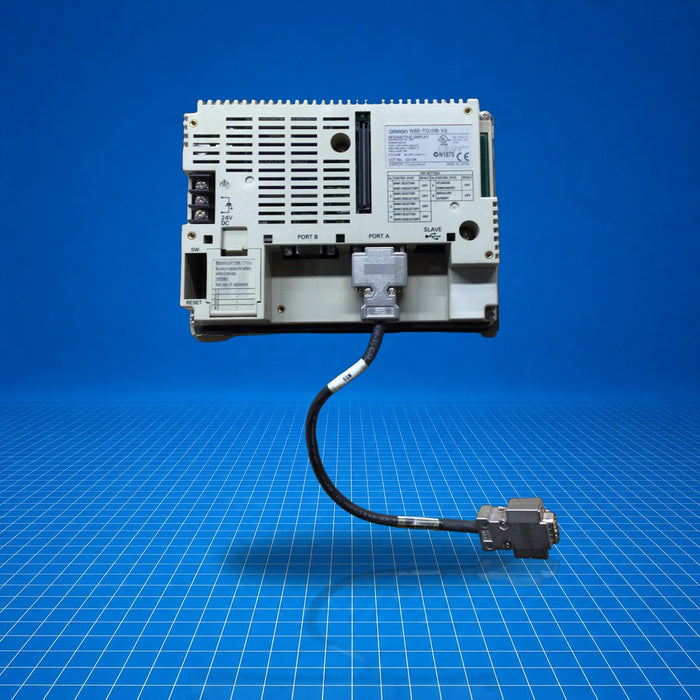

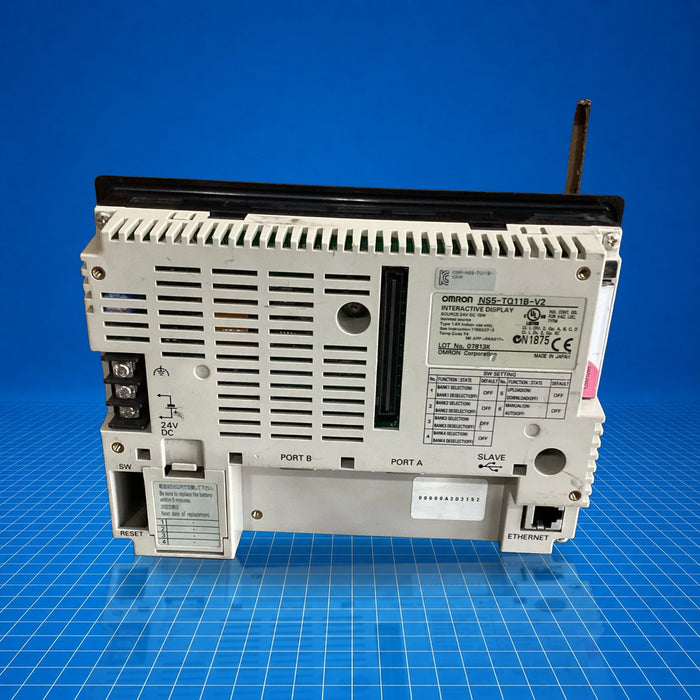

The NS5-TQ11B-V2 is a 5.7-inch high-luminance TFT color Programmable Terminal (HMI) in Omron's NS5-V2 series. It features VGA-level resolution (320 × 240 dots, 256 colors) and around 60 MB of screen data memory. Designed for machine-level operator interfacing, it integrates into control systems to display graphics, alarms, and simple navigation. It is typically installed on machinery control panels or production lines where visibility and basic HMI functionality are required. Part number NS5-TQ11B-V2.
Best Suited For
- Panel-mounted machine operator interfaces
- Low-resolution graphic and alarm displays
- NS-series HMI integration where Ethernet is not required
- Applications needing a high-luminance TFT for visibility
- Replacement in existing NS5-TQ installations
Display size
5.7 inch
Resolution
320 × 240 dots
Color depth
256 colors
Screen memory
60 MB
Technical Specifications
I/O & Electrical
Rated power supply voltage
24 V DC
Allowable voltage range
20.4 to 27.6 V DC
Power consumption
15 W max.
Physical & Environmental
Ambient operating temperature
0 to 50 °C (angle-dependent: 0-45 °C with expansion units)
Storage temperature
-20 to 60 °C
Ambient operating humidity
20 to 90 % RH (0 to 40 °C), 20 to 60 % RH (40 to 50 °C)
