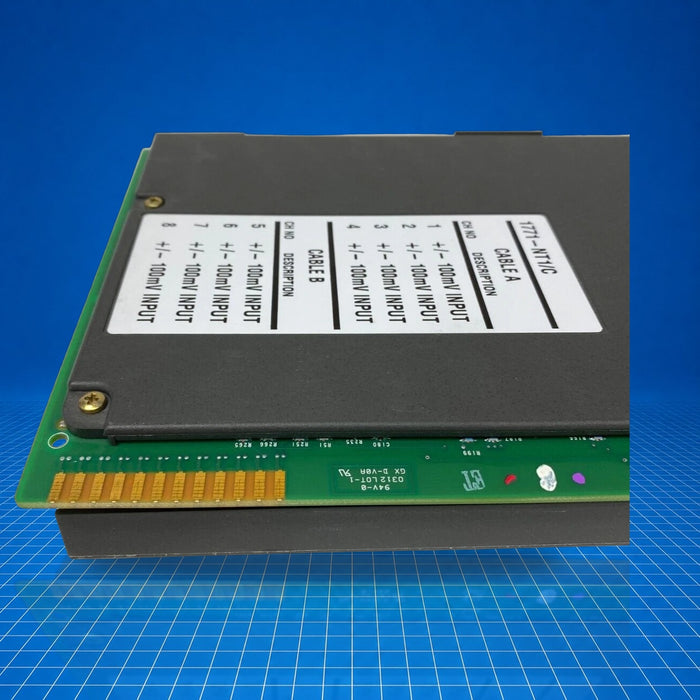

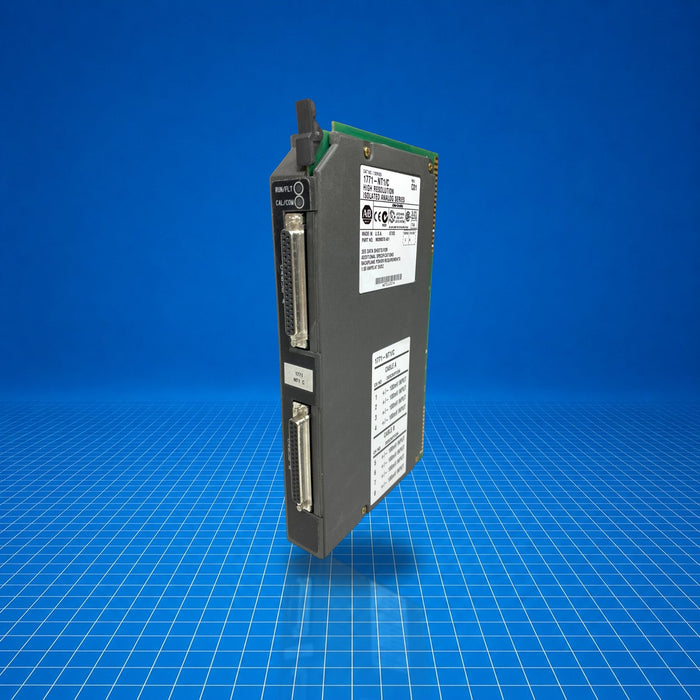

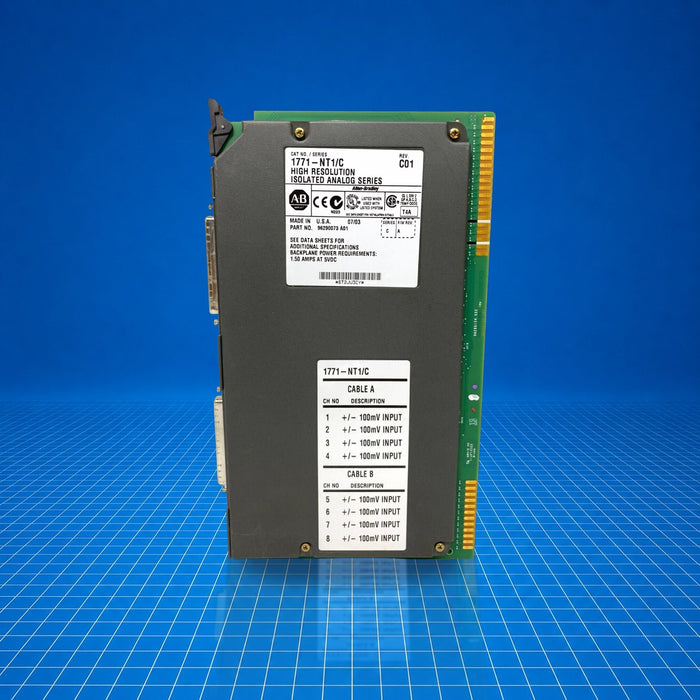

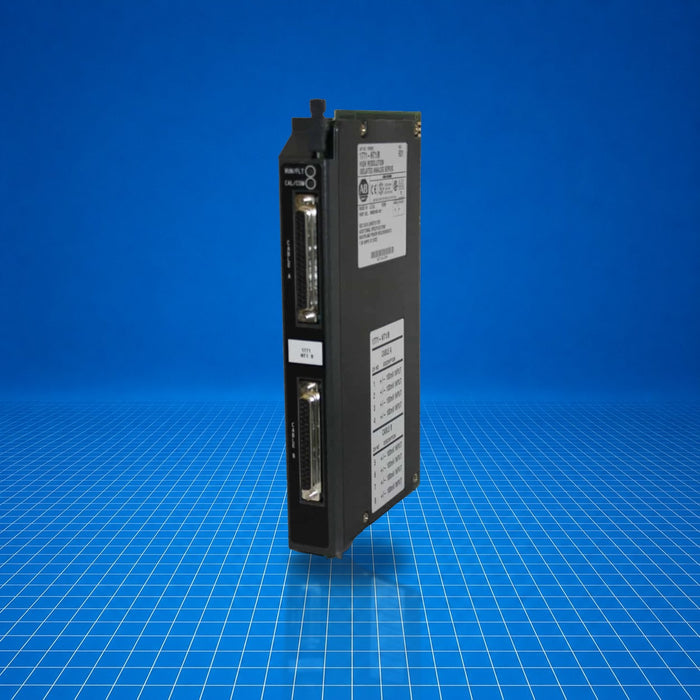

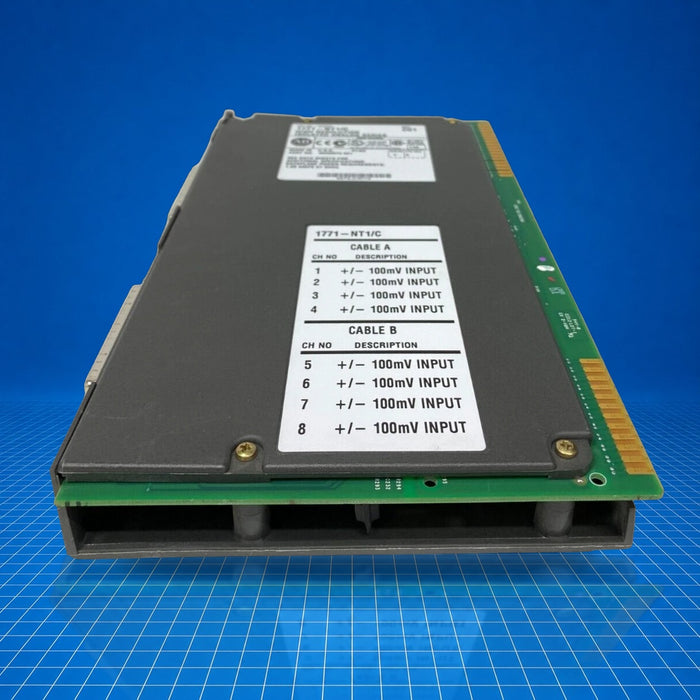

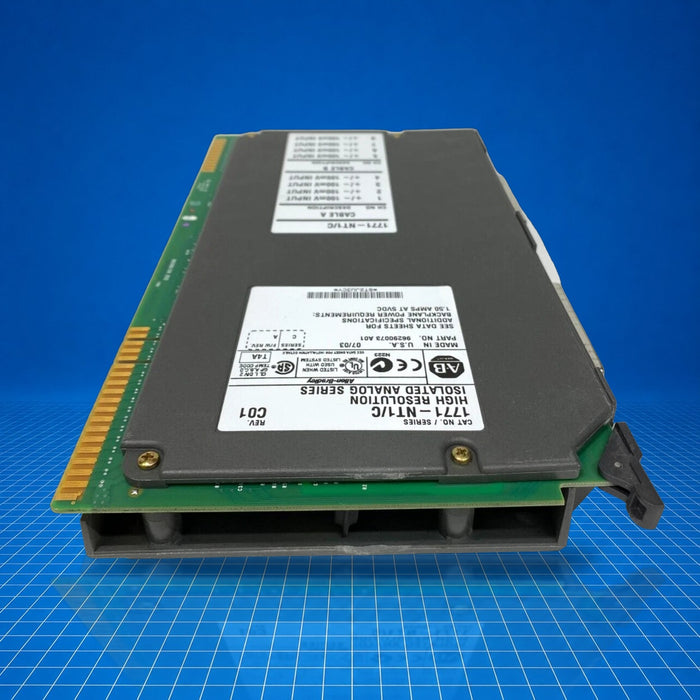

1771-NT1 Allen-Bradley
Original price
$305.97
-
Original price
$2,381.40
Original price
$305.97
$305.97
-
$2,381.40
Current price
$305.97
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1771-NT1 is an isolated analog input module for the Allen-Bradley PLC-5 / 1771 system. It provides eight input channels supporting millivolt and thermocouple signals, with per-channel scaling, alarm functions, rate alarm, and digital filtering. The module mounts in a 1771 I/O chassis and draws power from the backplane. It is typically used in industrial temperature or low-level voltage measurement applications requiring integration of thermocouple or millivolt signals into a PLC-5 control system. 1771-NT1 is now discontinued.
Best Suited For
- PLC-5 system analog input expansion
- Thermocouple temperature monitoring (types B, R, S, E, J, K, T, C, N)
- Low-level (±55 mV) signal acquisition
- Applications requiring input scaling, alarms, and filtering
Channels
8 input channels
Signal types
mV / thermocouple
Backplane current
1.0 A
Status
Discontinued (May 31, 2017)
Technical Specifications
I/O & Electrical
Number of inputs
8
Input types
mV / thermocouple
Resolution (mV)
-5 /+55 mV (0.95 μV/bit)
Thermocouple resolution
Type-dependent (e.g. 0.03 °C/bit for B,R,S)
Backplane current
1.0 A
