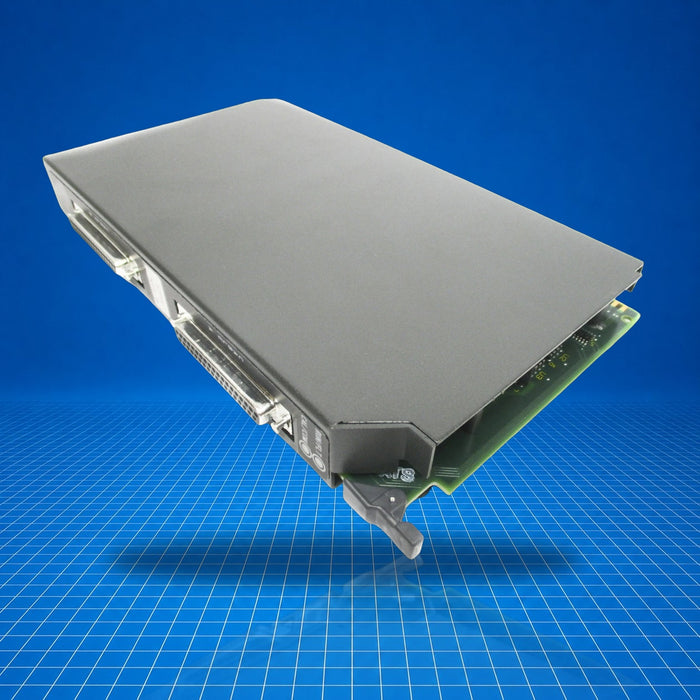

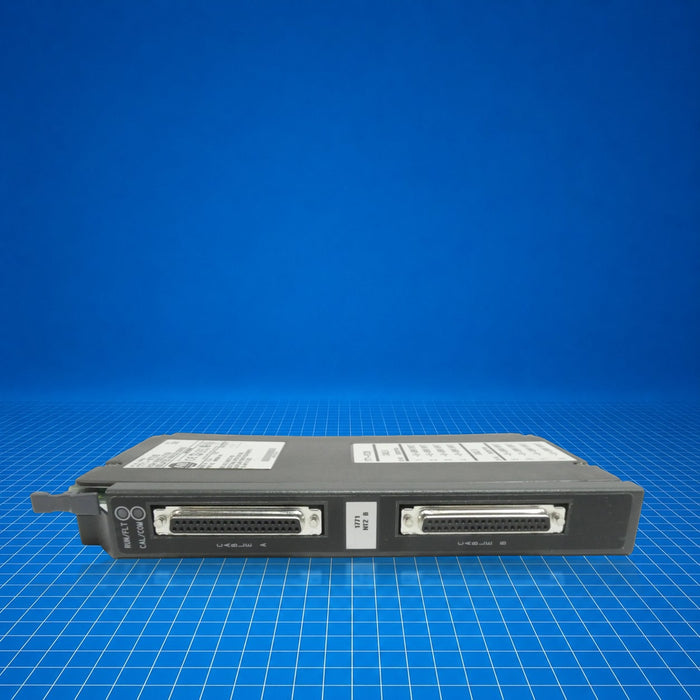

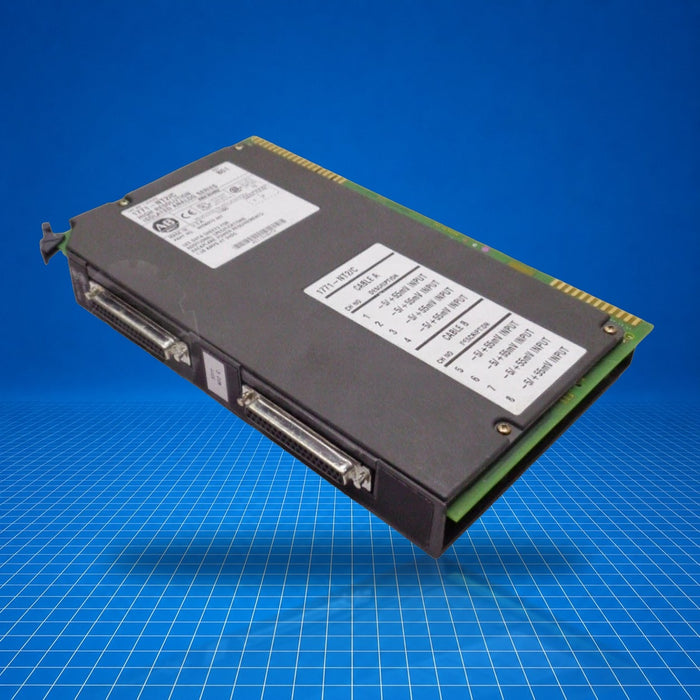

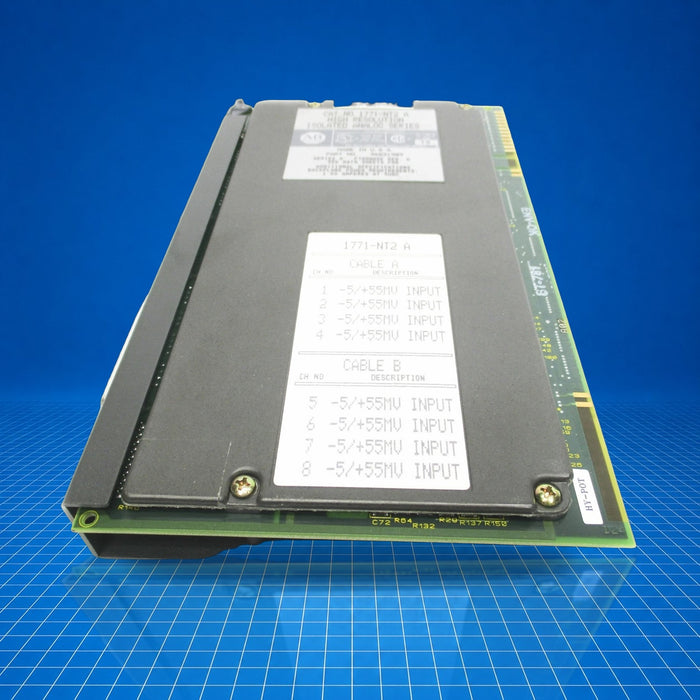

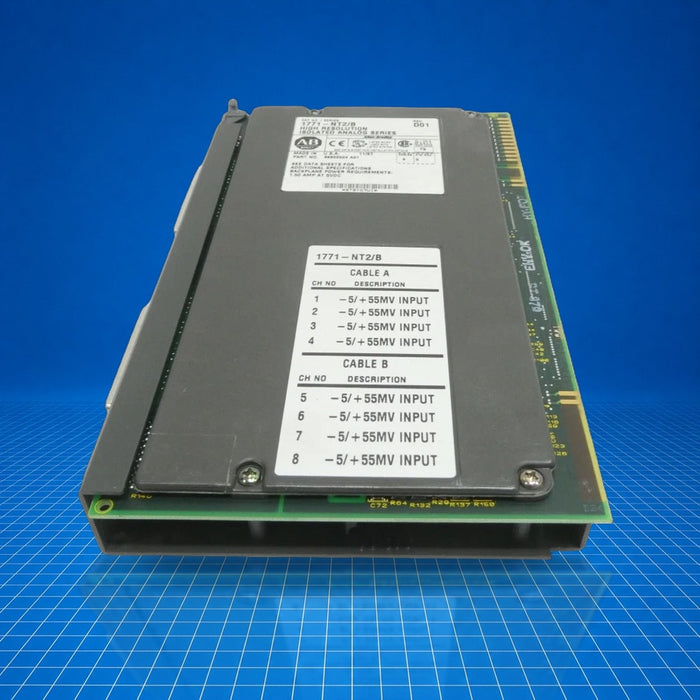

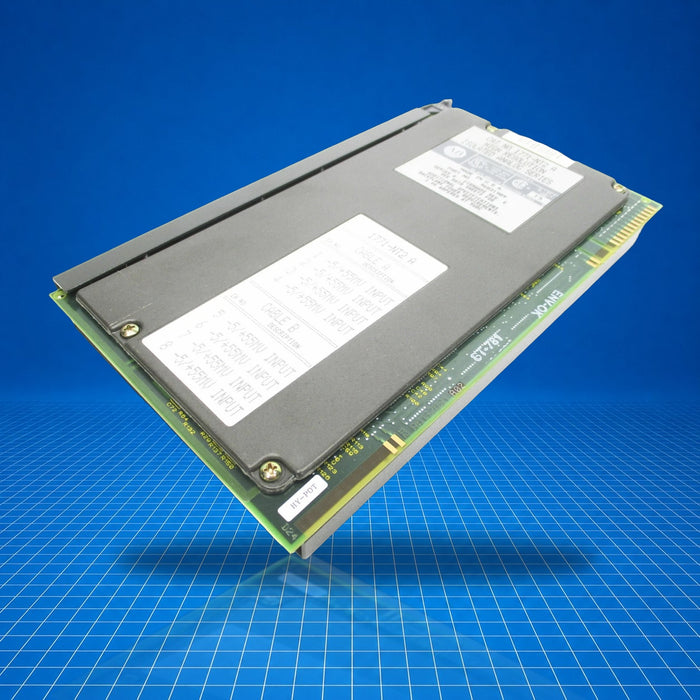

1771-NT2 Allen-Bradley
Original price
$1,237.47
-
Original price
$6,993.57
Original price
$1,237.47
$1,237.47
-
$6,993.57
Current price
$1,237.47
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1771-NT2 is an Allen-Bradley N-Series thermocouple input module designed for the PLC-5 (Bulletin 1771) analog I/O platform. It provides eight isolated input channels, each capable of reading a range from -5 mV to +55 mV and supporting thermocouple types B, C, E, J, K, N, R, S, and T. The module performs cold-junction compensation, scales readings to engineering units, and includes diagnostic features like open-circuit detection, alarms, and digital filtering. It mounts in a standard 1771 universal I/O chassis and interfaces via Remote Termination Panel (RTP).
Best Suited For
- Temperature measurement via multiple thermocouple types (B, C, E, J, K, N, R, S, T)
- Process control applications requiring high-resolution analog inputs
- Integration into legacy Allen-Bradley PLC-5 systems using Bulletin 1771 I/O chassis
- Environments needing isolated analog channel measurement with diagnostic capability
Channels
8 isolated inputs
Thermocouple types
B, C, E, J, K, N, R, S, T
Resolution
16-bit (approx. 65,000 counts)
Backplane current
1 A
Operating temp
0 °C to 60 °C
Technical Specifications
I/O & Electrical
Input range
-5 mV to +55 mV
Thermocouple types
B, C, E, J, K, N, R, S, T
Resolution
16-bit (~65,000 counts)
Underrange/overrange thresholds
-5.5 mV / +56.0 mV
Normal mode rejection
50 dB (50 Hz), 60 dB (60 Hz)
Common mode rejection
150 dB (60 Hz typical)
Communication & Power
Backplane current draw
1 A
Power dissipation (5 V)
5 W
Physical & Environmental
Operating temperature
0 °C to 60 °C
Storage temperature
-40 °C to +85 °C
Relative humidity
5 % to 95 %, non-condensing
Mounting
Rack-mountable, Bulletin 1771 chassis, uses 1771-RTP1
Weight
1.75 lb (0.79 kg)
