H7BX-AW Omron

Original price $582.97 - Original price $893.75
Original price
$582.97
$582.97 - $893.75
Current price $582.97
Surplus - Tested (With Warranty)
Need a Specific Revision?
$582.97
3 in stock
New / Open-Box Surplus
Need a Specific Revision?
$893.75
5 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (3) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Omron distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

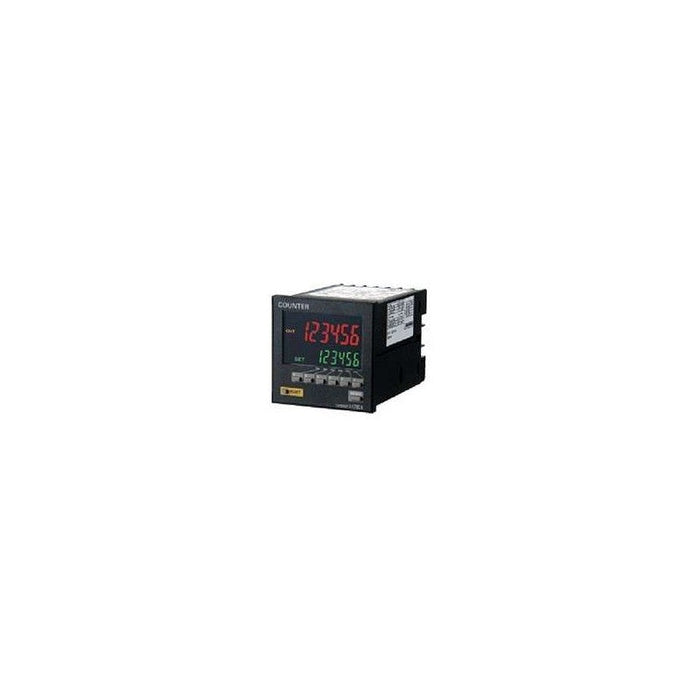

The Omron H7BX-AW is a DIN 72 × 72 mm multifunction preset counter and tachometer controller within the H7BX family. Designed for industrial control panels, it combines counting and rpm measurement functions (preset, batch, dual, twin counter, tachometer) under a single model. The unit features a negative-transmissive backlit 7-segment LCD for display of process values and set values in distinct colors. It is suited for panel-mounted applications, machine monitoring, and rotational speed measurement using encoder or pulse inputs. H7BX-AW supports AC-powered installations while offering the functions of both counter and tachometer in one device. (Part number H7BX-AW is referenced.)

Best Suited For

  • Panel-mounted preset counter with tachometer capability
  • Batch count monitoring in manufacturing lines
  • Dual or twin counter applications
  • Rotational speed measurement via encoder or pulse input
Functions
Counter (preset, batch, dual, twin) + Tachometer
Display
Backlit 7-segment LCD, PV 13.5 mm (red/green), SV 9 mm (green)
Supply voltage
100-240 VAC
Mounting
Flush-mount DIN 72 × 72 mm
Degree of protection
IEC IP54 (front only), UL Type 1

Technical Specifications

I/O & Electrical

Input signals
CP1, CP2, reset 1, reset 2, key protection (screw terminals)
Max counting speed (counter)
30 Hz or 5 kHz (selectable, ON/OFF ratio 1:1)
Tachometer measurement
Control outputs
Contact output: 3 A at 250 VAC/30 VDC (resistive load), min applied load 10 mA at 5 VDC; Transistor output: 100 mA max at 30 VDC; residual voltage 1.5 VDC max, leakage current 0.1 mA max

Communication & Power

Power supply voltage
100 to 240 VAC (50/60 Hz)
Operating voltage range
85 % to 110 % of rated supply voltage

Physical & Environmental

Memory backup
Non-volatile memory, overwrite 100 000 min., data retention 10 years min.
Operating temp.
-10 to 55 °C (no icing)
Storage temp.
-25 to 65 °C (no icing)
Operating humidity
25 to 85 % (no condensation)
Weight
Approx. 250 g

Certifications

cURusUL 508CSA C22.2 No. 14EN 61010-1EN 61326-1CE

cURus: UL 508, CSA C22.2 No. 14; EN 61010-1 (IEC 61010-1), Pollution degree 2 / Overvoltage category II; EMC: EN 61326-1, EN 55011 Group 1 Class A (emission), immunity per EN 61326-1 (ESD, RF-interference, conducted disturbance, burst, surge, voltage dip/interruption).
