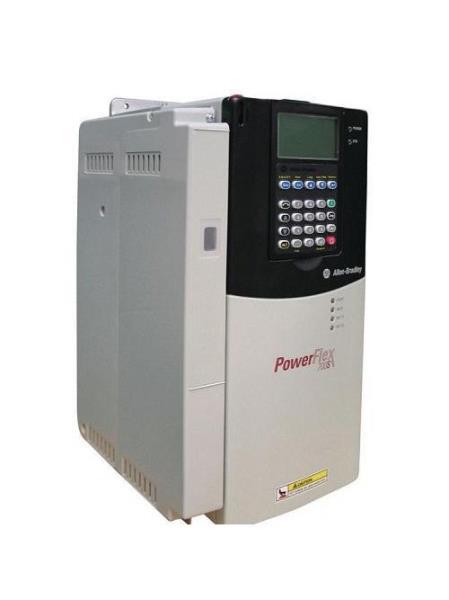

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

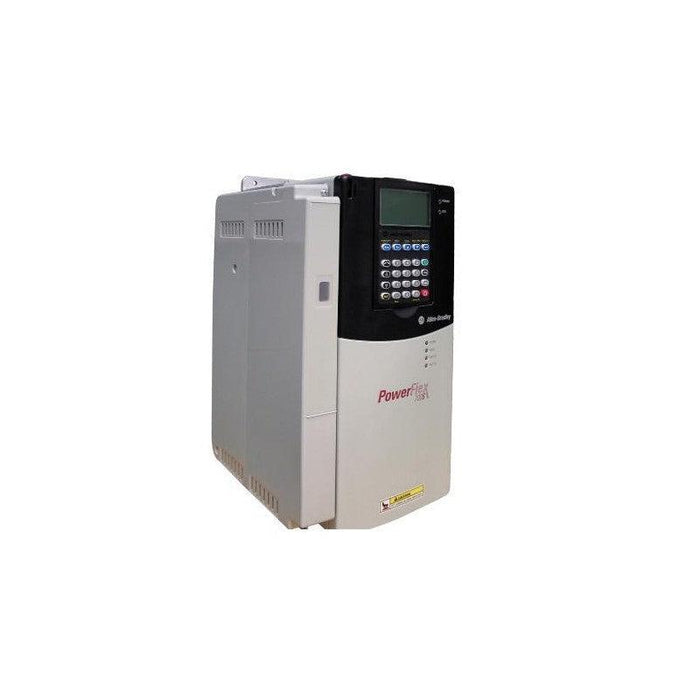

20DB4P2A0EYNANANE Allen-Bradley
Original price
$0.00
-
Original price
$3,851.73
Original price
$3,851.73
$0.00
-
$3,851.73
Current price
$3,851.73
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 20DB4P2A0EYNANANE is an Allen-Bradley PowerFlex 700S, frame 1, three-phase AC drive with Phase II control. It delivers up to 1 hp (normal duty) or 0.75 hp (heavy duty) at 240 V AC input. It regulates motor speed and torque via PWM in medium-voltage industrial drives and is commonly used for compact motor control in machinery, conveyors, and packaged equipment. It integrates with Rockwell control systems and supports compact non-volatile storage.
Best Suited For
- Compact motor speed and torque control
- Conveyor or packaging system drives
- OEM machinery requiring integrated non-volatile memory
- Applications in control systems using PowerFlex 700S platform
Continuous output current
4.2 A
Input current rating
3.7 A
Watts loss
101 W
Degree of protection
IP20 / NEMA Type 1
Operating temperature (without derating)
50 °C
Technical Specifications
I/O & Electrical
Input voltage rating
240 (208)V AC, 3-phase, 60 Hz
Input current rating
3.7 A
Continuous output current
4.2 A
1-minute output current
4.8 A
3-second output current
6.4 A
Input power rating
1.4 kVA
Watts loss
101 W
Physical & Environmental
Degree of protection
IP20 / NEMA Type 1
Operating temperature
50 °C (frame 1)
Storage temperature
-40 °C
Relative humidity
5…95% noncondensing
Altitude
1000 m (3300 ft) maximum without derating
