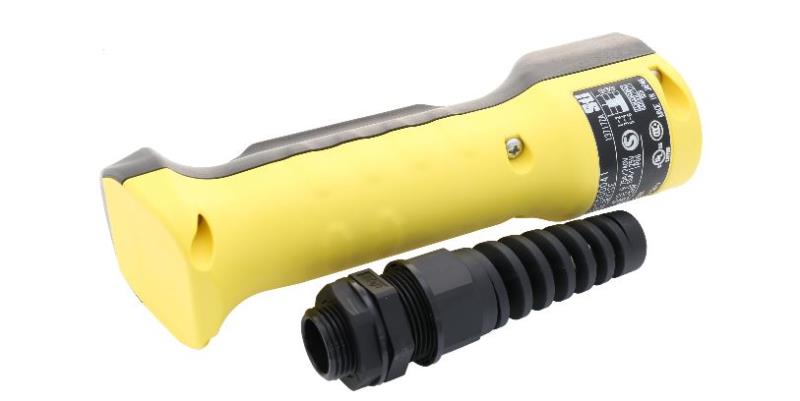

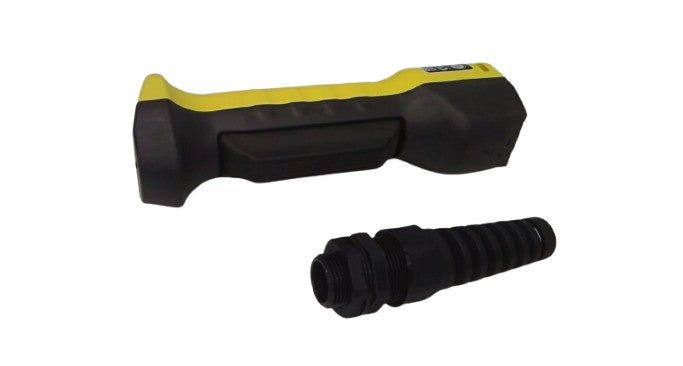

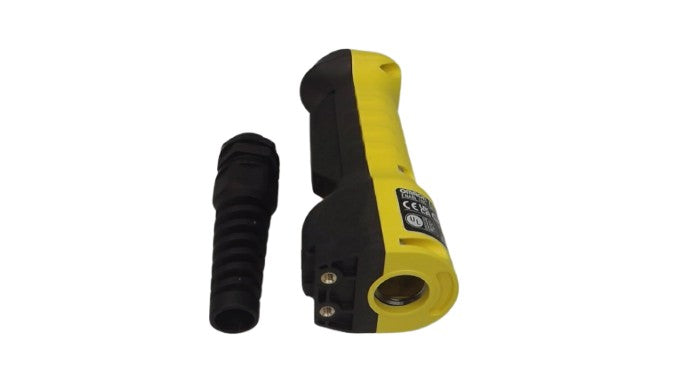

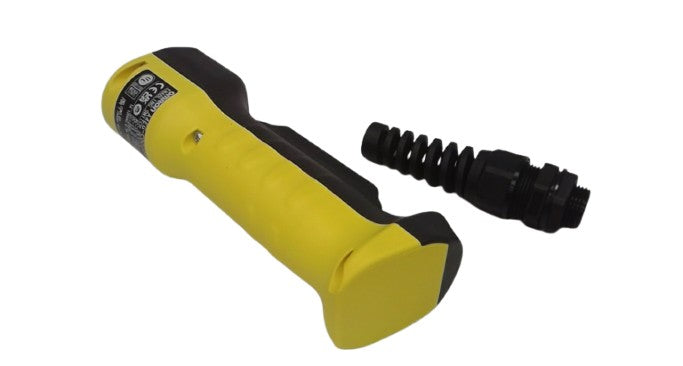

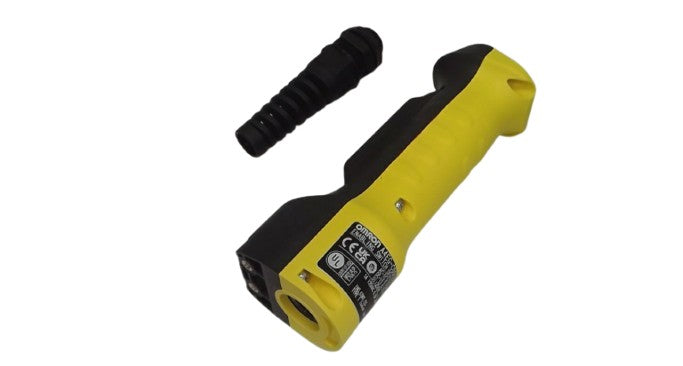

A4EG-C000041 Omron

Name: A4EG-C000041 Omron
Brand: Omron
SKU: A4EG-C000041
Price: 759.96 USD
Availability: InStock

$759.96 - $1,099.97

$759.96

$759.96 - $1,099.97

$759.96

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Omron distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The A4EG-C000041 is an enabling grip switch in Omron's A4EG series of safety operator controls. It provides a three-position enable-hold function (OFF-ON-OFF) via grip action to allow controlled machine operation during maintenance or adjustments. It is part of safety circuits to prevent unintended motion in hazard zones, typically mounted on guards or within operator reach. A4EG-C000041 supports direct-opening safety contact functionality compliant with EN 60947-5-1 standards.

Best Suited For

Hold-to-run safety circuits during maintenance or setup
Integration with safety guard switching units (e.g. G9SX-GS)
Applications requiring three-position operator confirmation
Use in environments requiring direct-opening safety compliance

Contact form

1 NC (enabling switch)

Degree of protection

IP66

EN 60947-5-1 ratings

AC-15: 0.75 A/240 V; DC-13: 0.55 A/125 V

Durability (electrical)

100 000 operations min. (rated load)

Operating temperature

-10 to 55 °C (no icing/condensation)

Technical Specifications

I/O & Electrical

Rated operating current (AC-15)

0.75 A

Rated operating voltage (AC-15)

240 V

Rated operating current (DC-13)

0.55 A

Rated operating voltage (DC-13)

125 V

UL/CSA inductive load (24 V DC)

0.3 A

UL/CSA resistive load (125 VAC)

1 A

Rated insulation voltage

250 V

Minimum applicable load

24 V DC, 4 mA

Physical & Environmental

Degree of protection

IP66

Electrical durability

100 000 operations min.

Mechanical durability

OFF-ON-OFF: 100 000; OFF-ON: 1 000 000 operations

Dielectric strength (between terminals, same polarity)

2 500 VAC, 1 min impulse

Insulation resistance

100 MΩ min. (at 500 V DC)

Vibration resistance

1.5 mm double amplitude, 10-55 Hz

Shock resistance

150 m/s² max.

Ambient operating temperature

-10 to 55 °C (no icing/condensation)

Ambient operating humidity

35 % to 85 % (no condensation)

Ambient storage temperature

-25 to 65 °C (no icing/condensation)

Protection class

Class II (double insulation)

Pollution degree

3 (EN 60947-5-1)

Conditional short-circuit current

100 A (EN 60947-5-1)

Certifications

TÜV-SÜDUL 508CSA C22.2 No.14CQCKOSHA

Complies with Low Voltage Directive and GS-ET-22. TÜV SÜD certified for EN 60947-5-1 direct-opening. UL 508 and CSA C22.2 No.14 (File E76675). CQC (CCC) GB/T 14048.5. KOSHA EN 60947-5-1.
