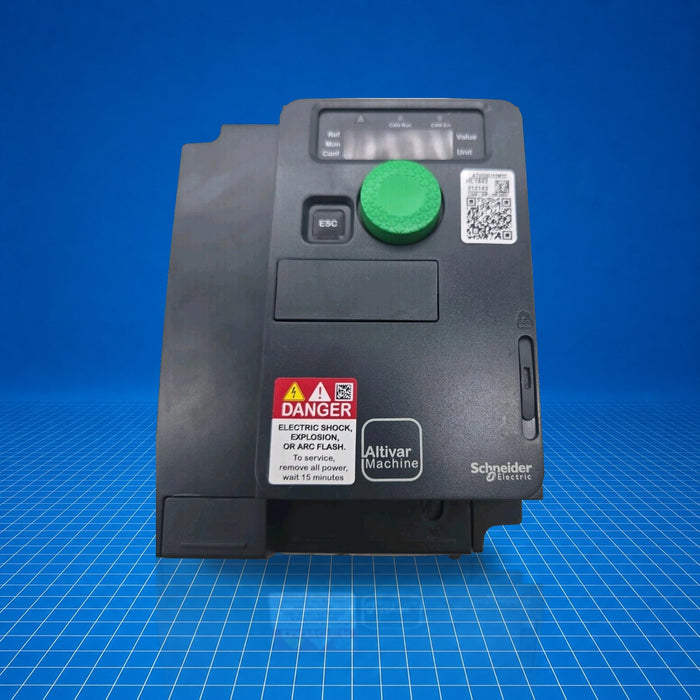

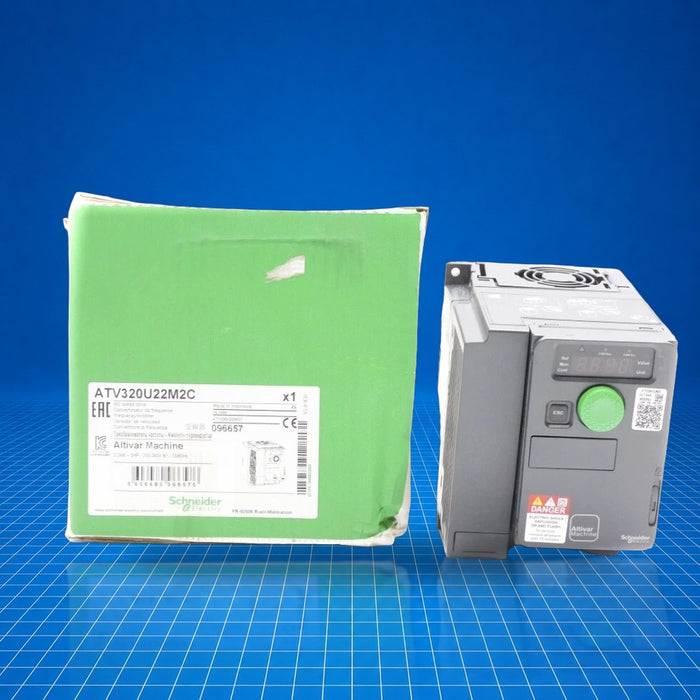

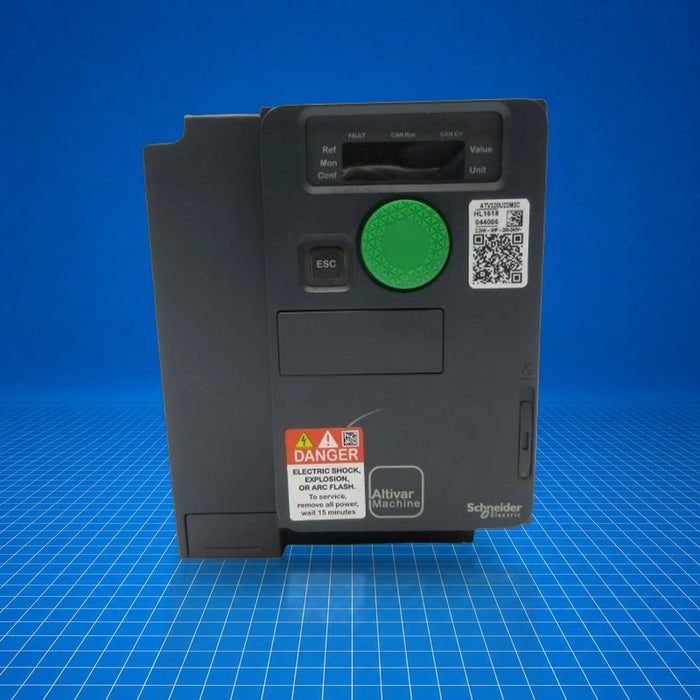

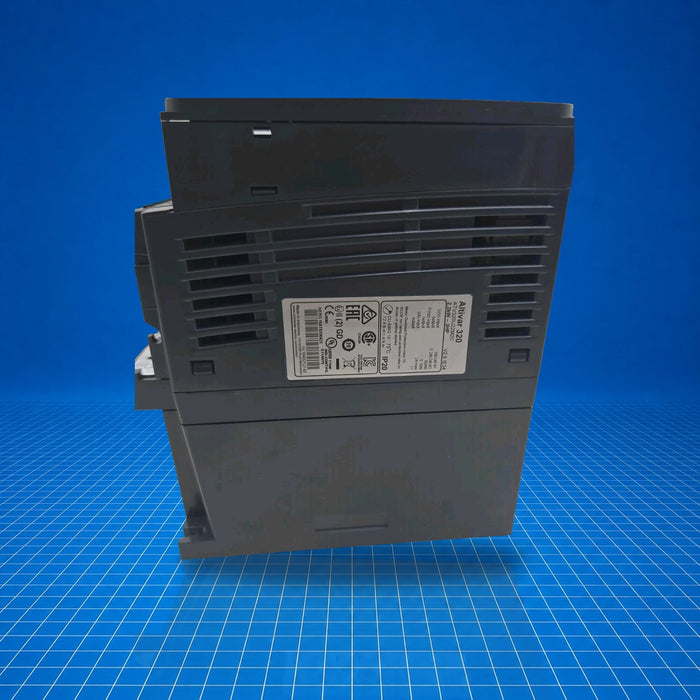

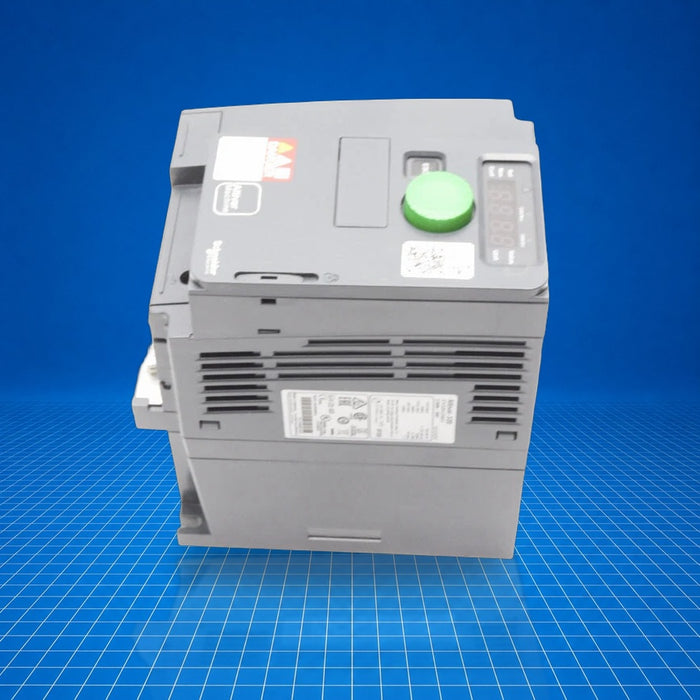

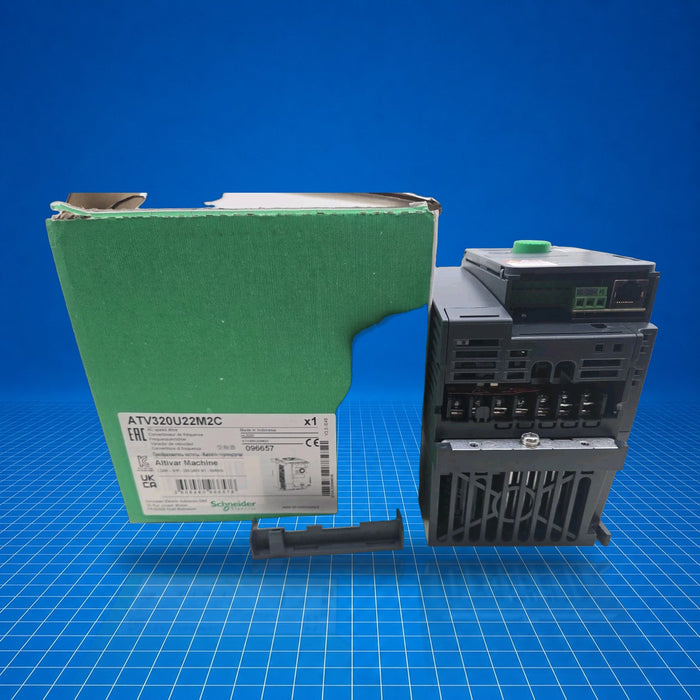

ATV320U22M2C Schneider
Original price
$618.75
-
Original price
$1,069.75
Original price
$1,069.75
$618.75
-
$1,069.75
Current price
$1,069.75
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

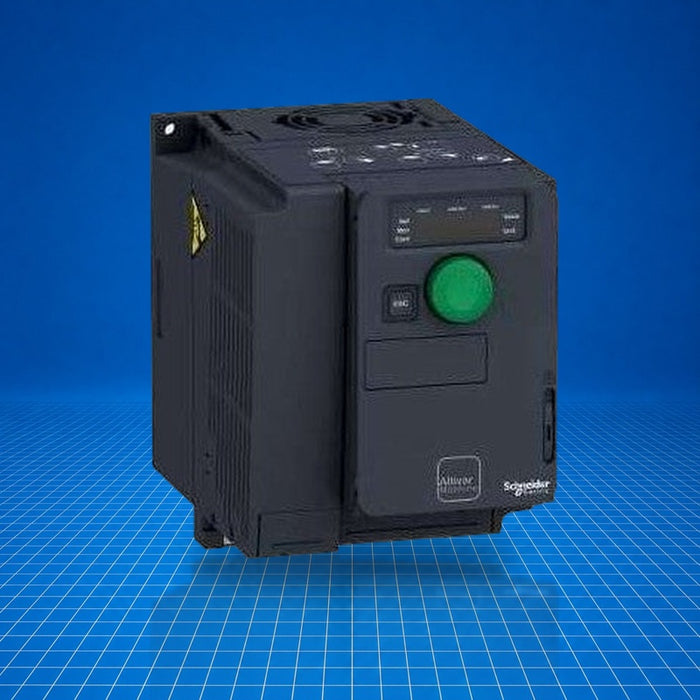

The ATV320U22M2C is a Schneider Electric Altivar Machine ATV320 series variable-speed drive. It accepts single-phase 200-240 V AC supply and delivers up to 2.2 kW (3 hp) heavy-duty motor output. It supports asynchronous and synchronous motor control using voltage/frequency methods and sensorless flux-vector control, with integrated Class C2 EMC filter and IP20 (UL Type 1) enclosure. Typical industrial uses include compact machine drives for packaging, conveying, ventilation, pumping, and general OEM machinery control.
Best Suited For
- Compact OEM machinery requiring single-phase 2.2 kW drive
- Packaging and material handling systems
- Ventilation and pumping applications
- Vertical panel mounting within machine control enclosures
- Driving asynchronous or permanent-magnet synchronous motors
Motor power
2.2 kW (heavy-duty)
Supply voltage
200…240 V AC (-15…+10 %)
Output frequency
0.1…599 Hz
Protection rating
IP20 (UL Type 1 with kit)
Dimensions (H×W×D)
142 mm × 105 mm × 158 mm
Technical Specifications

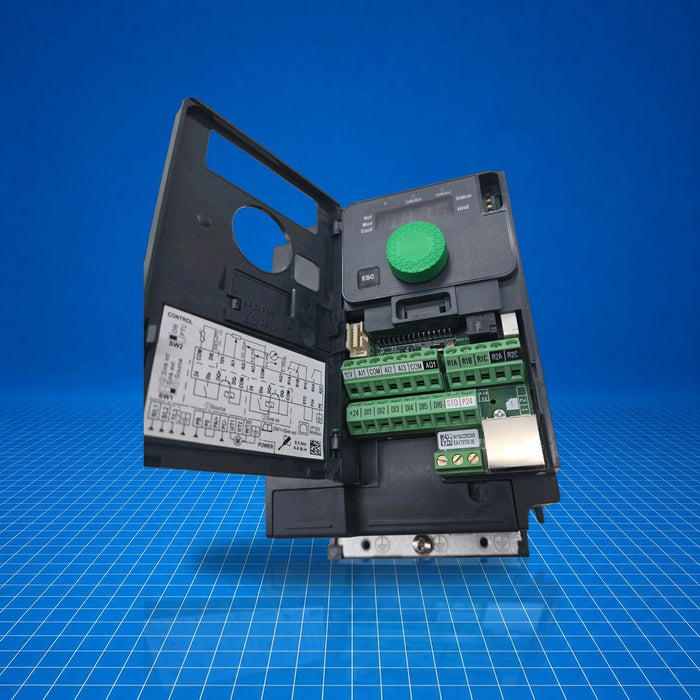

I/O & Electrical
Discrete inputs
7
Discrete outputs
3
Analogue inputs
3
Analogue outputs
1
Relay output
5 mA @ 24 V DC
Communication & Power
Supply frequency
50-60 Hz (±5 %)
Line current
23.9 A @ 200 V; 20.1 A @ 240 V
Apparent power
4.8 kVA @ 240 V
Continuous output current
11 A @ 4 kHz
Transient current
16.5 A for 60 s
Physical & Environmental
Operating temperature
-10 °C to +50 °C
Storage temperature
-25 °C to +70 °C
Relative humidity
5 % to 95 %
Weight
1.6 kg (3.5 lb)
Mounting
Vertical panel (±10 °), 4 fixing holes
Certifications
Conforms to IEC/EN 61800-5-1 and IEC/EN 61800-3; UL Type 1 with conformity kit.
