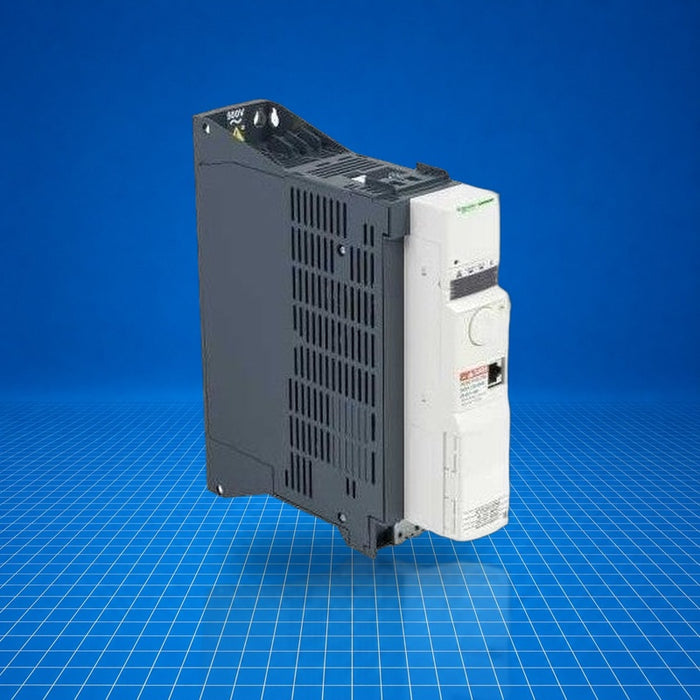

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
ATV32HU40N4 Schneider
Original price
$687.50
-
Original price
$2,700.00
Original price
$687.50
$687.50
-
$2,700.00
Current price
$687.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The ATV32HU40N4 is a variable speed drive (VSD) from the Schneider Electric Altivar 32 series designed for three-phase motor control at 4 kW. It features a heat-sink cooled 'book' format and is used to manage motor speed and torque in industrial systems. It integrates into control architectures to drive machinery such as conveyors, pumps, or material handling equipment. The ATV32HU40N4 offers constant torque control with options for safety functions and communication modules within a compact industrial automation footprint.
Best Suited For
- Three-phase 380-500 V applications
- Constant torque motor control up to 4 kW
- Retrofit in Altivar 32 panel footprints
- Machines requiring integrated safety options (e.g., STO)
Power rating
4 kW
Input voltage range
380 V -15% to 500 V +15%
Nominal input current
13.9 A at 380 V, 10.6 A at 500 V
Control format
Book style with heat sink
Technical Specifications
I/O & Electrical
Input voltage
380 V (-15%) to 500 V (+15%)
Nominal input current
13.9 A at 380 V; 10.6 A at 500 V
Peak current (60 s)
14.3 A
Prospective line Isc limit
65 kA without line choke (380-500 V)
Prospective line Isc with choke
22 kA with suitable line choke
Physical & Environmental
Operating temperature
-10 °C to +50 °C (up to +60 °C with derating)
Altitude
Up to 1000 m without derating; derate beyond to 3000 m
