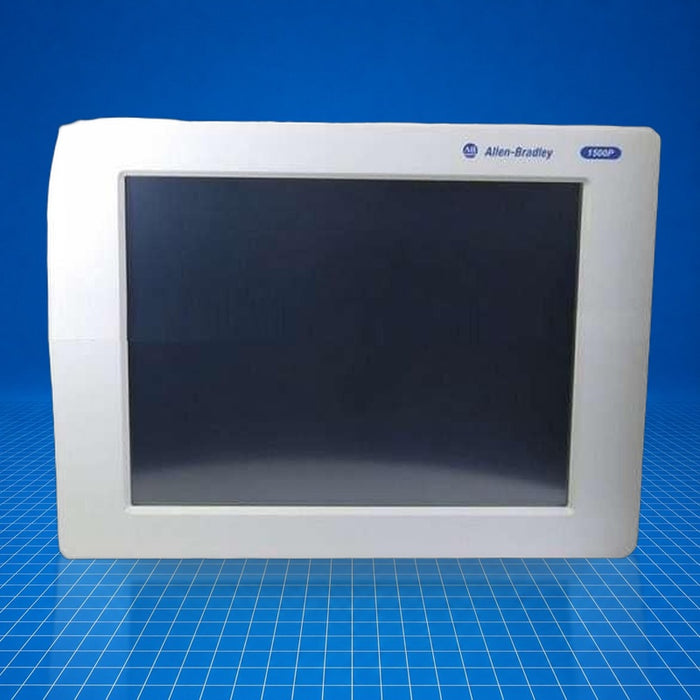

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6181P-15TSXP Allen-Bradley
Original price
$2,205.00
-
Original price
$2,872.80
Original price
$2,205.00
$2,205.00
-
$2,872.80
Current price
$2,205.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6181P-15TSXP is a VersaView Plus 1500P integrated display computer from Allen-Bradley. It combines a 15-inch touchscreen display and embedded Windows OS to provide operator interface and control in industrial automation systems. It is typically panel-mounted and used for local HMI and supervisory functions in manufacturing cells, control panels, and machinery enclosures.
Best Suited For
- Local HMI/operator interface in control panels
- Monitoring and control of machinery in production cells
- Embedded computing in industrial automation systems
Display size
15 inches
Touchscreen type
PCAP touchscreen
Input power (AC)
100 - 240 V AC
Storage memory
256 GB
Operating temp range
0 to 50 °C
Technical Specifications
I/O & Electrical
Communication ports
2 Serial ports, 1 Parallel port, 2 Ethernet ports
Communication & Power
Input voltage
100 - 240 V AC
Power consumption
100 VA (1.0 A @ 100 V RMS, 0.42 A @ 240 V RMS)
Physical & Environmental
Display resolution
1024 × 768, 16.7 M colors
Dimensions (HxWxD)
309 × 410 × 95 mm (12.16 × 16.14 × 3.74 in)
Weight
19.84 lb (9.0 kg)
Operating temperature
0 to 50 °C
Enclosure rating
NEMA Type 1, 12, 4; IEC IP66
Certifications
UL Listed
UL listed per UL 60950-1 and CSA C22.2 No. 60950-1 (representative of 6181P-xyP…) per Rockwell UL compliance certificate.
