Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
1403-LM05A Allen-Bradley
Original price
$2,452.33
-
Original price
$3,052.80
Original price
$2,452.33
$2,452.33
-
$3,052.80
Current price
$2,452.33
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

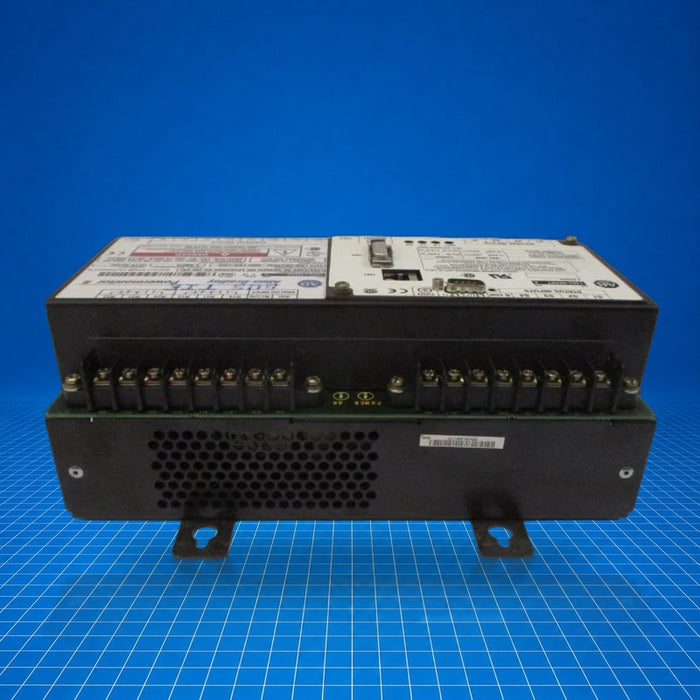

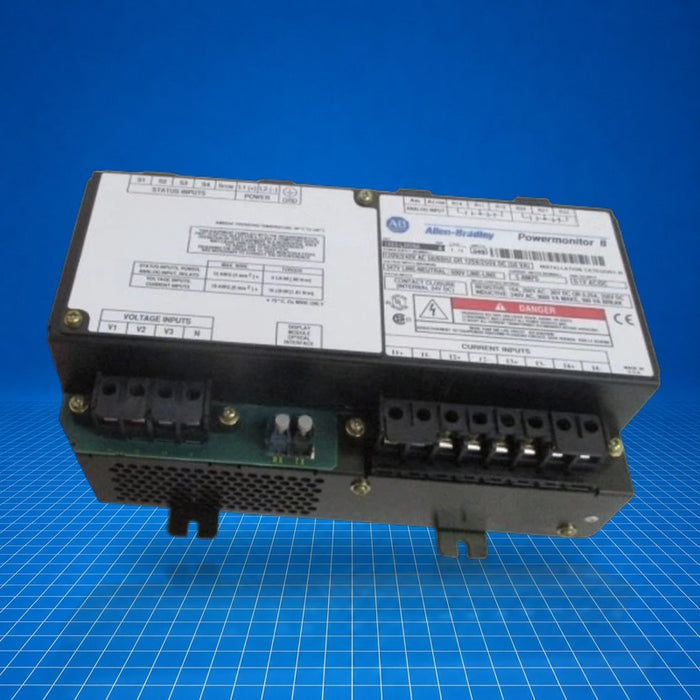

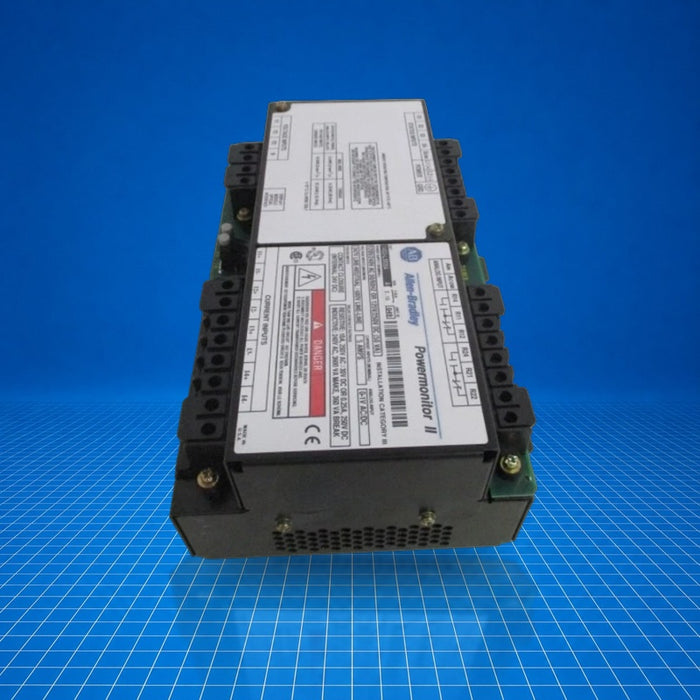

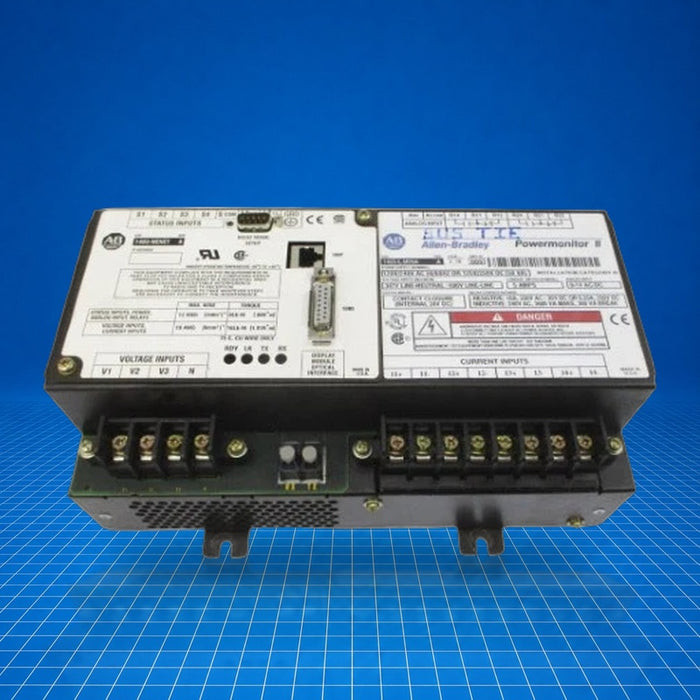

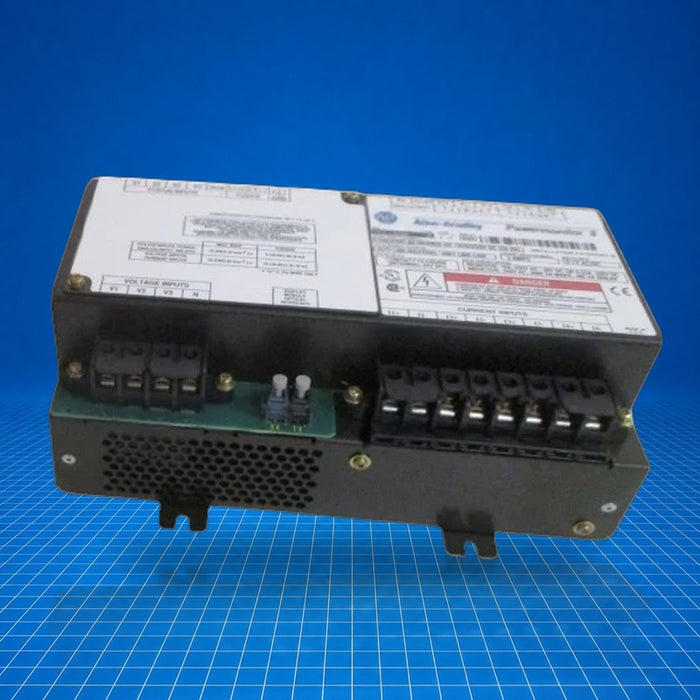

The Allen-Bradley 1403-LM05A is a Powermonitor II master module within the Allen-Bradley power monitoring platform. It performs limited metering functions-specifically current via CTs and voltage measurement-without a display or communications card. The module integrates into industrial control systems to monitor electrical parameters in switchgear, distribution panels, and motor control centers. 1403-LM05A is typically used where basic metering is required, and it can be paired with display or communications cards as needed.
Best Suited For
- Monitoring current via 5 A CT inputs
- Line-to-neutral or line-to-line voltage measurement (120-347 V L-N; 208-600 V L-L)
- Installation in electrical distribution panels
- Basic electrical parameter tracking in industrial systems
Measured voltage range
120-347 V L-N / 208-600 V L-L
Current input scale
5 A (via CT)
Power supply
120-240 V AC 50/60 Hz or 125/250 V DC
Metering capability
Limited metering (voltage + CT current only)
Technical Specifications
I/O & Electrical
Measured voltage range
120-347 V L-N; 208-600 V L-L
Current input scale
5 A (via CT)
Communication & Power
Power supply
120-240 V AC 50/60 Hz or 125/250 V DC
