Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

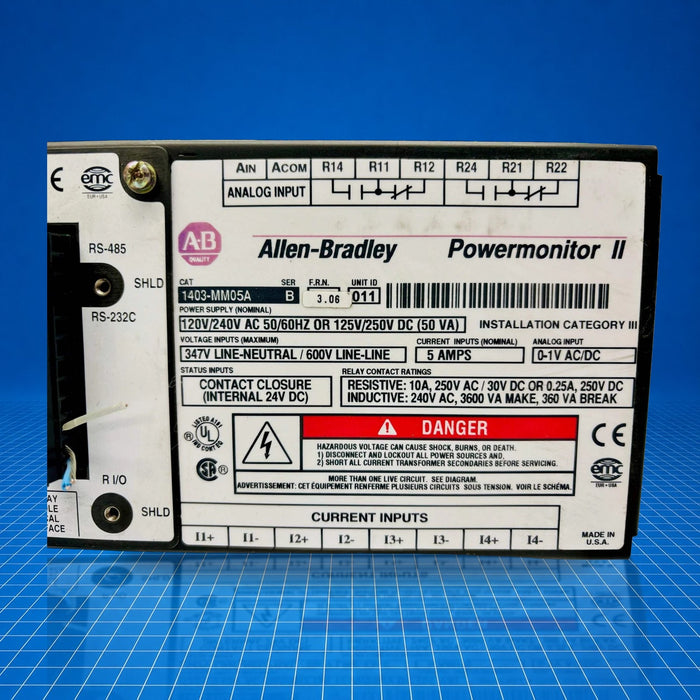

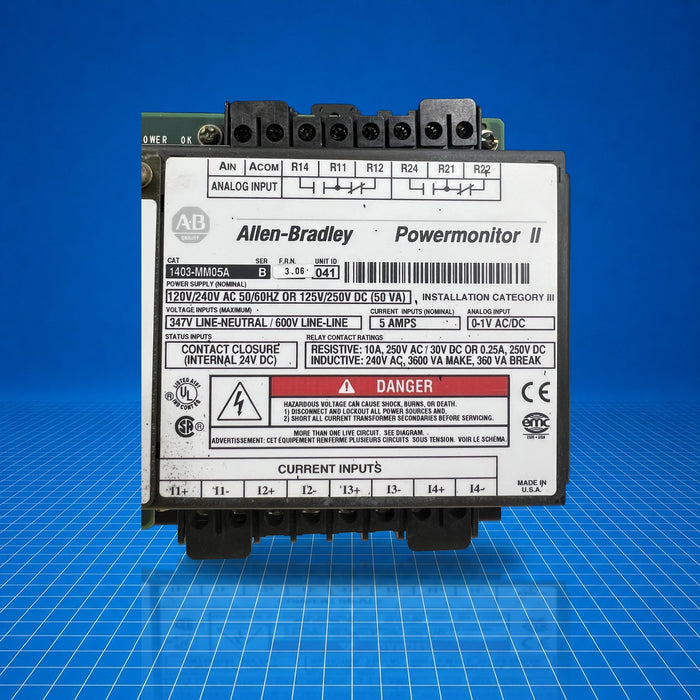

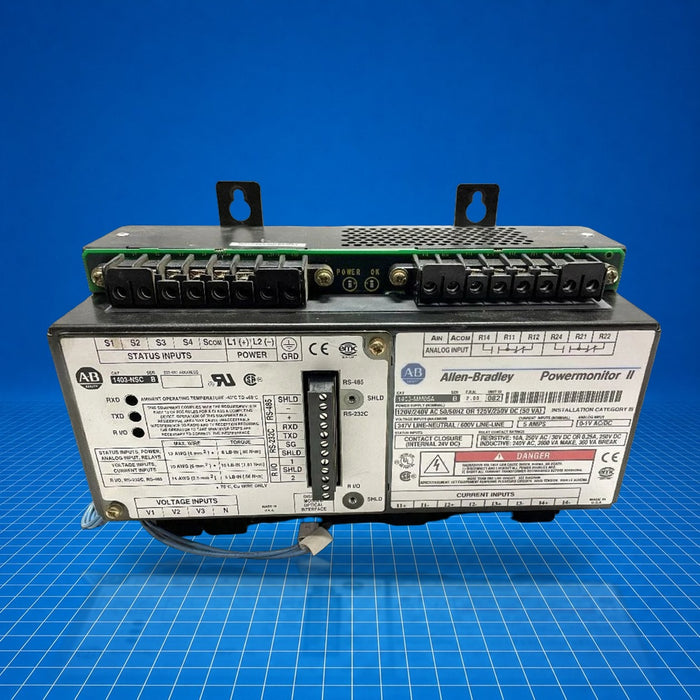

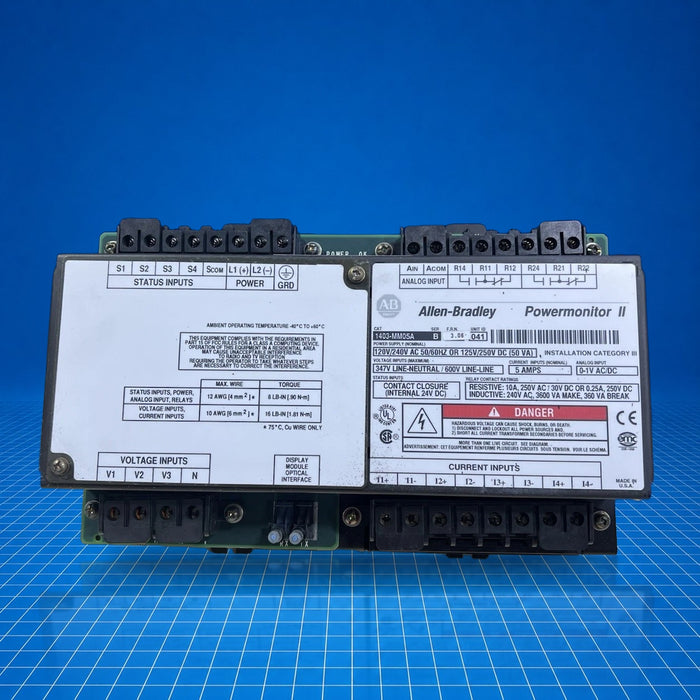

The Allen-Bradley 1403-MM05A is a Powermonitor II Master Module used in electrical monitoring systems. It is part of the Bulletin 1403 platform and provides full-scale measurement of current and voltage in three-phase systems. Installed within control panels, it monitors up to five current inputs and measures line-to-line or line-to-neutral voltages for energy diagnostics and system protection in industrial power distribution networks. The 1403-MM05A facilitates integration with display modules and communication cards for supervisory control.
Best Suited For
- Three-phase power monitoring applications

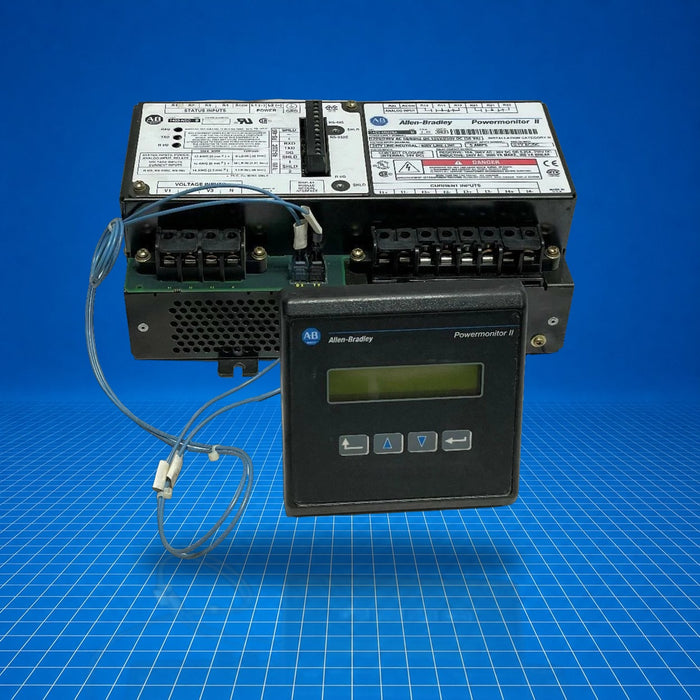

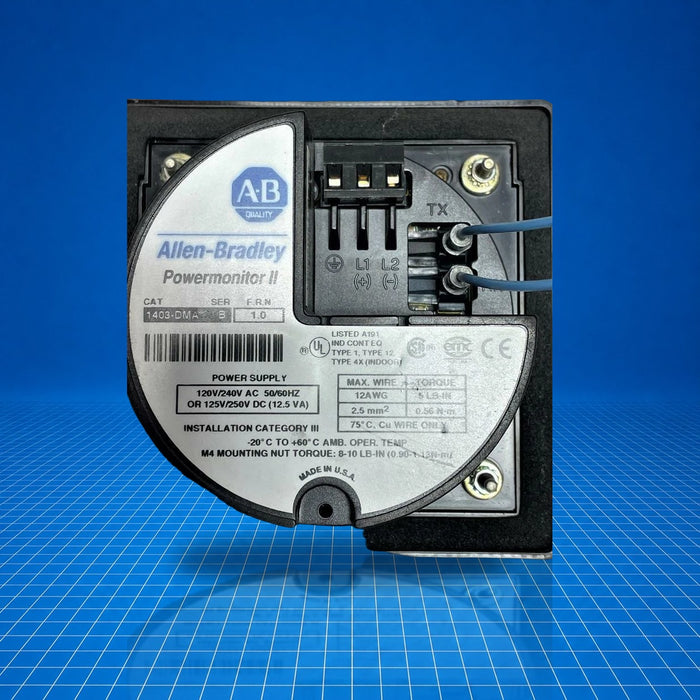

- Integration with Powermonitor II display or communication modules
- Panel-mounted master module in energy management systems
- Retrofit or OEM panel builds requiring analog and relay outputs
Current inputs
5
Voltage measurement range
120-600 V (line-to-neutral/line-to-line)
Power supply options
120-240 V AC or 125-250 V DC
Continuous current overload
15 A
Short-term current overload (1 s)
300 A
Technical Specifications
I/O & Electrical
Current inputs (full-scale)
0-5 A
Continuous input overload
15 A
Short-term input overload (1 s)
300 A
Current input burden
0.05 VA
Voltage measurement range (L-N)
120-347 V
Voltage measurement range (L-L)
208-600 V
Analog input (nominal)
0-1 V AC/DC
Resistive relay contact rating
10 A at 250 V AC; 10 A at 30 V DC; 0.25 A at 250 V DC
Inductive relay contact rating
3600 VA make, 360 VA break at 240 V AC
Communication & Power
Control power supply
120-240 V AC (50/60 Hz) or 125-250 V DC
Physical & Environmental
Weight
6.56 lbs (2.98 kg)
