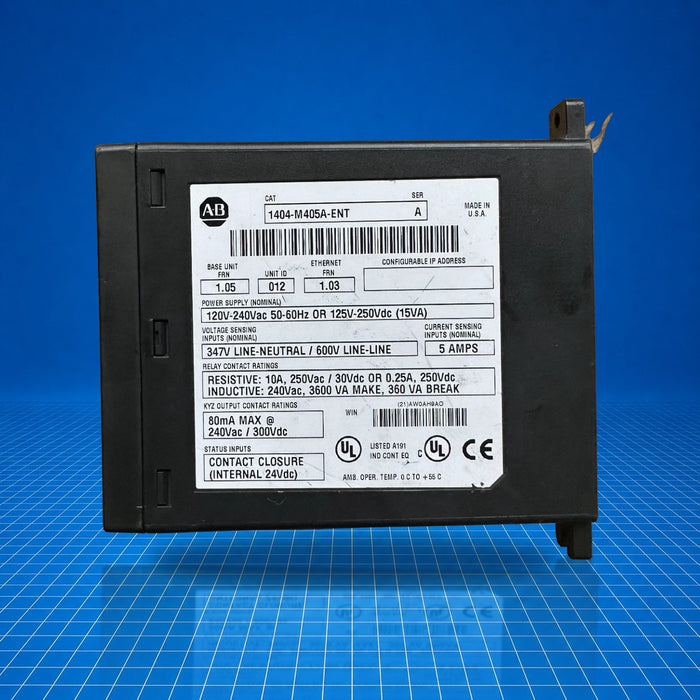

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
1404-M405A-ENT Allen-Bradley
Original price
$687.50
-
Original price
$4,200.00
Original price
$687.50
$687.50
-
$4,200.00
Current price
$687.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

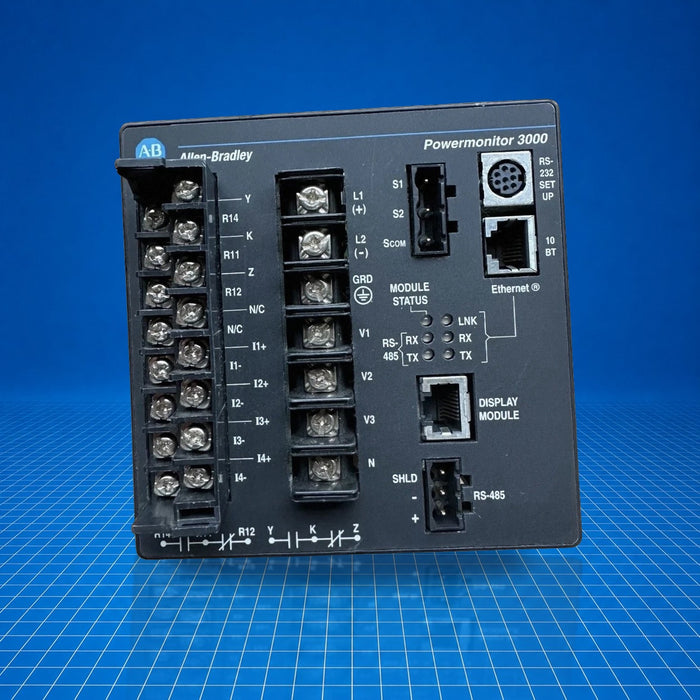

The 1404-M405A-ENT is an Allen-Bradley PowerMonitor 3000 master module used for three-phase electrical metering, pulse-input conversion, setpoint control, I/O, data logging and Ethernet communication. It integrates into industrial control architectures via RS-485 and Ethernet, supports embedded web-server access, and is suited to energy distribution monitoring, load profiling and integration with controllers such as PLC-5E, SLC 5/05 or ControlLogix via Ethernet.
Best Suited For
- Three-phase power monitoring and logging
- Integration into EtherNet/IP-based control systems
- Load profiling and demand management
- Retrofit or new-build energy distribution panels
Primary communications
RS-485, Ethernet
Measured parameters
Voltage, current, frequency, kW, kVA, kVAR, kWh, kVAh
Metering update rate
55-80 ms
Operating temp.
32 to 131 °F (0 to 55 °C)
Embedded web-server
Yes
Technical Specifications
I/O & Electrical
Measured parameters
Voltage, current, frequency, kW, kVA, kVAR, demand (kW, kVA), energy (kWh, kVAh)
Metering update rate
55-80 ms
Status input type
Contact closure (internal 24 V dc)
Control relay KYZ output rating
10 A at 30 V or 0.25 A at 250 V dc; ANSI C37.90-1989 trip duty solid state 80 mA at 240-300 V dc
Power supply
102-264 V ac 47-63 Hz; 106-275 V dc
Communication & Power
Communication ports
RS-485, Ethernet
Web-server
Embedded (Ethernet)
Compatible controllers
PLC-5E, SLC 5/05, ControlLogix Ethernet Bridge, 1761-NET-ENI
Physical & Environmental
Display
2-line LED screen
Operating temperature
32 to 131 °F (0 to 55 °C)
Storage temperature
-40 to 185 °F (-40 to 85 °C)
Weight
1.75 lb (0.79 kg)
Cable length
10 ft shielded 4-pair cable (power + serial)
Certifications
EtherNet/IP testedUL 508 listedcULus certified
EtherNet/IP conformance (ODVA tested); UL 508 listed, cULus certified.
