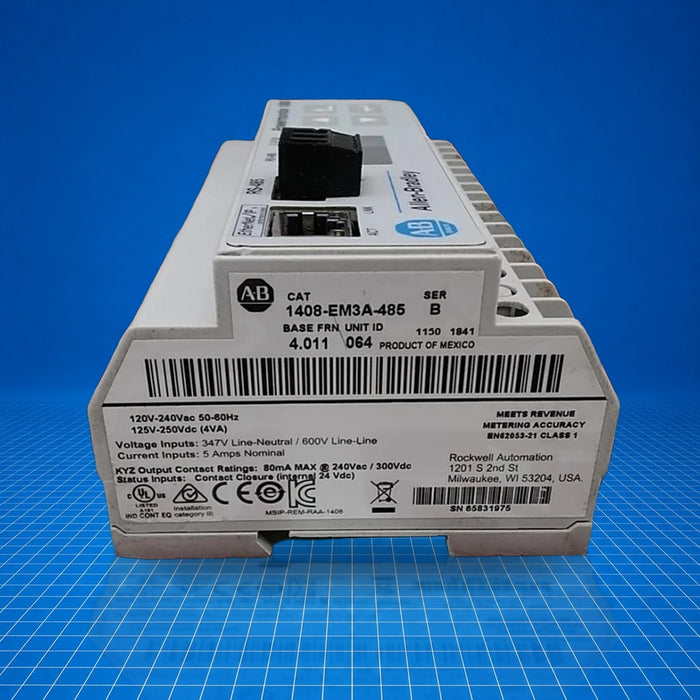

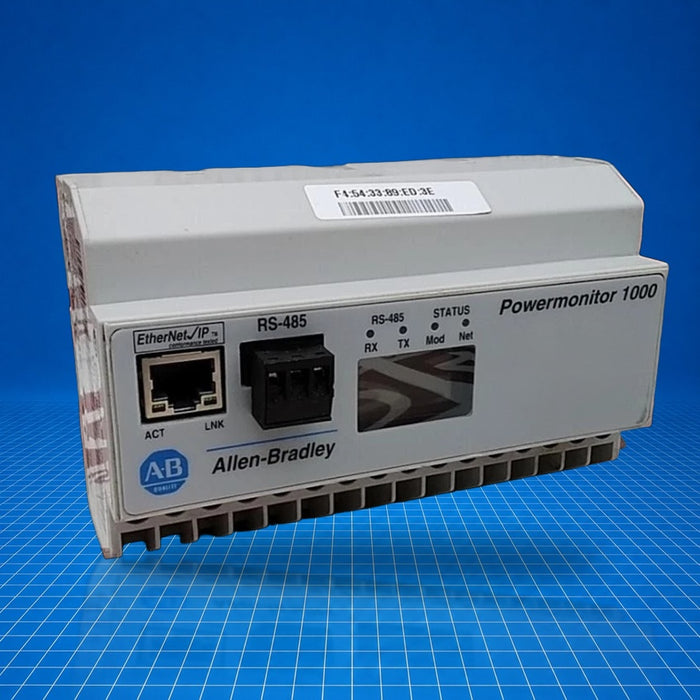

1408-EM3A-485 Allen-Bradley
Original price
$0.00
-
Original price
$1,957.55
Original price
$1,957.55
$0.00
-
$1,957.55
Current price
$1,957.55
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1408-EM3A-485 is an Allen-Bradley PowerMonitor 1000 series energy, demand, and power monitoring module. It functions as a meter that integrates into industrial control systems, measuring electrical parameters-such as voltage, current, real/reactive/apparent power, energy (kWh, kVARh, kVAh), demand values (actual and projected), power factor, frequency, and unbalance. It supports serial communications over RS-485. Typical industrial applications include control panels, distribution centers, and motor control centers where detailed energy monitoring and demand tracking are required.
Best Suited For
- Energy management in industrial control panels
- Demand monitoring in motor control centers
- Integration via RS-485 for SCADA or PLC systems
- Tracking real-time and historical power consumption
Communication
RS-485 serial (DF1 full/half-duplex, Modbus RTU)
Control power
85…264 V AC, 47…63 Hz; 125…250 V DC; 4 VA max
Measured parameters
kW, kVA, kVAR, kWh, kVAh, kVARh, demand, power factor, frequency, unbalance
Operating temperature
-10…60 °C
Technical Specifications
I/O & Electrical
Control power input
85…264 V AC, 47…63 Hz; 125…250 V DC; 4 VA max
Voltage sense inputs (V1, V2, V3)
Input impedance 5 MΩ; input current 2 mA max
Current sense inputs (I1, I2, I3)
Impedance 0.002 Ω; burden 0.05 VA; overload withstand 15 A continuous, 200 A for 0.5 s; starting current 5 mA
Communication & Power
Communication protocol
RS-485 serial (DF1 full/half-duplex, Modbus RTU)
Measured accuracy
±0.5% (voltage and current @25 °C, unity PF)
Update rates
Voltage/current/frequency 100 ms; power 200 ms
Physical & Environmental
Operating temperature
-10…60 °C
Storage temperature
-40…85 °C
Humidity
5…95% non-condensing
Vibration
2.0 g @ 10…500 Hz
Shock
30 g peak each axis (operating)
Certifications
UL ListedcULusCE
