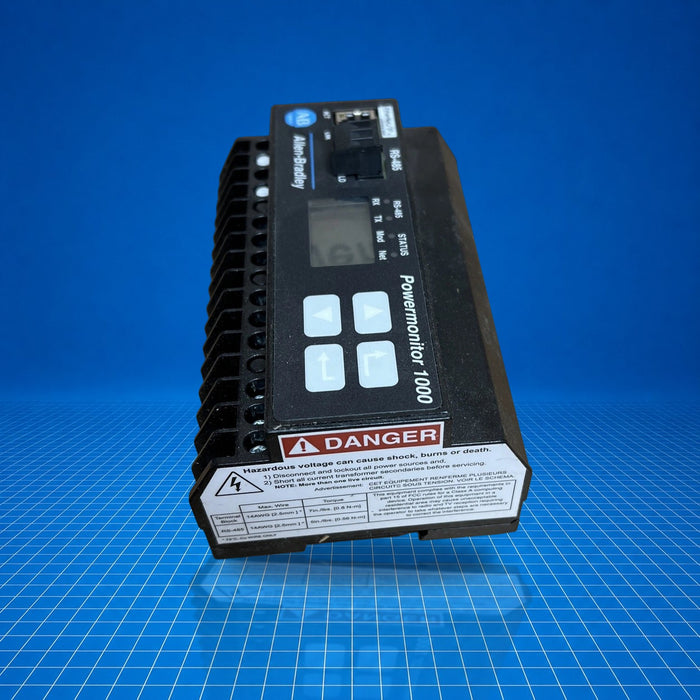

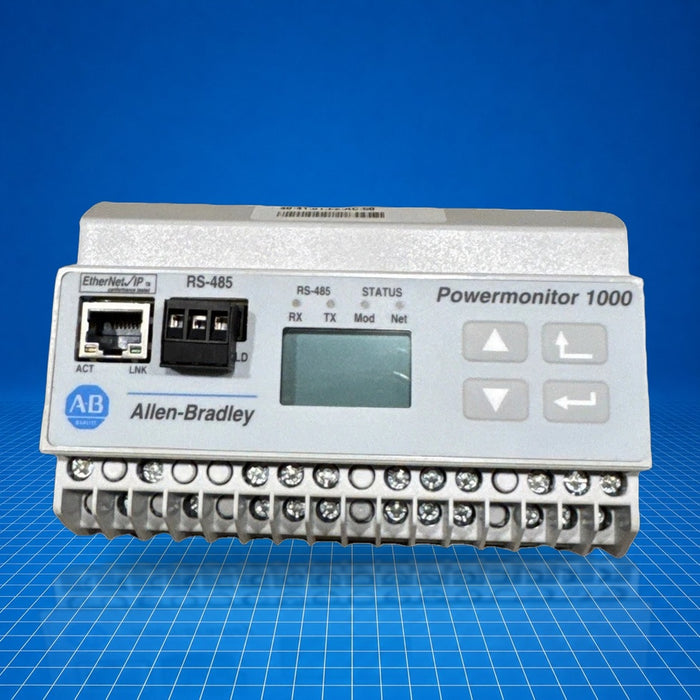

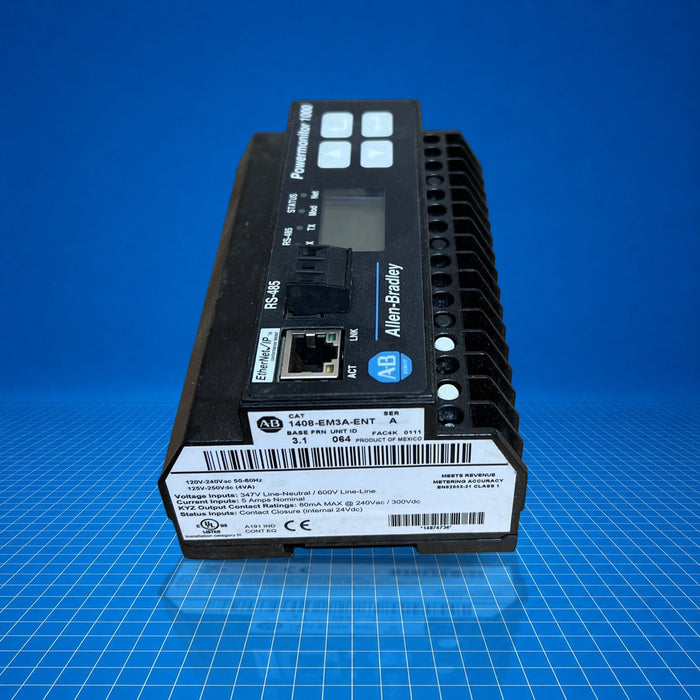

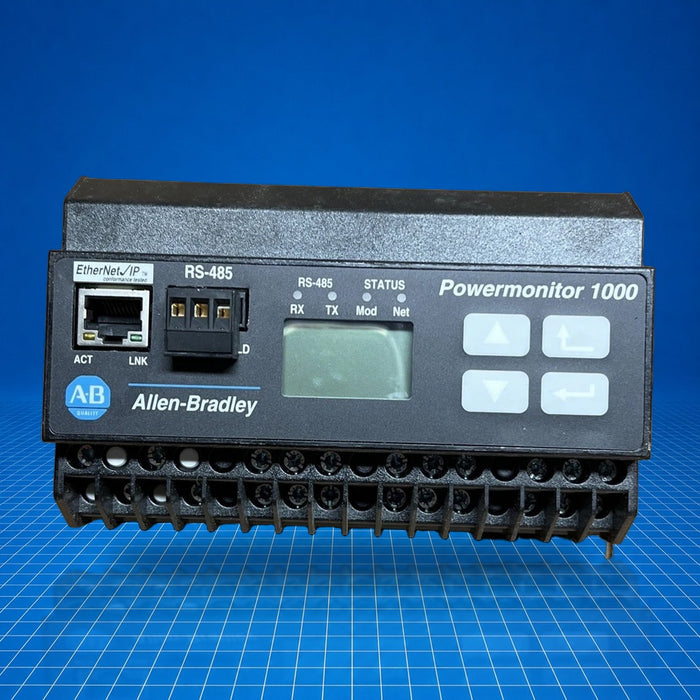

1408-EM3A-ENT Allen-Bradley
Original price
$618.75
-
Original price
$1,749.98
Original price
$618.75
$618.75
-
$1,749.98
Current price
$618.75
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 1408-EM3A-ENT is an Energy, Demand, and Power monitoring member of the PowerMonitor 1000 platform. It provides voltage, current, frequency, real/reactive/apparent power, energy, demand, and power factor measurements. It supports both RS-485 (DF1, Modbus RTU) and Ethernet/IP communications via an integrated RJ-45 port, and can be configured through its embedded web interface. Typical industrial uses include energy management, load profiling, and power monitoring in control panels in manufacturing, utilities, and infrastructure systems.
Best Suited For
- Energy and demand logging in switchgear or panelboards
- Integration into Ethernet/IP-based factory networks
- Power monitoring for predictive maintenance
- Voltage, current, frequency metering in three-phase systems
- Remote configuration via web interface
Control power
85…264 V AC, 47…63 Hz; 125…250 V DC
Ethernet/IP + RS-485
Yes
Voltage measurement range
600 V LL; 15…399 V LN
Current input
5 A nominal (0.05…10 A rms)
Operating temp
-10 to 60 °C
Technical Specifications
I/O & Electrical
Control power voltage
85…264 V AC, 47…63 Hz; 125…250 V DC, 4 VA max
Voltage sense range (line-line)
26…691 V LL
Voltage sense range (line-neutral)
15…399 V LN
Voltage sense accuracy
±0.5 % @ 25 °C, unity PF
Voltage sense input impedance
≥ 5 MΩ
Voltage sense input current
≤ 2 mA
Current sense range
0.05…10 A rms, nominal 5 A
Current sense accuracy
±0.5 % @ 25 °C, unity PF
Current input burden
0.05 VA
Current input impedance
0.002 Ω
Current input overload
15 A continuous, 200 A for ½ s
Starting current (I sense)
5 mA
KYZ output rating
80 mA @ 240 V AC / 300 V DC
Communication & Power
Ethernet/IP communications
Yes (RJ-45)
Serial communications
RS-485 (DF1 full/half-duplex, Modbus RTU)
Interface/configuration
Web page
Physical & Environmental
Operating temperature
-10 to 60 °C
Storage temperature
-40 to 85 °C
Humidity
5…95 % non-condensing
Vibration
2.0 G @ 10…500 Hz
Shock
30 G peak each axis
Dielectric withstand
UL 61010, EN 61010, Pollution Degree 2
Terminal block wire size
0.34…2.5 mm² (22 AWG), copper only, torque 0.8 N·m
Weight
0.94 lb (0.43 kg)
Certifications
UL 61010EN 61010
