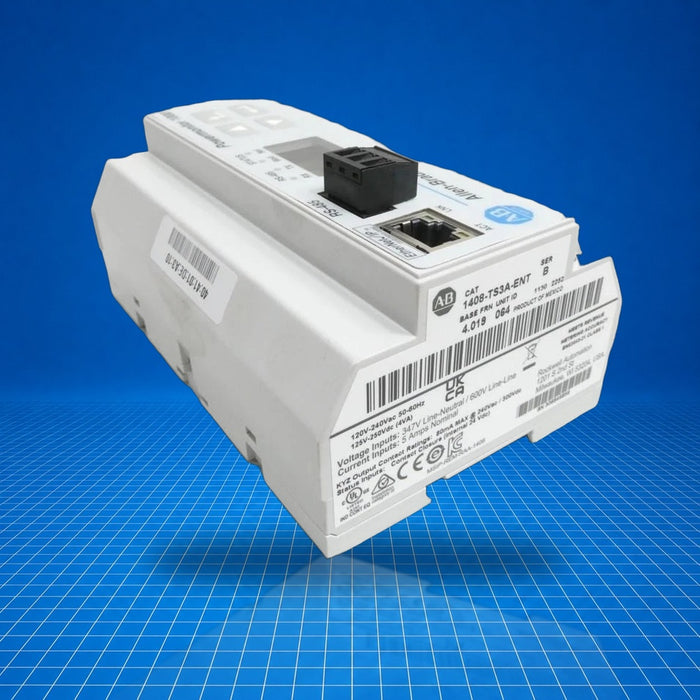

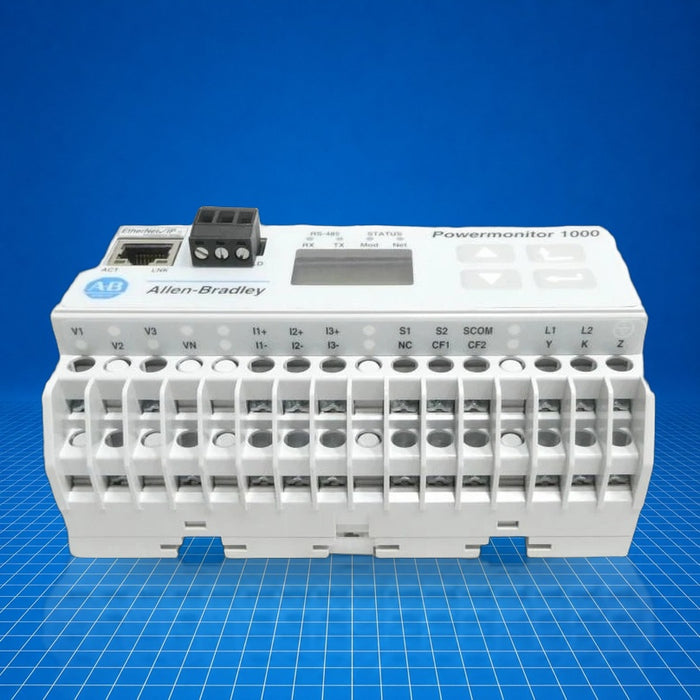

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
1408-TS3A-ENT Allen-Bradley
Original price
$1,031.25
-
Original price
$2,413.25
Original price
$1,031.25
$1,031.25
-
$2,413.25
Current price
$1,031.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

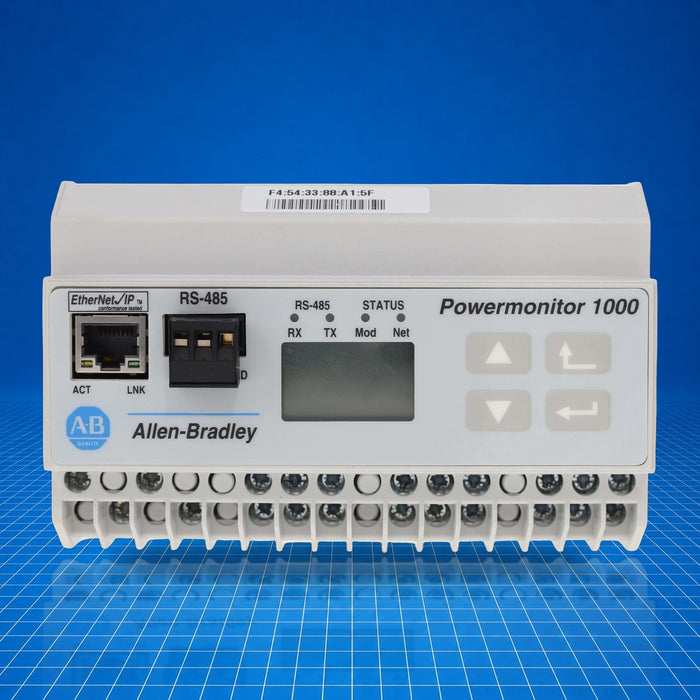

The 1408-TS3A-ENT is an Allen-Bradley PowerMonitor 1000 series metering module that provides basic consumption measurement plus voltage and current monitoring with Ethernet/IP and serial communication. It integrates an LCD for configuration and status display. Typical use is in electrical panels, switchgear or control cabinets where monitoring of voltage, current, power, and energy helps in system diagnostics, commissioning, or troubleshooting. 1408-TS3A-ENT supports both platform-level visibility and network integration via Ethernet/IP and Modbus TCP.
Best Suited For
- Panel-mounted consumption and voltage/current monitoring
- On-site troubleshooting with local LCD interface
- EtherNet/IP- or Modbus TCP-based metering integration
- DIN-rail installation in control and power distribution systems
Control Power
85…264 V AC 47…63 Hz; 125…250 V DC (2.5 VA)
Voltage sense
±0.5% accuracy, 15…399 V LN / 26…691 V LL
Current sense
±0.5%, overload 15 A continuous; crest factor 3.0
Communication
EtherNet/IP, Modbus TCP, RS-485 (DF1/Modbus RTU/DH-485)
Operating Temp
-10…60 °C
Technical Specifications
I/O & Electrical
Control power input
85…264 V AC, 47…63 Hz; 125…250 V DC (2.5 VA)
Voltage sense input impedance
≥ 5 MΩ; max input current 2 mA
Current sense overload rating
15 A continuous; 200 A for 0.5 s; burden 0.05 VA; impedance 0.002 Ω; crest factor 3.0
Status inputs
Contact closure (internal 24 V DC)
KYZ output
30 mA at 240 V AC / 300 V DC; Class 1 digital accuracy
Communication & Power
Ethernet protocols
EtherNet/IP and Modbus TCP; HTML configuration page; CIP Energy Object
Serial protocols
RS-485 supporting DF1 half/full-duplex, Modbus RTU slave, DH-485
LCD display
Integrated for unit configuration and status navigation
Physical & Environmental
Mounting
DIN-rail clips (top and bottom)
Operating temperature
-10…60 °C
Storage temperature
-40…85 °C
Humidity
5…95% non-condensing
Vibration
2.0 g @ 10…500 Hz
Shock
30 g peak each axis (operating)

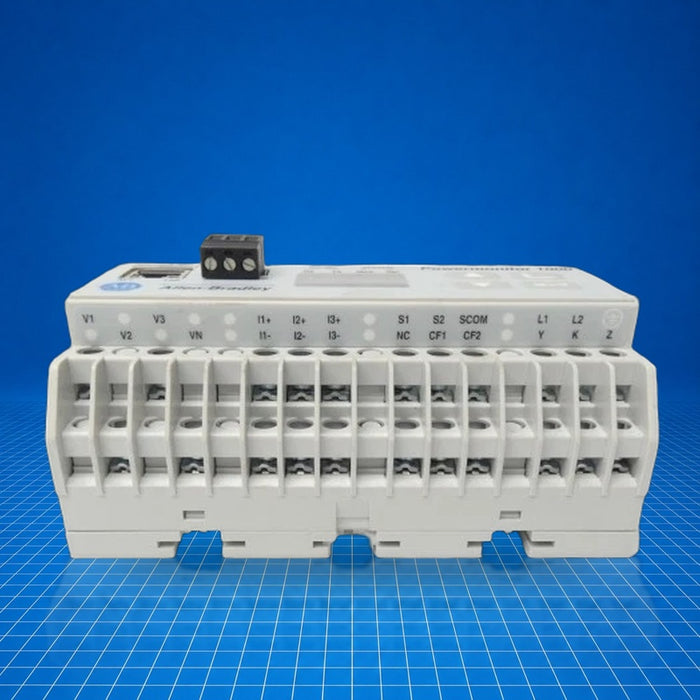

Terminal blocks
0.34…2.5 mm² (22-14 AWG), 75 °C copper only; torque 0.8 N·m (7 in-lb)
Dielectric withstand
2500 V (control power, voltage inputs, status inputs, KYZ output)
Certifications
UL ListedcULusCE
